Description

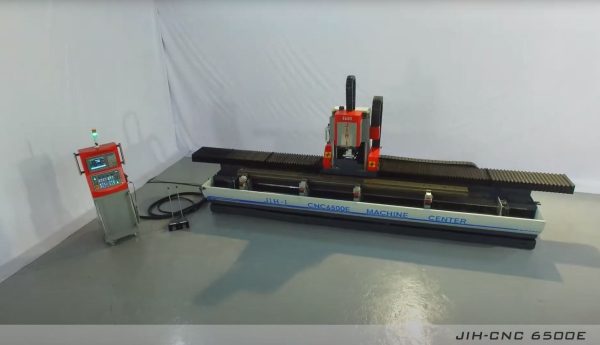

JIH-CNC E Machine Features:

  • Choice of X-axis travels: 3,500 /4,500 /5,500 /6,500mm.

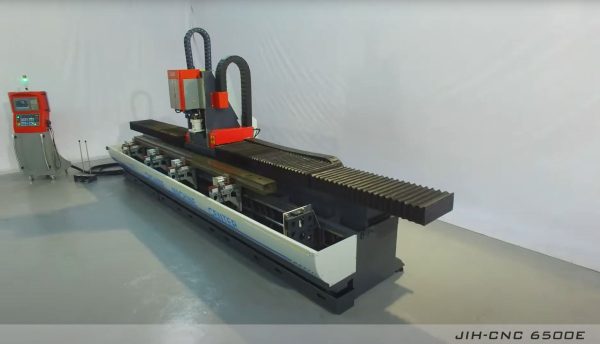

  • Table type: vise
  • ISO 30 spindle
    Spindle speed: 18,000 RPM
  • 8 tools carousel tool magazine.

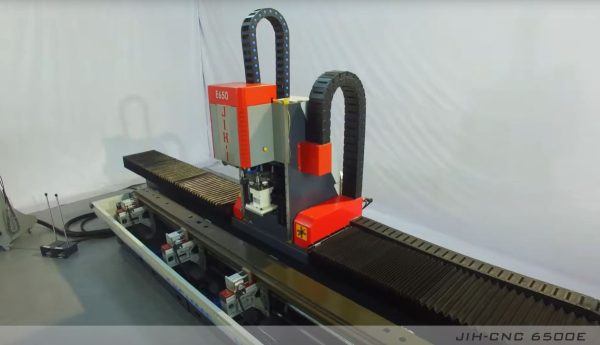

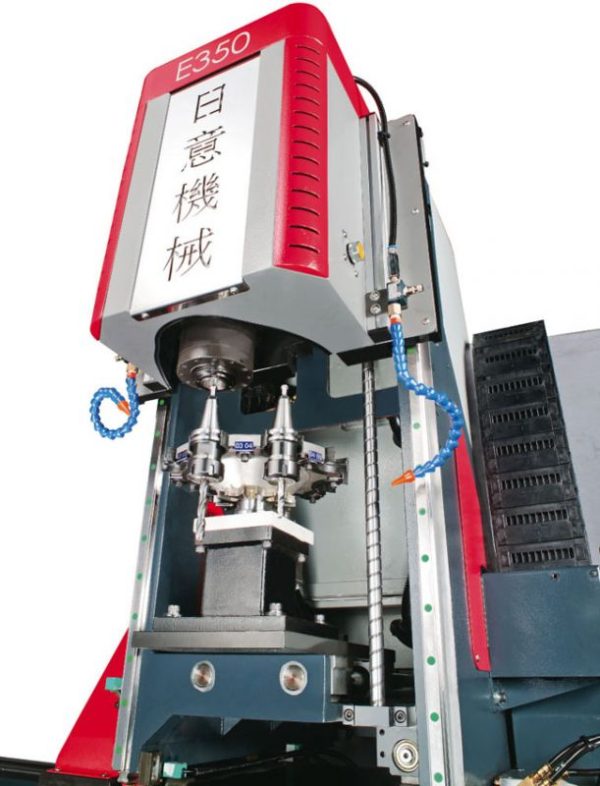

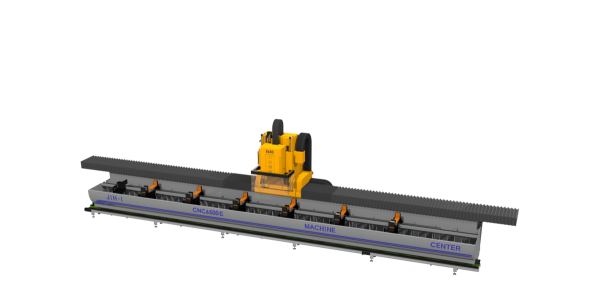

  • Traveling column design features increased machining efficiency and accuracy.

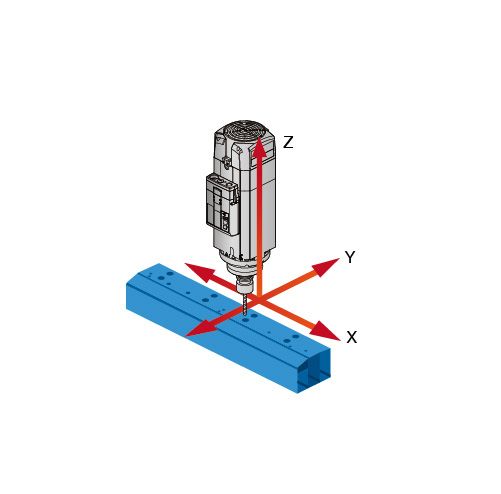

  • Three axes are equipped with high-precision linear guideways.
  • Y&Z axis ball screw is directly coupled with servo motor, high transmission efficiency and high accuracy.
  • Choice of controllers – PC based. (Mitsubishi, Fanuc and Siemens optional)
  • Multi-Machining for Short Work Pieces: For machining short work pieces, the operator may mount the work pieces on the table to machine simultaneously.

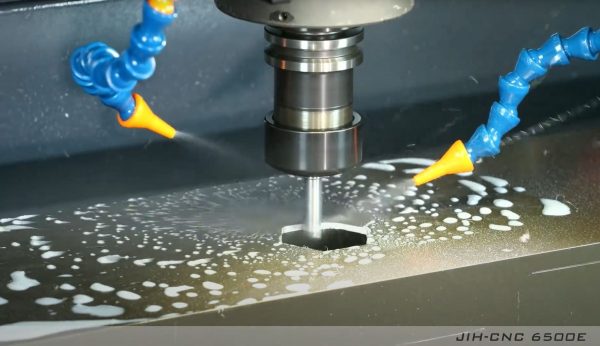

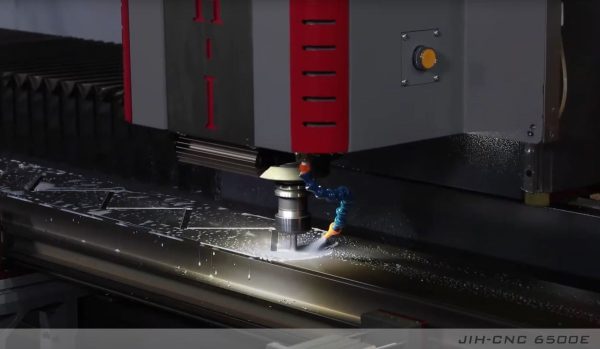

  • Extra Long Work Piece Machining: This machine is excellent for machining extra-long work pieces with only one setup. Suitable machining includes milling, drilling and tapping. With such machining nodes, you can save considerable time.

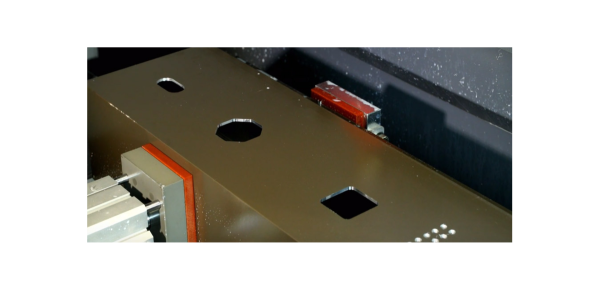

  • Different Parts Machining: With this mode of machining, greater efficiency can be obtained.

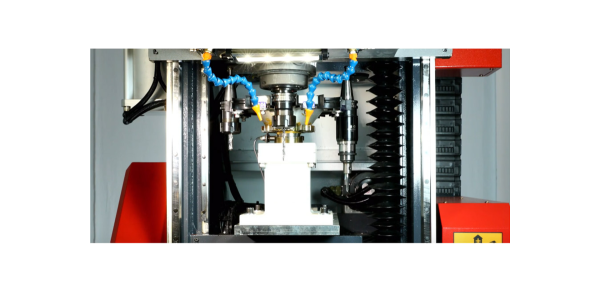

Automatic Tool Changer

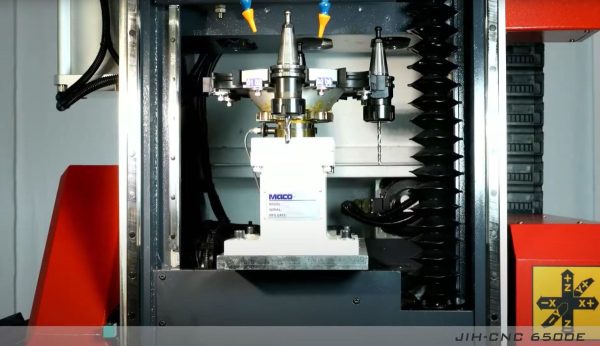

  • 8-tools carousel tool magazine.
  • Accommodates ISO 30 tools.
  • Tool selection method is bi-directional and random providing fast tool change and smooth motions.

Machine Dimensions

Model6500E3500E
Machine Dimensions LxWxH8,900×1,600×2,300mm5,900×1,600×2,300mm
Table6,500x300mm3,500x300mm

Applicable Materials

  • Aluminum
  • Plastic
  • Other non-ferrous metals

Applicable Industries

  • Aluminum doors and windows
  • Curtain Wall (glass wall)
  • Extruded aluminum
  • Fiber glass
ModelJIH-CNC6500E
Stroke
X-Axis Stroke3,500/4,500/5,500/6,500 mm(Opt.)
Y-Axis Stroke300 mm
Z-Axis Stroke200 mm
Distance from spindle nose to table surfaceMin. 150 mm, Max. 350 mm
Table
Table Typevise (1set/per meter)
Table Size300 x (3,500~6,500) mm
T-Slot(NO. x Pitch x Size)850 mm
Spindle
Spindle Speed18,000 R.P.M.
Spindle Motor10HP (7.5 kw)
Spindle Taper ConeISO 30
Feed Rate
Rapid feed rate (X/Y/Z)X:60 m/min, Y:24 m/min, Z:24 m/min
Servo Motors 3 AxesX: 1.3kw, Y: 1.3kw, Z: 1.3kw
Cutting Feed RateF:1~5,000 mm/min
Repeatability AccuracyX: ±0.03mm, Y: ±0.02mm, Z: ±0.02mm
ATC
Magazine Capacity8 Tools
Tood HolderISO 30
Max. Tool Diameter50mm
Dimensions
Required Pneumatic Pressure6 kgs/cm2
Machine Dimensions5,400~8,900 x 1,600 x 2,300 mm
Packing Dimensions5,600~9,100 x 1,700 x 2,300 mm
Machine Weight3,500~5,500 kgs
