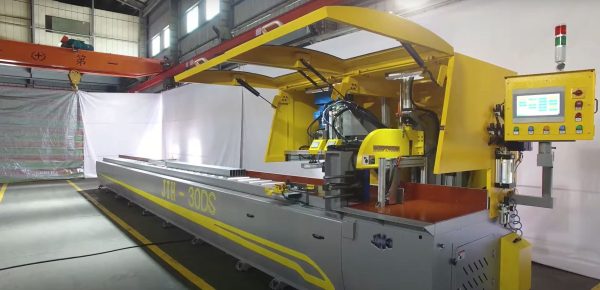

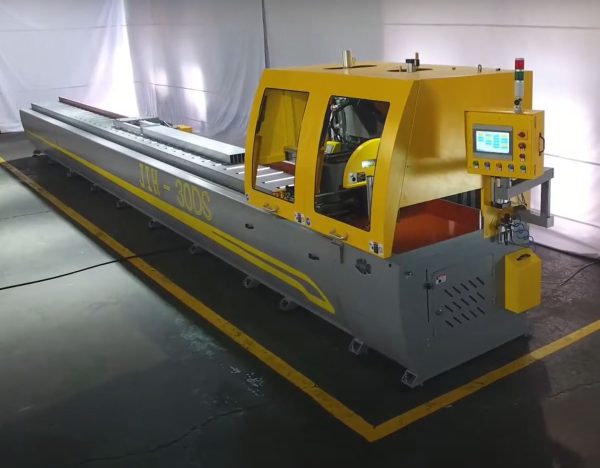

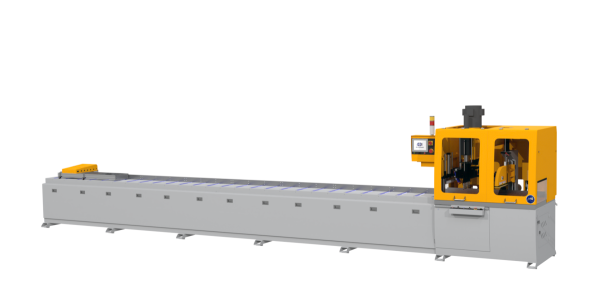

JIH- AUTO 30DSW – Automatic Drilling Sawing Machine

JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine
JIH- AUTO 30DSW - Automatic Drilling Sawing Machine

Description

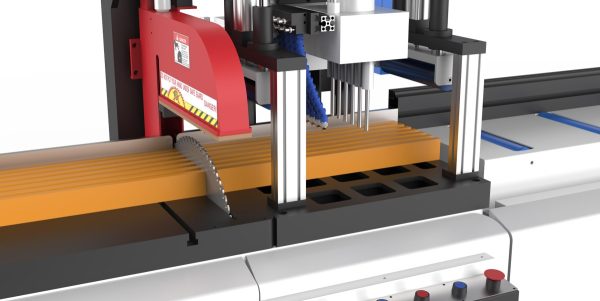

  1. Automatic drilling and sawing multi-function at one(drilling and cutting functions can be selected )

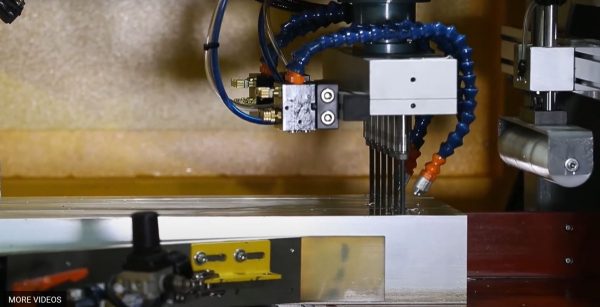

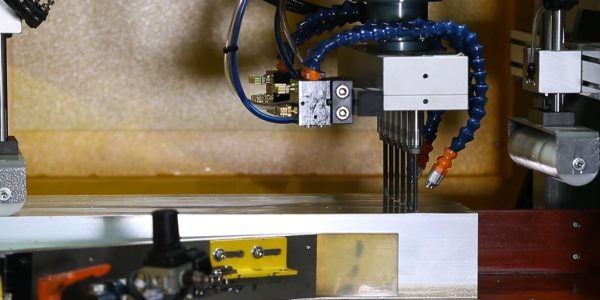

  2. Automatic drilling head is in position by servomotor with high accuracy
  3. Automatic feed stroke 6,500mm (opt 2,500~5,500mm)

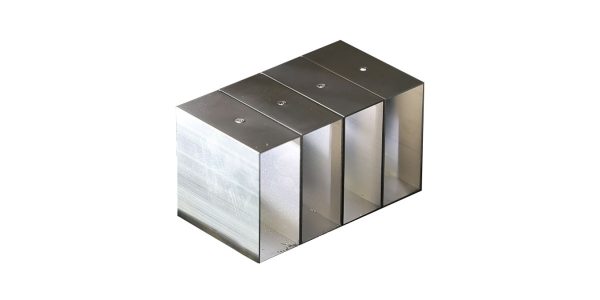

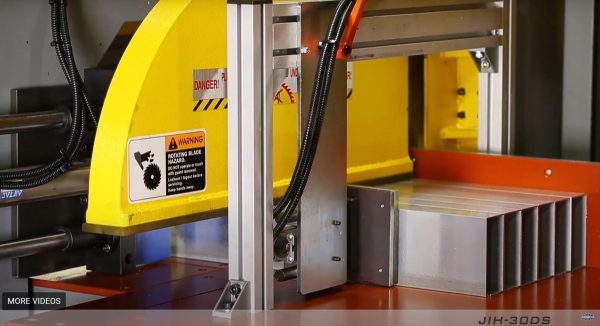

  4. High-performance and high-efficiency machines that can be cut in parallel several pieces at simultaneously in the processing range

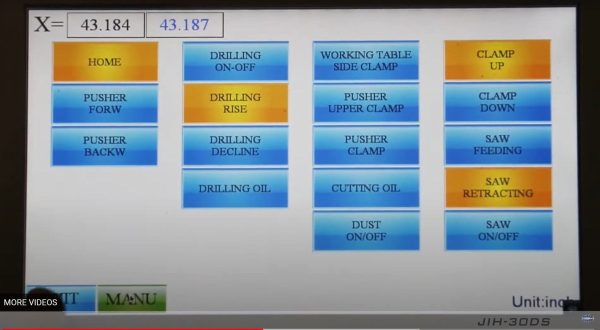

  5. PLC control with easy operation by touch screen
  6. Servo drive system is high precision gear rack
ModelJIH-AUTO30DSW
Servo Drive SystemHigh precision gear rack
AUTO3000 ACTUALLY MEASURE2.5~6.5M(opt.)
Cutting Capacity (HXW)160X160,100X500,50X550
(when moving the fence 90mm,the cutting capacity 230X230)
Saw Spindle Motor20HP
Drilling motor2HP
Feeding Speed10~40m/min
Servomotor1kw
Table Height From Floor1000mm
Touch-Sensing Screen9.7”
Saw Blade Size30”x50mm bore
Air Pressure4~6 kgs / cm2
Machine Dimensions (L x M x H)9,240×1,410×2,310mm(for actually 6.5m)
Packing Dimensions (L x M x H)9,340×1,510×2,470mm
Net/Gross Weight3,500/3,600KGS
