Specifications

Make

JIH

Model

24 L

Description

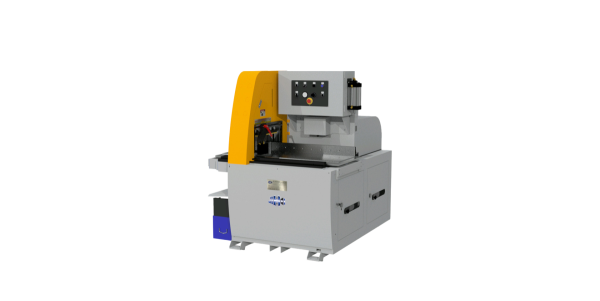

JIH – 24 L Type – Vertical Sawing Machine Series

ModelJIH – 24 L Type
Cutting Angle90 °

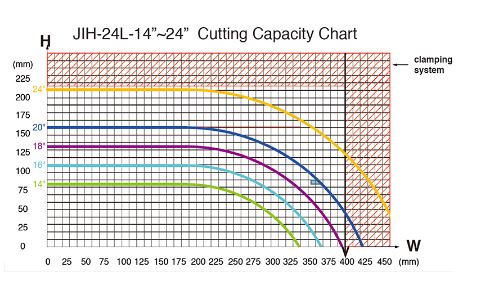

Cutting Capacity(HxW)80 x 400 ,130 x 350,  175×210, 200x200mm
Spindle Speed1,800~3,600 R.P.M.
Saw Blade Size18″, 20″, 24″ x 1″ bore
Table Area400x850mm
Table Height From Floor920mm
Motor15 HP (Gear Belt + Inverter)
Air Pressure4~6 kgs /cm2
Conveyor Length(Opt.)1~7 M
Machine Dimensions ( LxWxH )1,420×1,875×1,756 mm
Packing Dimensions ( LxWxH )1,540×1,995×1,876 mm
Net/Gross Weight1,700 / 1,900 kgs

Optional:

•CE Standard, Infeed, Outfeed Roller Table, Chip Collector, Horizontal Clamp, Hydraulic Feeding

•With Auto3000 for Automatic Positioning, Automatic Feeding (Push), Automatic Cutting, Saw Blade
