View Brochure

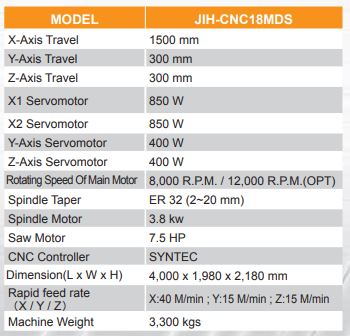

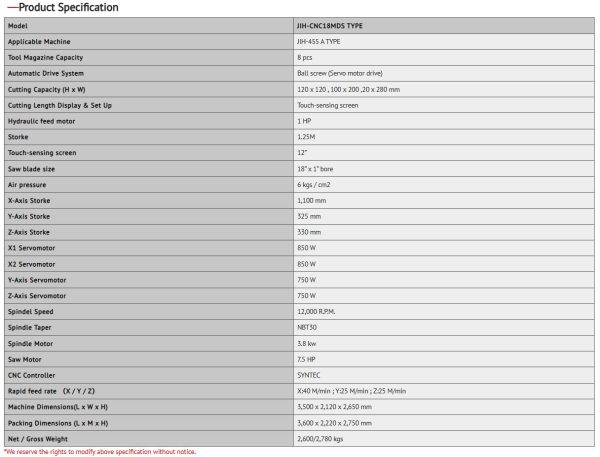

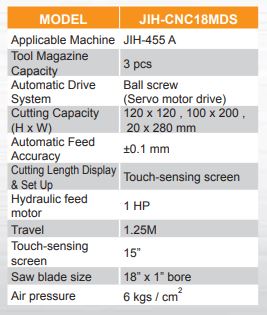

Specifications

Make

JIH

Model

CNC18MDS

Description

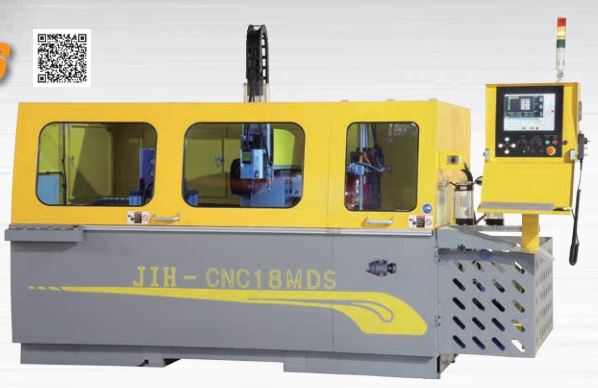

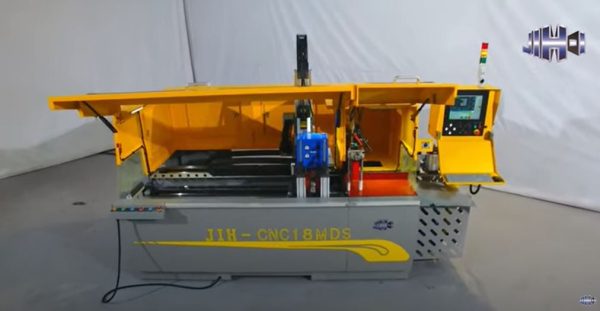

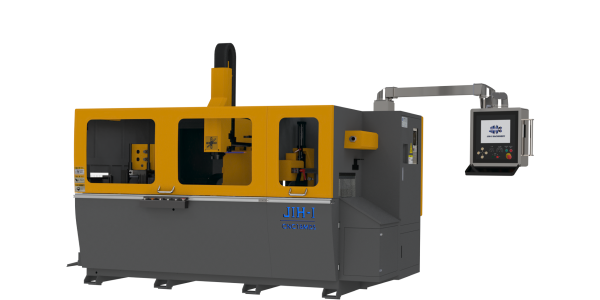

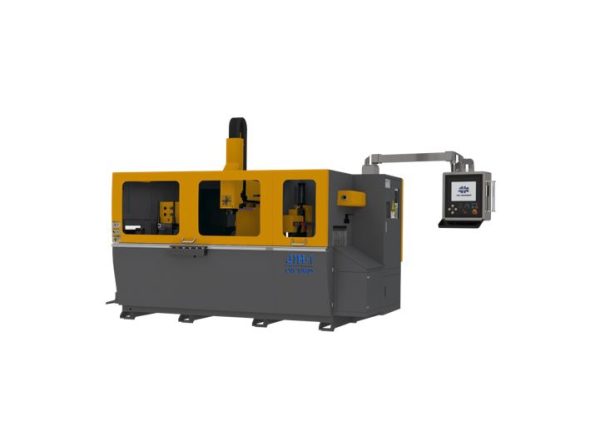

JIH – CNC18MDS – CNC Milling, Drilling, Tapping and Sawing Composite Machine

Description

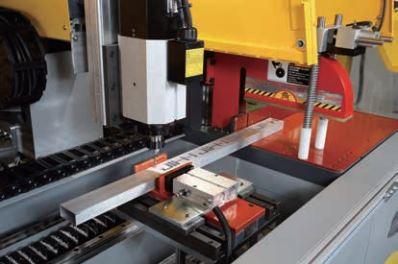

  • To complete all step of machining in one machine 18MDS that is the best choice for aluminum, light alloys and PVC.

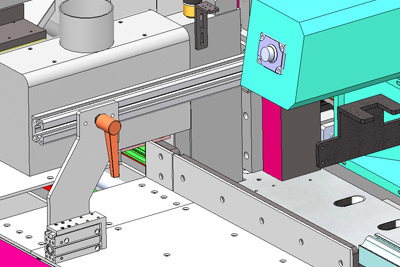

  • Complete with strong pusher system for clamping and feeding in the operating unit.
  • Performance high speed and high accuracy machining.
  • With auto tool change we could have more options for processing and also 18MDS is available to add an angular head for special working.

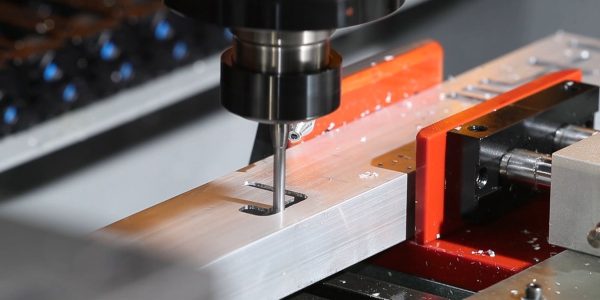

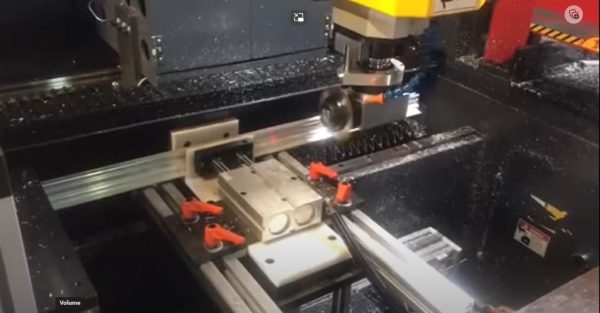

  • Automatic sawing, milling, drilling and tapping multi-function at one High pression high speed spindle for drilling, tapping and milling.
  • CNC control with easy operation by touch screen based with SYNTEC system.
  • According to process situation, separately choose sawing, drilling, milling and tapping at program.

18MDS provide 3 kinds of mode for processing:

  1. Cut Mode
  2. Long Part Mode
  3. Mill And Cut Mode.
  4. Tools Tool Magazine For More Convenience.

Schematic diagram

Applicable Materials

  • Aluminum
  • Plastic
  • Other non-ferrous metals

Applicable Industries

  • Public transportation, aluminum, light alloy profile processing.
  • Aerospace industry
  • Long-shaped aluminum profiles
  • Square tube profile cutting, drilling, slot milling.
  • Aluminum doors and Windows industry
  • Curtain wall (glass wall)
  • Extruded aluminum
