JIH – 18 D Type – Vertical Sawing Machine Semi-Automatic

JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic
JIH - 18 D Type - Vertical Sawing Machine Semi-Automatic

View Brochure

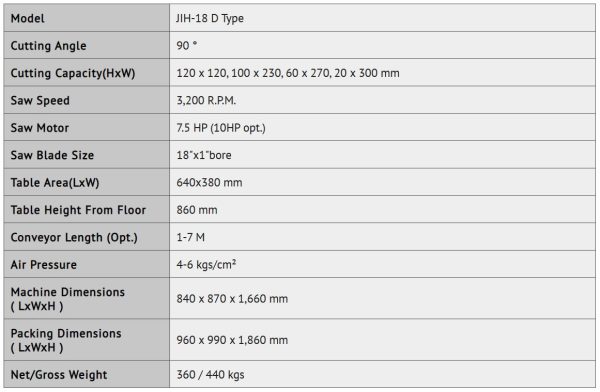

Specifications

Make

JIH

Model

18 D

Description

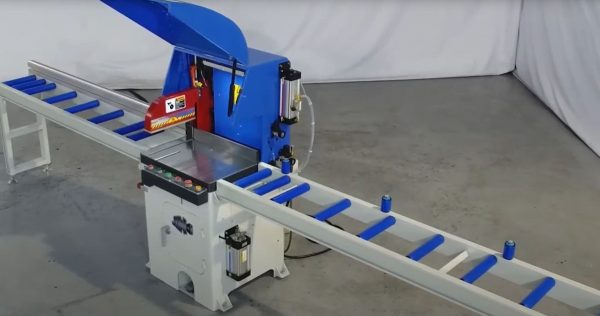

JIH – 18 D Type – Vertical Sawing Machine Semi-Automatic

Feature

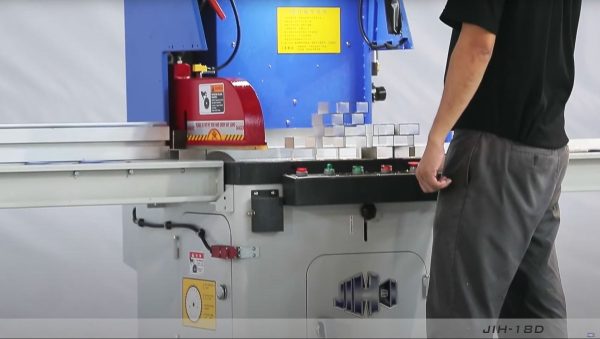

  • Simply step on the footswitch and the machine will safely and easily perform automatic clamping, automatic oil spraying and automatic cutting of the workpiece.
  • The hidden saw blade cuts from bottom to top. You can cut a single workpiece or multiple workpieces simultaneously.
  • Automatic oil mist spray during cutting provides cooling and lubrication effect.
  • The cutting feed is driven by a hydro-pneumatic cylinder for a very stable cutting speed.
  •  The coating inside the machine is baked at a high temperature of 200 degrees (powder coating), and the coating does not peel off and is resistant to bumping.
  • The machine can perform 90° cutoff or 45° cut using fixtures (optional).
  • Workpiece clamping pressure can be adjusted.
  • The independent hydro-pneumatic cylinder clamp makes the machine suitable for cutting solid materials and industrial aluminum extrusion.

Applicable Materials

Aluminum, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.

Standard Equipment

18” Saw Blade x 1pce, Replace Saw Blade Tool, Toolbox

Optional Equipment

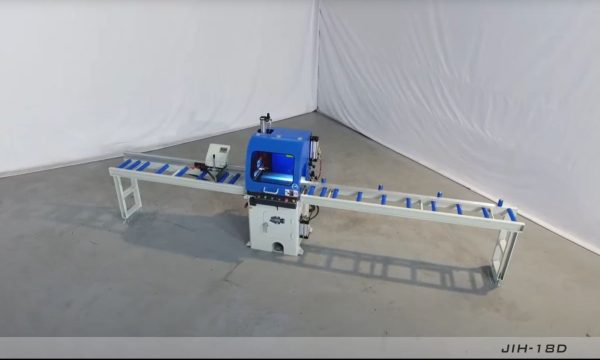

  • CE Standard, Infeed, Outfeed Conveyor, Chip Collector, Horizontal Clamp, Hydraulic Feeding, 45° Fixture
  • With Auto3000 for Automatic Positioning, Automatic Feeding (Pusher), Automatic Cutting functions.
