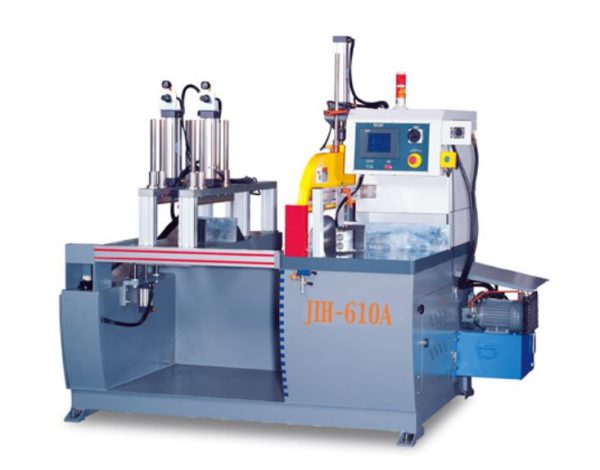

JIH – 610A & 910A – Automatic Sawing Machine Series

Feature

  1. Automation feed, positioning. oil spraying and sawing.
  2. Feed stroke 500mm (Reciprocating feed stroke up to any limit for length)
  3. Build-in sawblade performs upward cutting for increased safety.
  4. Ball screw is driven by servo motor for high accuracy.
  5. Equipped with NC control. PLC features extremely stable control performance.
  6. Feed is driven by hydraulic system, providing maximum stability of cutting.
  7. Two sets each of vertical clamps and one side clamp provided on the feeding system permits cutting of irregular work piece.
  8. The computer automatically records required time and quantity for each machining, providing convenient calculation of machining cost.
  9. During operation, the machine provides detection for lack of material. Available to set remain length to be cut.
  10. Work pieces can be stacked.
  11. Feed methods: 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed

Standard Equipment

  • 24” saw blade x1″ bore (or 36” saw blade x 50mm bore) x 1pce, tool box

Optional Equipment

  • 2.5 or 6 meters automatic feed device
  • Choice of precision ground rack or ball screw
  • Chip collector and suction hose
  • Infeed roller conveyor
  • Saw blade
  • Automatic air blast device
  • CE Standard, as JIH-455A



ModelJIH-610 A TYPEJIH-910 A TYPE
Main MachineJIH-24D TYPEJIH-36D Type
Automatic Drive SystemServomotor driven BallscrewServomotor driven Ballscrew
Max. Feed Distance (One Time)500mm (Reciprocating feed)500mm (Reciprocating feed)
Cutting Capacity(H×W)190 x 190 , 50 x 320, 40 x 420 mm
(Same as cutting capacity chart for JIH-610A TYPE)
300 x 300 , 200 x 460, 80 x 550 mm
(Same as cutting capacity chart for JIH-910A TYPE)
Cutting Length Display And SettingBy touch screenBy touch screen
Saw Speed1,800 R.P.M.900 R.P.M.
Saw Motor10 HP20 HP
Hydraulic Feed Motor1 HP1 HP
Servomotor1kw1kw (Opt. 1.5kw)
Saw Blade Sizes24″ x 1″bore36″ x 50 mm bore
Max. Load100 kgs100 kgs(Opt. 150kgs)
Table Height From Floor921 mm1,339mm
Touch-Sensing Screen7″7″
Air Pressure4~6 kgs/cm²4~6 kgs/cm²
Machine Dimensions(L×W×H)2,500 x 1,300 x 2,020 mm2,910 x 1,953 x 2,360 mm
Packing Dimensions(L×W×H)2,620 x 1,420 x 2,220 mm3,010 x 2,050 x 2,250 mm
Net / Gross Weight1,600 / 2,000 kgs2,950 / 3,450 kgs
