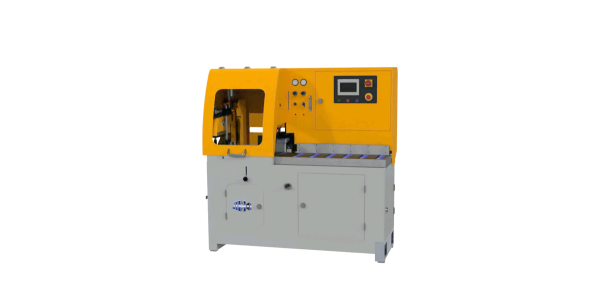

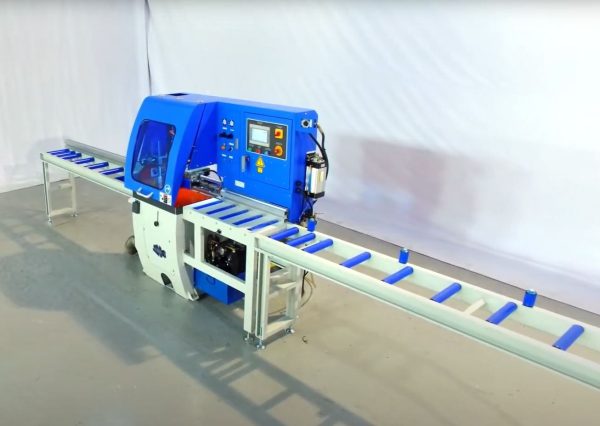

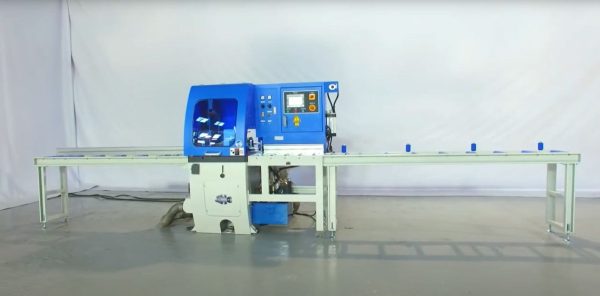

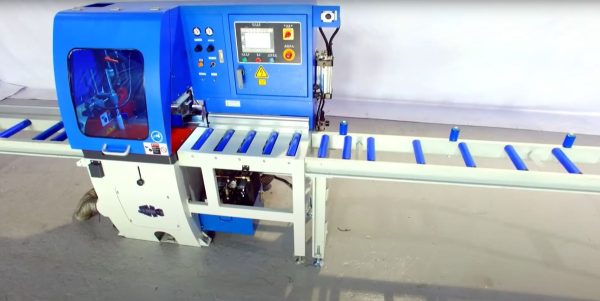

JIH – 18DB & 24DB Type – NC Auto Series

Product Description

  1. Automation feed, positioning. oil spraying and cutting.

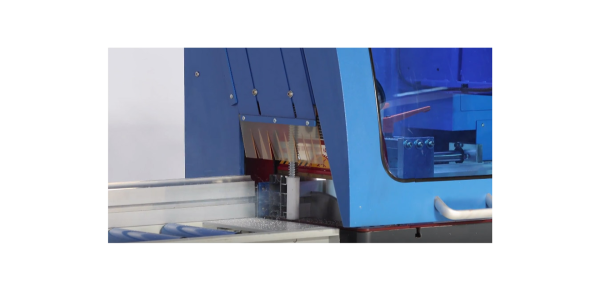

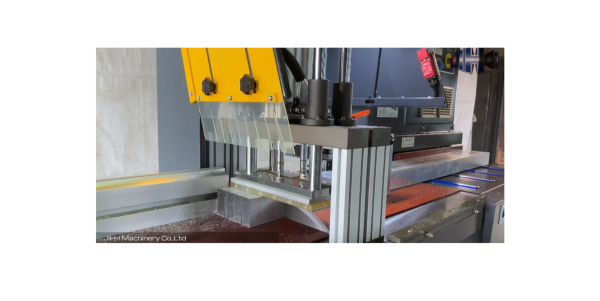

  2. Concealed sawblade performs upward cutting for increased safety.
  3. Ball screw is driven by servo motor for high accuracy.

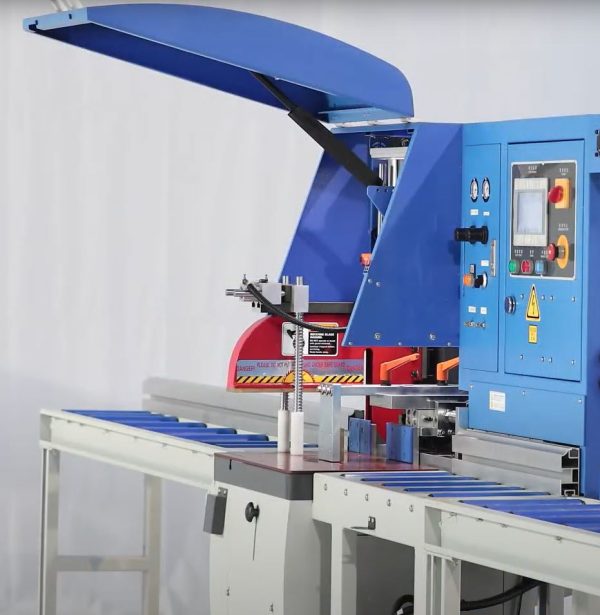

  4. Employ touch sensing screen for maximum operation convenience.
  5. Equipped with NC control. PLC features extremely stable control performance. Electronic control parts are CE certified.
  6. The computer automatically records required time and quantity for each machining, providing convenient calculation of machining cost.
  7. Small dimesions of the machine to save space.
  8. 18DB/24DB Feeding length 290mm/360mm in one cycle the feeding system is available recycle feeding.
  9. The feeding system is standard with hydraulic-pneumatic also we have option for hydraulic to make more powerful cutting.

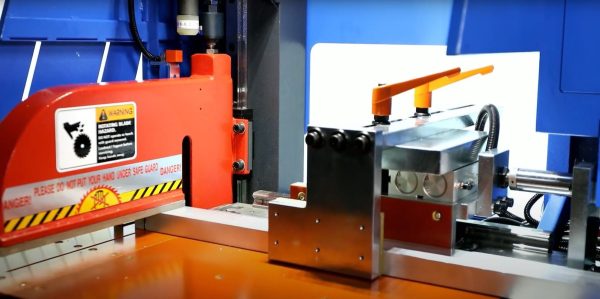

  10. Feed methods : 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed

Standard Equipment

18” Saw Blade x 1pce(for 18DB)/ 24” Saw Blade x 1pce(for 24DB)、Toolbox

Optional Equipment

CE Standard, Infeed, Outfeed Roller Table, Chip Collector, Horizontal Clamp, Hydraulic Feeding

ModelJIH-18D B TYPEJIH-24D B TYPE
Main MachineJIH-18 D TypeJIH-24 D Type
Automatic Drive systemServomotor driven BallscrewServomotor driven Ballscrew
Max. Feed Distance (one time)290 mm Unlimited recycle feed distance360 mm Unlimited recycle feed distance
Cutting Capacity (H x W)120×120, 100×200, 20×280 mm160×300, 50×420 mm
Cutting Length Display & Set UpBY touch screenBY touch screen
Saw Speed3,200 R.P.M.1,800 R.P.M.
Saw Motor7.5HP (Opt.10HP)10 HP
Hydraulic Feed Motor1 HP (Optional)1 HP
Servomotor400w750w
Saw Blade Size18″ x 1″bore24″ x 1″ bore
Max. Load80 kgs120 kgs
Table Height From Floor860 mm830 mm
Touch-Sensing screen7″7″
Air pressure4~6 kgs/cm24~6 kgs/cm2
Machine Dimensions (L x W x H)1,300 x 1,000 x 1,800 mm1,675 x 1,337x 1,863 mm
Packing Dimensions (L x W x H)1,420 x 1,100 x 2,000 mm1,775 x 1,437 x 2,063 mm
Net / Gross weight740 / 840 kgs980/ 1,080 kgs
