View Brochure

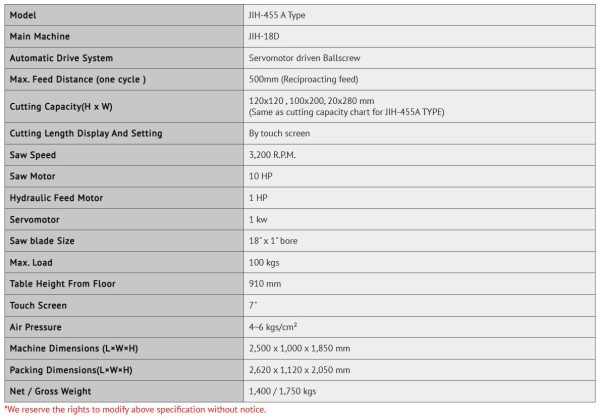

Specifications

Make

JIH

Model

455 A

Description

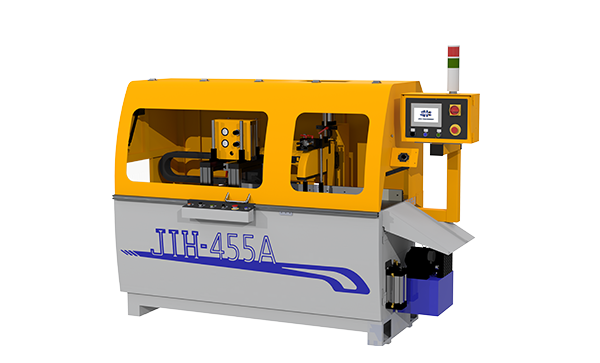

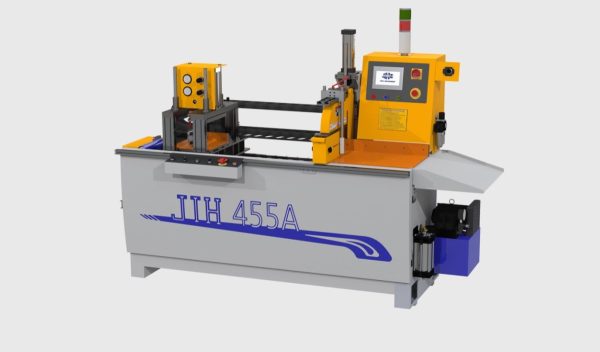

JIH-455 A – Sawing Machine Series – Automatic

Feature

  • Automation feed, positioning. oil spraying and sawing.
  • Automation Feed stroke 500mm. Reciprocating length is unlimited.

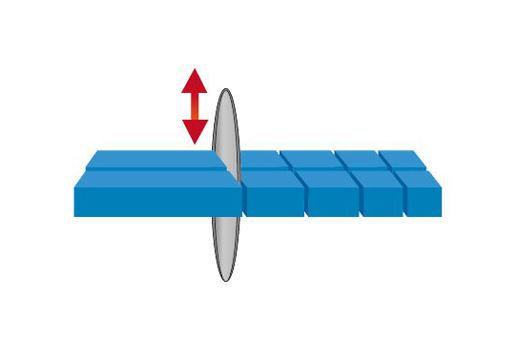

  • Build-in saw blade performs upward cutting for increased safety.
  • Ball screw is driven by servo motor for high accuracy.
  • Equipped with NC control. PLC features extremely stable control performance. Electronic control parts are CE certified.
  • Feed is driven by hydraulic system, providing maximum stability of cutting.

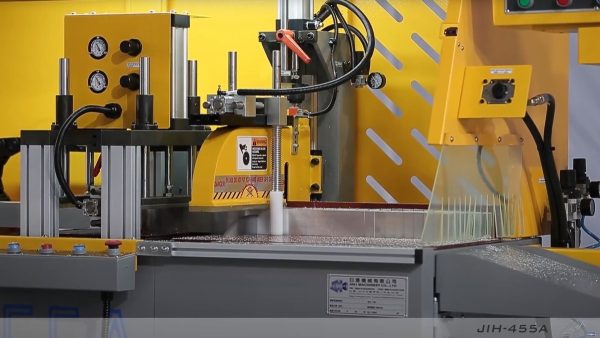

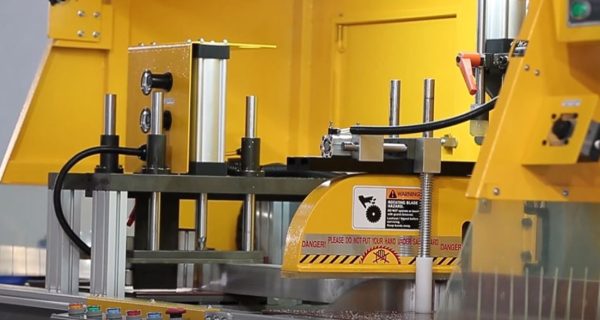

  • Two sets each of vertical clamps combined with one set of side clamps equipped on the feed system permit cutting of irregular workpieces or simultaneous cutting of several workpieces.
  • The computer automatically records the required time and quantity for each machining process, which provides convenient calculation of machining cost.
  • During operation, the machine provides detection for lack of material. Available to set remain length to be cut. The remaining length to be cut can be set.
  • Work pieces can be stacked.

Feed methods: 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed

The clamps on the feed table are suited for cutting irregular material without additional fixtures to fix the work piece.

Applicable Materials
Aluminum, brass, heat sink, PVC, plastic steel, bakelite, acrylic plastic, teflon, honeycomb board, wood and other non-ferrous metals.

Standard Equipment
18” Saw Blade x1” bore x1 pce. Toolbox
