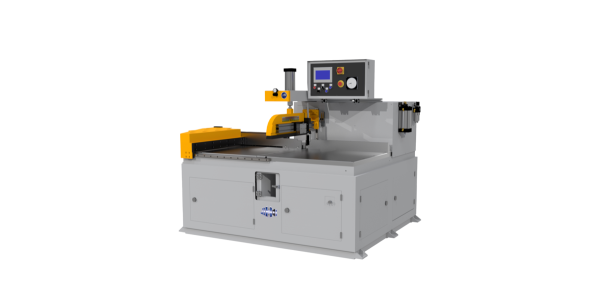

JIH-30L A/B Type – Sawing Machine (Horizontal)

JIH-30L A/B Type - Sawing Machine (Horizontal)
JIH-30L A/B Type - Sawing Machine (Horizontal)
JIH-30L A/B Type - Sawing Machine (Horizontal)
JIH-30L A/B Type - Sawing Machine (Horizontal)

Description

Features

  1. To operate the machine, simply treadle on the hand switch. the machine will automatically perform clamping and cutting for convenient operation. single or multiple work pieces can be cut simultaneously.
  2. Feed driven by hydraulic system, providing maximum stablity of cutting.

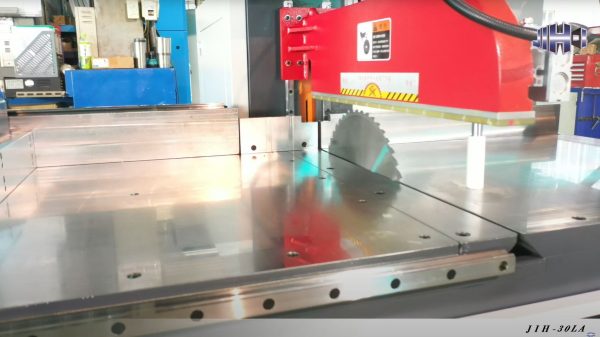

  3. Saw moves on linear guide way, that assures accurate and large cutting.

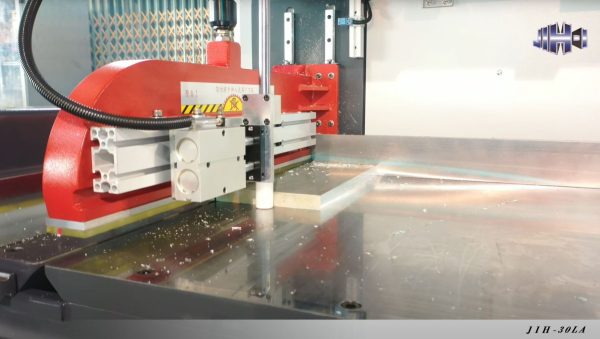

  4. Clamping system is controlled by an independent air cylinder and moves on linear guide way, that assures stable clamping.
  5. The clamping speed and cutting speed can be adjusted according to work piece type to achieve superior cutting performance ( Fast and stable cutting ). The clamping system clamps work pieces securely.
  6. Clamping pressure can be adjusted as desired to suit work piece type, that avoids damage on the work piece due to over-pressure.
  7. Saw blade feed stroke can be adjusted according to limit sensor and quickly return button for saving cutting time.
  8. Accurately controlled oil mist system greatly improves lubrication and cooling effect, while reducing trouble to a minimum.
  9. Adjustable clamping height.

Micro Switch (The Front And Rear Feed Limit)

To control sawblade traveling and adjust the position according to the actual width of processing materials to save traveling time.

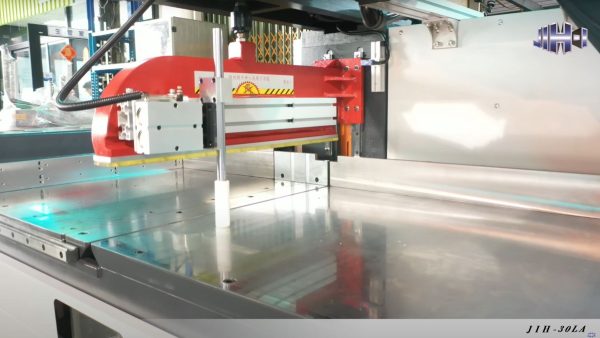

Clamping System

  • linear rail leading with high stability and the material is neat and tight.

Product Specification

Suitable For Cutting Various Materials

  • Aluminum, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.

Standard Equipment

  • saw blade x 1pcs、
  • replace saw blade tool

Optional:

  • CE Standard•Infeed,
  • Outfeed Roller Table
  • Chip Collector
  • Horizontal Clamp
  • Horizontal Feeding
ModelJIH – 30L A TypeJIH – 30L B Type
Table Height From Floor840mm900mm
Cutting Capacity
( W x H )
W500 x H120mm
W550 x H80mm
W700 x H20mm
W550 x H265mm
W850 x H130mm
W900 x H100mm
Saw Blade Sizes16″or18″ (bore25.4mm)28″or30″ (bore50mm)
Spindle Speed3,200 R.P.M.1,500 R.P.M.
Spindle Motor15 HP(Gear belt with inverter)15 HP(Gear belt with inverter)
Hydraulic Motor2 HP2 HP
Air Pressure4-6kg/cm24-6kg/cm2
Table Area950 x 700 mm1,710 x 1,090 mm
Machine Dimensions (L x M x H)2,050×1,750×1,750 mm2,300×1,800×2,200 mm
Packing Dimensions( L x W x H )2,150×1,850×1,850mm2,400×1,900×2,300mm
Net / Gross weight1,200 / 1,450 kgs1,800 / 2,100 kgs
