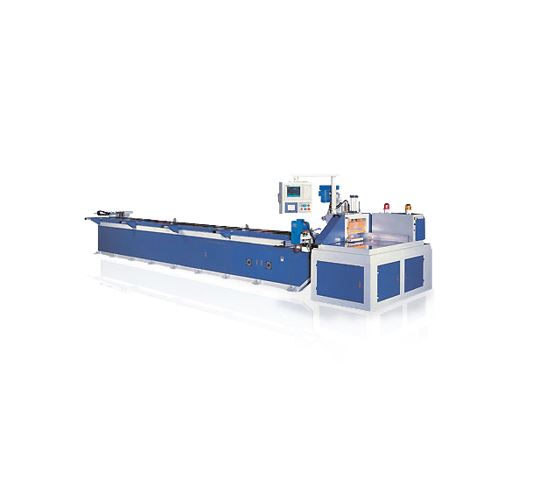

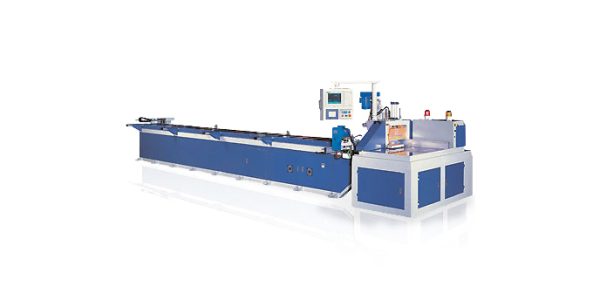

JIH – CNC 6000 Fully Automatic Drilling & Sawing Machine

Features

  1. Automatic drilling and automatic sawing.
  2. Automatic feed stroke 6000mm. Variable reciprocating length (Choice of 3000 or 1400mm )
  3. Saw blade horizontal working allows large cutting width.
  4. Ball screw is driven by servo motor for high accuracy. (Transmission through precision ground rack is available).
  5. Equipped with Mitsubishi: NC control. PLC features extremely stable control performance. Employs CE certified control components.
  6. Feed is driven by hydraulic system, providing maximum stability of cutting.
  7. Two sets each of held-down clamps and horizontal clamps provided on the feeding system permits cutting of irregular work piece.
  8. 100 sets of size memory capacity. Each set allows for setting 12 sizes.
  9. The computer automatically records required time and quantity for each machining, providing convenient calculation of machining cost.
  10. During operation, the machine provides detection for lock of material. Available to set tail length to be cut.
  11. Work pieces can be stacked.
  12. Maximum feed speed is of up to 60 m/min.
  13. Maximum cutting rate is 4 seconds for one cutting.
  14. Feed methods: 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed
  15. Variable spindle speed ( RPM ) Accommodates saw blade form 10″ to 24″
  16. Suitable for working module assembly equipment. ( Aluminum profile constructive system and modal structures system)

Product Specifications:

  • Saw blade feed motion diagram optional motion.

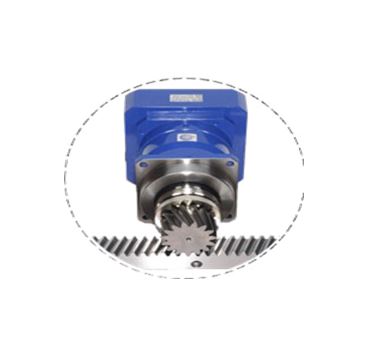

  • Transmission Device: Employs Germany imported precision ground rack with accuracy up to 0.02mm (suitable for 3- and 6-meter feed travel)

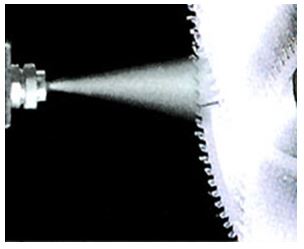

  • Vacuum Oil Mist Unit: The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for splashing. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of saw blade.
  • Suitable For Cutting Various Materials: Aluminium, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.
  • Standard Accessories: 24” saw blade x1pcs ( or specified size is available), tool box, Horizontal clamps of work table.
  • Optional Accessories:  3- or 6-meters automatic feed device Choice of precision ground rack or ball screw Dust collector and suction hose Infeed roller conveyor saw blade automatic air blast device.
  • Vacuum Oil Mist Unit: The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for splashing. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of saw blade.
ModelJIH-CNC 6000
Drive SystemServo motor drive with high precision ground rack
Control SystemCNC control
Max. Cutting Capacity
( H x W )
H200 x W400mm
Max. Automatic Feed Distance ( One Time )600mm( 1500 / 3000mm opt. )
Auto Feed Accuracy±0.1mm
Saw Spindle Speed1500 ~ 4500 R.P.M.
Saw Spindle Motor15HP / 11KW
Servo Motor1KW
Saw Spindle Invter Motor20HP / 15KW
Saw Feed DriveHydraulic ( motor 2HP )
Drilling Motor1HPx3
Drilling Type3 sides ( up & both sides)
Max. Drilling Capacity10mm( metal ) / 13mm( aluminum alloy)
Drilling Speedtwo speeds 5000 / 2400R.P.M.
Drilling Feed Drivepneumatic ( Hydraulic opt. )
Table Area535 x 743mm
Table Height From Floor946mm
Saw Blade Sizes10″ ~ 24″x1″ ( bore )
Air Pressure4~6kg / cm 2
Machine Dimensions
( L x W x H )
8000 x 2100 x 1800mm
Machine Weight4200kgs
