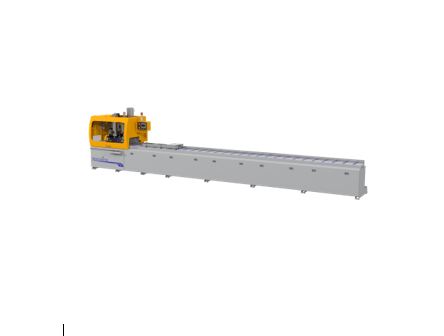

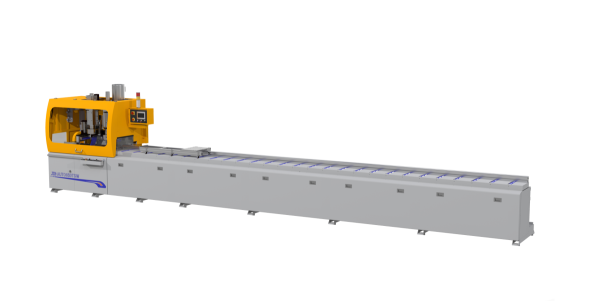

JIH – AUTO 18DTS – Automatic Drilling Tapping Sawing Machine

JIH - AUTO 18DTS - Automatic Drilling Tapping Sawing Machine
JIH - AUTO 18DTS - Automatic Drilling Tapping Sawing Machine
JIH - AUTO 18DTS - Automatic Drilling Tapping Sawing Machine
JIH - AUTO 18DTS - Automatic Drilling Tapping Sawing Machine
JIH - AUTO 18DTS - Automatic Drilling Tapping Sawing Machine
JIH - AUTO 18DTS - Automatic Drilling Tapping Sawing Machine

Description

AUTO 18DTS is design for the small part which need drilling , tapping and cutting .

  1. Automatic drilling,tapping and automatic sawing multi-function at one. ( Three functions can be selected)

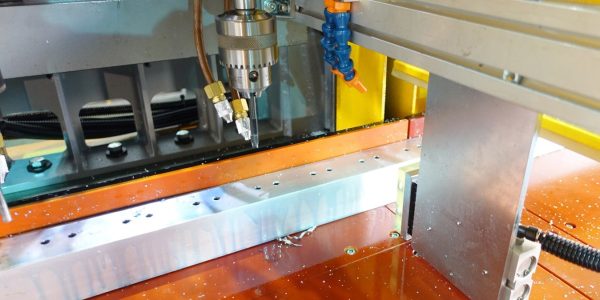

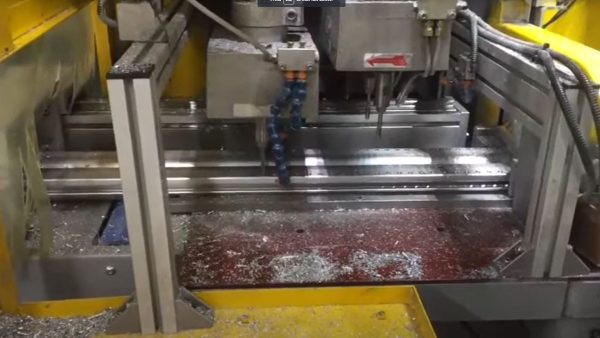

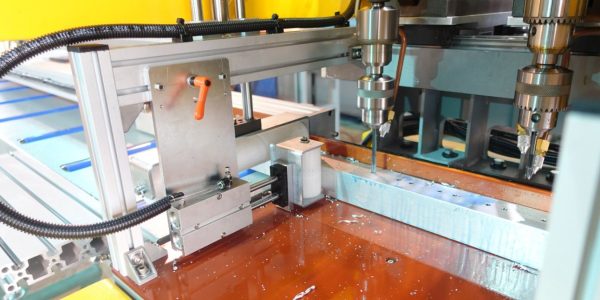

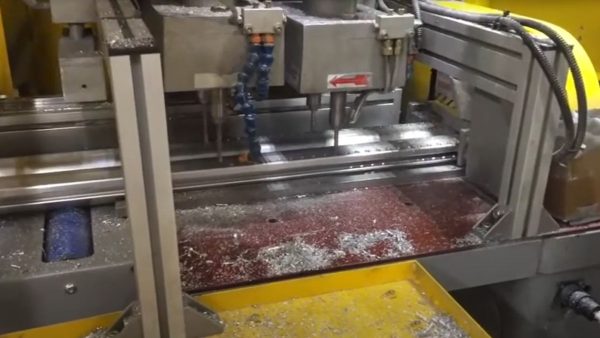

  2. Automatic drilling and tapping head is in position by servomotor with high accuracy.
  3. Automatic feed stroke 6,500mm. (opt. 2,500~5,500mm)

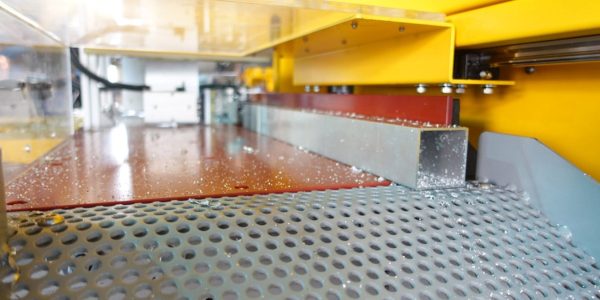

  4. High-performance and high-efficiency machines that can be cut in parallel several pieces at simultaneously in the processing range.
  5. PLC control with easy operation by touch screen.



ModelJIH-AUTO18DTS
Processing MethodsDrilling、Tapping、Sawing
Servo Drive Systembelt
AUTO3000 ACTUALLY MEASURE2.5~6.5M(opt.)
Cutting Capacity (HXW)120X120, 100X230
Saw Blade Size18”x1” bore
Saw Spindle Motor7.5HP
Drilling motor3HP
Drilling servomotor400W
Tapping motor3HP
Tapping servomotor400W
Max. Drilling Travel150mm
Feeding Speed10~40m/min
Servomotor750w
Table Height From Floor870mm
Touch-Sensing Screen9.7”
Air Pressure4~6 kgs / cm2
Main Machine Dimensions (L x M x H)2,530×1,350×2,230mm
Main Machine Packing Dimensions (L x M x H)2,630×1,450×2,300mm
Main Machine Net / Gross Weight830/900KGS
