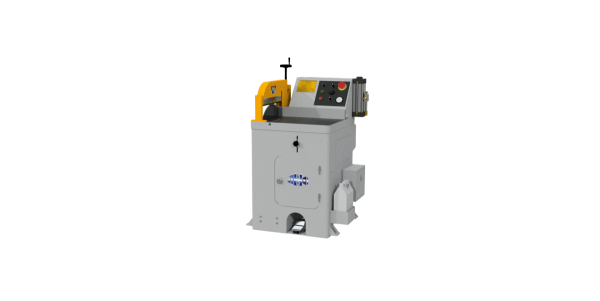

JIH – 18 C Type – Vertical Sawing Machine Semi Automatic

JIH - 18 C Type - Vertical Sawing Machine Semi Automatic
JIH - 18 C Type - Vertical Sawing Machine Semi Automatic
JIH - 18 C Type - Vertical Sawing Machine Semi Automatic
JIH - 18 C Type - Vertical Sawing Machine Semi Automatic
JIH - 18 C Type - Vertical Sawing Machine Semi Automatic

View Brochure

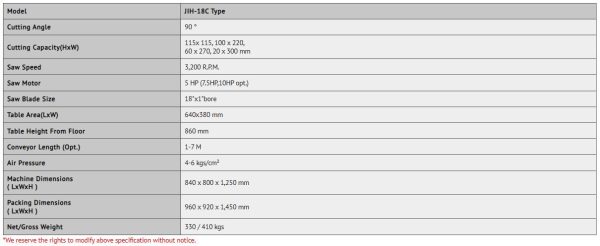

Specifications

Make

JIH

Model

18 C

Description

JIH – 18 C Type – Vertical Sawing Machine Semi Automatic

Feature

  • Simply treadle the foot switch, and the machine will perform automatic workpiece clamping, automatic oil spray, and automatic cutting, safely and without effort.

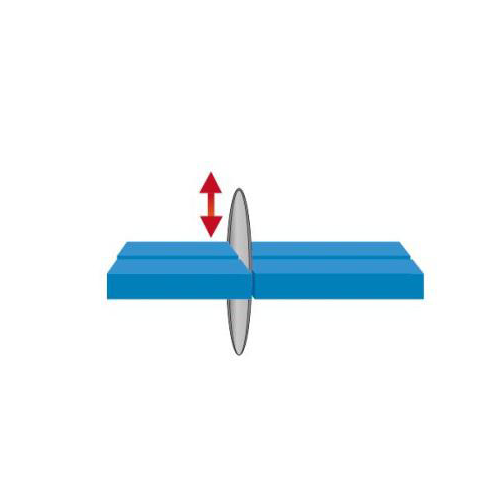

  • Concealed sawblade performs cutting from bottom to top. It allows for the cutting of a Single workpiece or multiple workpieces simultaneously.
  • Automatic oil mist spray during cutting provides cooling and lubrication effect.
  • Cutting feed is driven by a hydraulic-pneumatic cylinder for extremely stable cutting speed.
  • The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.
  • The machine can conduct 90° cut-off or 45° cutting with the use of a fixture (Optional).
  • Workpieces clamping pressure is adjustable.

Applicable Materials

00Aluminum, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.

Standard Equipment

18” Saw Blade x1pce, Replace Saw Blade Tool, Toolbox

Optional Equipment

  • CE Standard, Infeed, Outfeed Conveyor, Chip Collector, Horizontal Clamp, Hydraulic Feeding, 45° Fixture
  • With Auto3000 for Automatic Positioning, Automatic Feeding (Pusher), Automatic Cutting functions.
