View Brochure

Specifications

Make

JIH

Model

170

Description

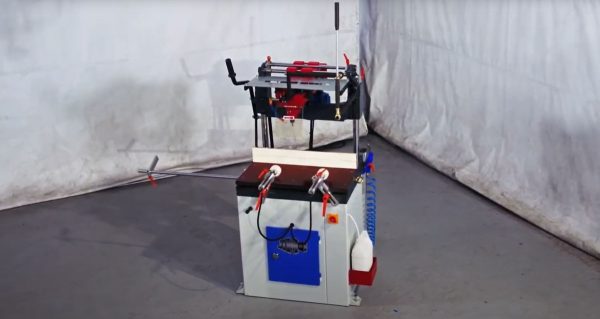

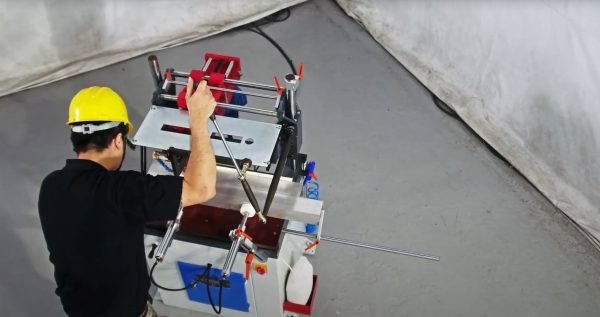

JIH-170 – Milling Machine

Features

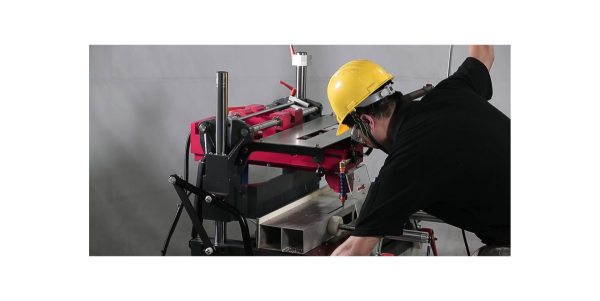

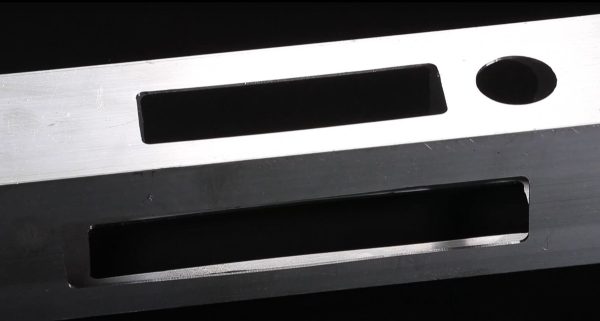

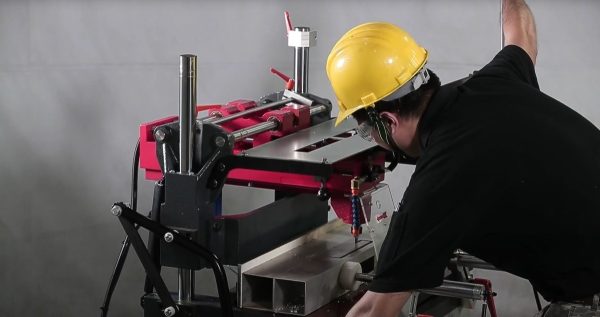

  1. Designed for irregular milling on irregular aluminum door and window frame.
  2. The right level control cross and longitudinal movement of milling head.
  3. The left level control vertical movement of milling head.
  4. Extremely smooth motion allows for effortless milling operations.
  5. Workpiece clamping is pneumatically operated.
  6. Coolant is conveniently controlled by simply pressing a switch on the left level.

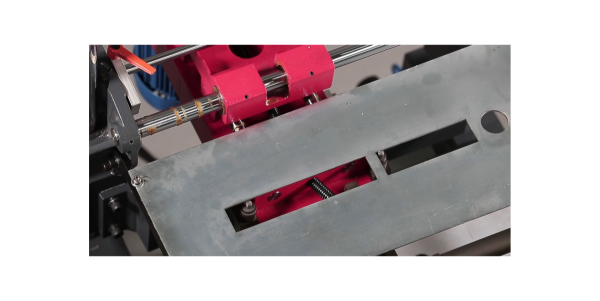

  7. Template for copy milling.

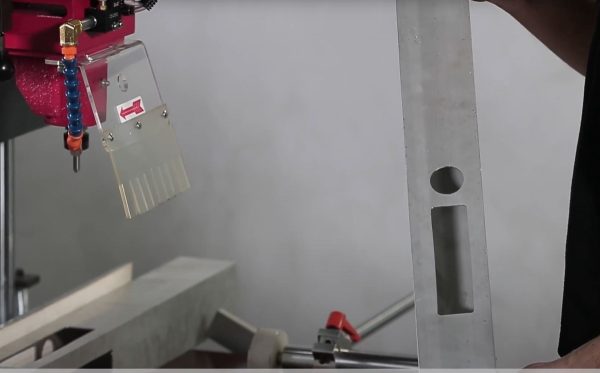

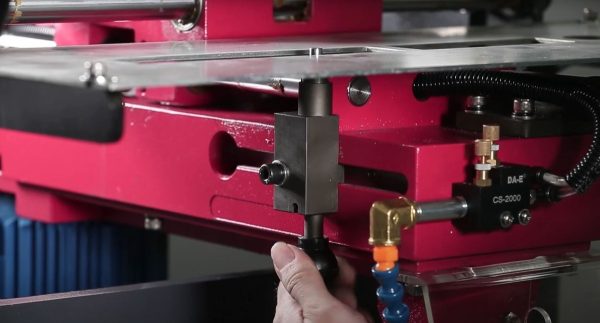

  8. Oil mist system for cooling the cutter.



MODELJIH-170 AJIH-170 B
X Travel280 mm340 mm
Y Travel120 mm240 mm
Z Travel150 mm180 mm
Table Area630 x 180 mm680 x 300 mm
Air Pressure6 kgs/cm26 kgs/cm2
Motor1HP (2HP)2HP (2HP)
Spindle Speed12,000 R.P.M.12,000 R.P.M.
Table Height From Floor815 mm808 mm
Chuck Size6,8,10,mm (opt.)6,8,10,mm (opt.)
Machine Dim.
(LxWxH)
780 x 630 x 1,660 mm990 x 900 x 1,660 mm
Packing  Dim.
(LxWxH)
900 x 750 x 1,860 mm1,110 x 1,020 x 1,860 mm
Net / Gross Weight156 / 220 kgs205 / 280 kgs
