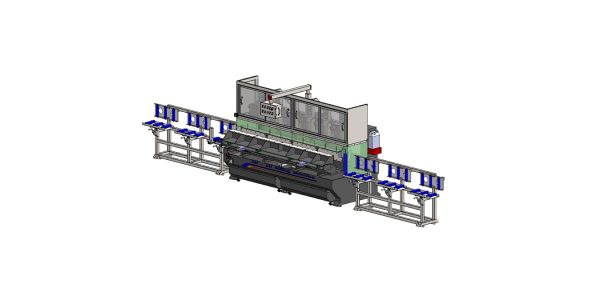

JIH-6D – Milling Machine
Specifications
| Make | JIH |
|---|---|
| Model | 6D |
Description
JIH-6D – Milling Machine

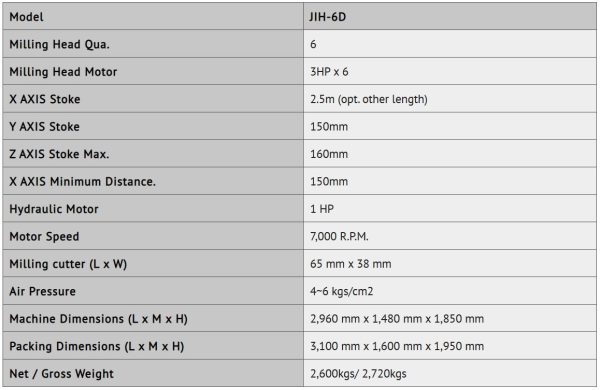

Product Specification
| Model | JIH-6D |
|---|---|
| Milling Head Qua. | 6 |
| Milling Head Motor | 3HP x 6 |
| X AXIS Stoke | 2.5m (opt. other length) |
| Y AXIS Stoke | 150mm |
| Z AXIS Stoke Max. | 160mm |
| X AXIS Minimum Distance. | 150mm |
| Hydraulic Motor | 1 HP |
| Motor Speed | 7,000 R.P.M. |
| Milling cutter (L x W) | 65 mm x 38 mm |
| Air Pressure | 4~6 kgs/cm2 |
| Machine Dimensions (L x M x H) | 2,960 mm x 1,480 mm x 1,850 mm |
| Packing Dimensions (L x M x H) | 3,100 mm x 1,600 mm x 1,950 mm |
| Net / Gross Weight | 2,600kgs/ 2,720kgs |
