Specifications

Make

JIH

Model

CNC Z

Description

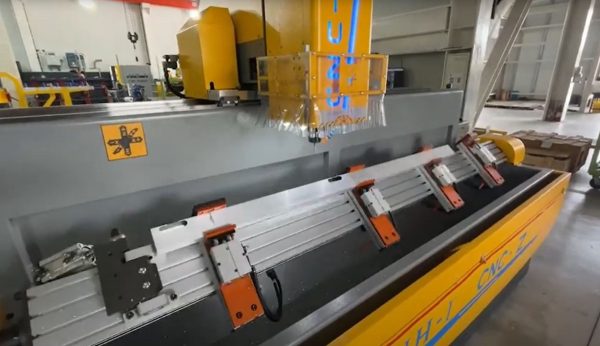

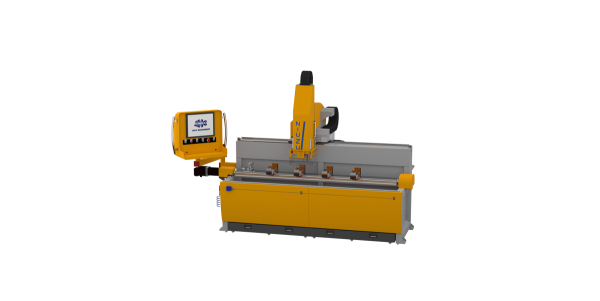

JIH-CNC Z Simple milling machine

  • Basic CNC machining configuration.
  • With simple and easy-to-understand operation.
  • Assist you in completing light and thin parts.

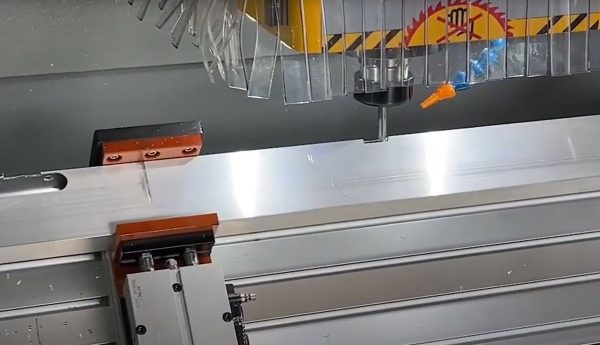

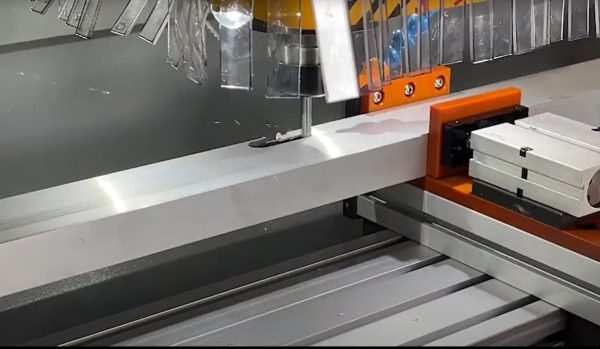

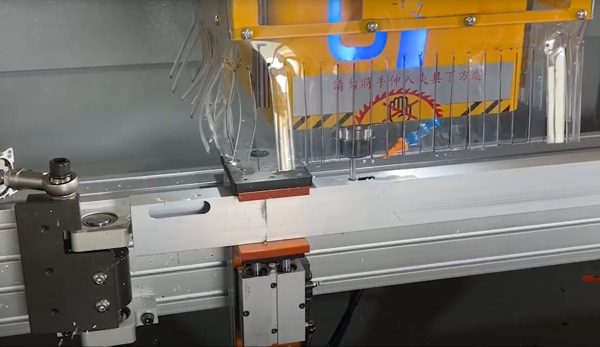

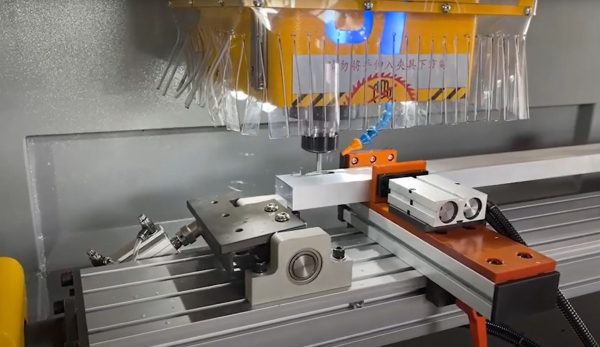

  • Milling holes, slots, hardware holes, combined holes.
  • Manual tool change.
  • Use the new generation PC-base.
  • Optional rotating work surface.
  • Suitable industries : aluminum doors and windows.
  • furniture industry. system cabinets. solar energy.(A axis)

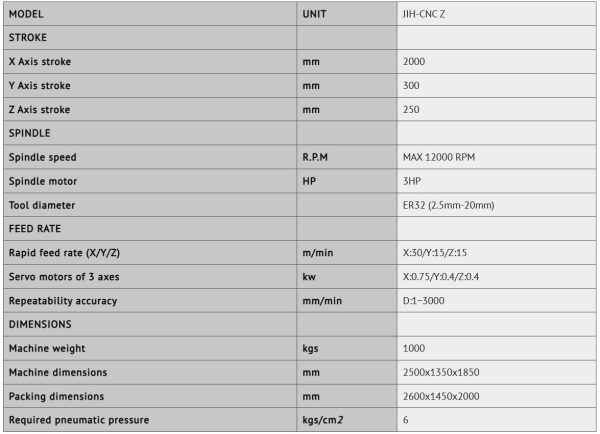

Product Specification

MODELUNITJIH-CNC Z
STROKE
X Axis strokemm2000
Y Axis strokemm300
Z Axis strokemm250
SPINDLE
Spindle speedR.P.MMAX 12000 RPM
Spindle motorHP3HP
Tool diameterER32 (2.5mm-20mm)
FEED RATE
Rapid feed rate (X/Y/Z)m/minX:30/Y:15/Z:15
Servo motors of 3 axeskwX:0.75/Y:0.4/Z:0.4
Repeatability accuracymm/minD:1~3000
DIMENSIONS
Machine weightkgs1000
Machine dimensionsmm2500x1350x1850
Packing dimensionsmm2600x1450x2000
Required pneumatic pressurekgs/cm26
