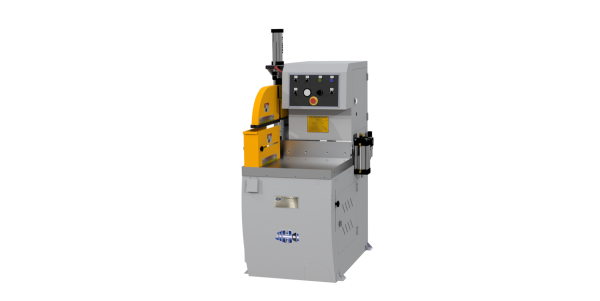

JIH-30 D Type – Sawing Machine Series

JIH-30 D Type - Sawing Machine Series
JIH-30 D Type - Sawing Machine Series
JIH-30 D Type - Sawing Machine Series
JIH-30 D Type - Sawing Machine Series
JIH-30 D Type - Sawing Machine Series
JIH-30 D Type - Sawing Machine Series

Specifications

Model

JIH-30 D Type

Description

Features

  1. To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
  2. Cutting feed is driven by a hydraulic-pneumatic cylinder for extremely stable cutting speed.
  3. While cutting, the oil mist splashes automatically for cooling and lubrication.
  4. Cutting feed is driven by a hydraulic pneumatic cylinder for extremely stable cutting speed.
  5. The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.

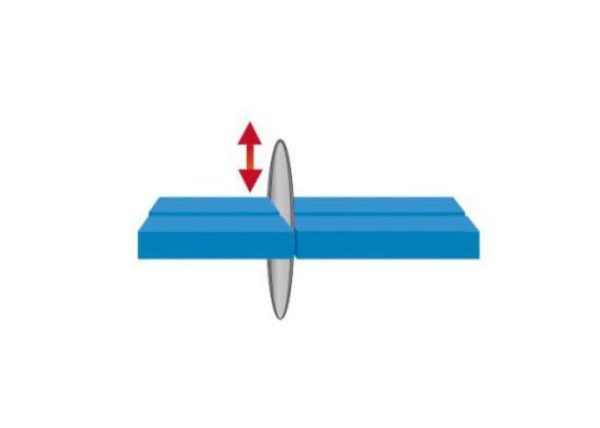

  6. The machine permits 90° cutting.
  7. Independent a hydraulic pneumatic cylinder for controlling workpiece clamping and cutting feed respectively.
  8. The clamping speed and cutting speed can be adjusted according achieve superior cutting performance (Fast and stable cutting). /clamps work pieces securely.
  9. Clamping pressure can be adjusted as desired to suit work piece t on the work piece due to over-pressure. to work piece type to The clamping system ype, that avoids damage.

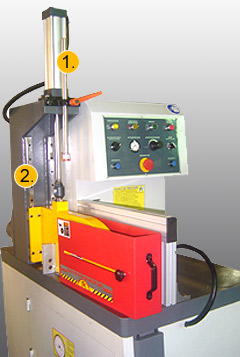

The operator may adjust clamping height and speed and cutting height and speed according to work piece size and thickness for saving waiting time.

  • Horizontal clamping for extremely stable clamping
  • Accurately controlled oil mist system. greatly improves lubrication and cooling effect, while reducing trouble to a minimum.
  • Clamping system is controlled by an independent air cylinder.
  • Clamping system moves on linear guide way, that assures stable clamping
  • The convenient door for saw blade replacing. Open the side door to replace the blade. The door can load the whole blade and there won’t be any inconvenience for the blade installation as those A typed machine
  • Chip Outlet Port: The chips are exhausted through this outlet port. It eliminates inconvenient cleaning for those chip deposited in the machine.
  • Vacuum Oil Mist Unit: The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for splashing. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of saw blad.

Applicable Materials

Aluminum, brass, heat sink, PVC, plastic steel, bakelite, acrylic plastic, teflon, honeycomb board, wood and other non-ferrous metals.

Standard Equipment

  • 30″ Saw Blade x 1pce
  • Replace Saw Blade Tool
  • Toolbox

Optional Equipment

  • CE Standard
  • Infeed, Outfeed Conveyor
  • Chip Collector
  • Horizontal Clamp
  • Hydraulic Feeding
ModelJIH-30 D Type (Hydraulic Feeding)
Cutting Angle90º

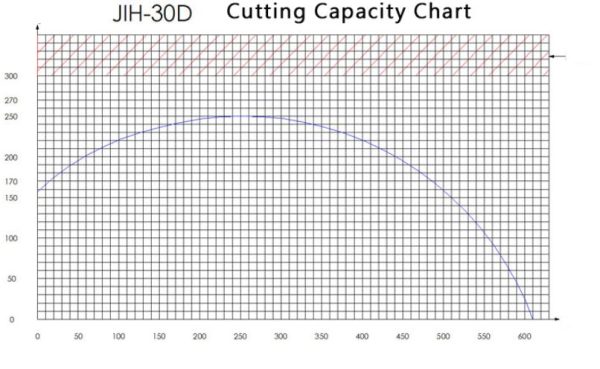

Cutting Capacity (H x W)160×160, 100×500, 50×550,
230×230(when the fence moving out 90mm)
Saw Speed1,200 RPM
Saw Motor20 HP (Gear Belt + Inverter)
Saw Blade Size30″×50 mm bore
Table Area(LxW)810×730 mm
Table Height From Floor887 mm
Conveyor Length (Opt.)1-7 M
Air Pressure4~6kgs/cm2
Machine Dimensions (L x W x H)1,386 x 1,520 x 2,065 mm
Packing Dimensions (L x W x H)1,500 x 1,620 x 2,100 mm
Net / Gross Weight1,160 / 1,300 kgs
