Specifications

Make

JIH

Model

CNC SD5

Description

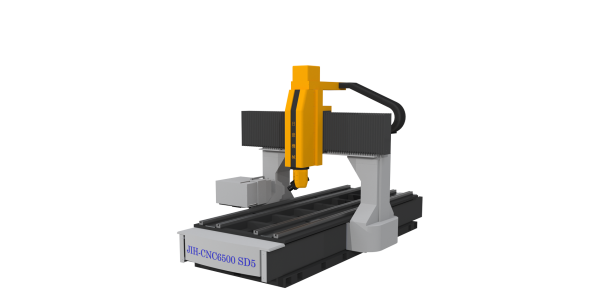

JIH-CNC SD5 Type Travelling Double Column 5 Axis Machining Centre

  • Fixed table in combination with travelling column and beam that makes the machine suitable for machining extra large work pieces.
  • Advanced 5-axes head is designed for any angular position.
  • X-axis travel is transmitted through pinion/rack and driven by European-imported gearbox, featuring high torque output, no backlash and high positioning accuracy (optional).
  • A-axis rapid traverse rate is available for 36 M/min, 50 M/min is available too(optional).
  • Three axes are equipped with P class high precision linear guide ways.
  • X, Y, Z-axis ball screws are directly coupled with servo motors. 24-tools magazine.
  • Choice of various controllers — Mitsubishi, Fanuc and Siemens.

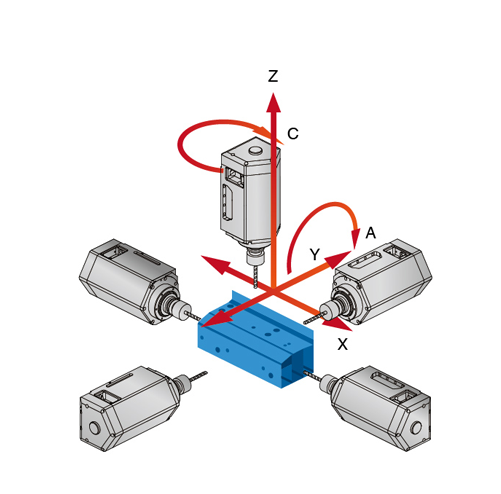

C Axes

A Axes

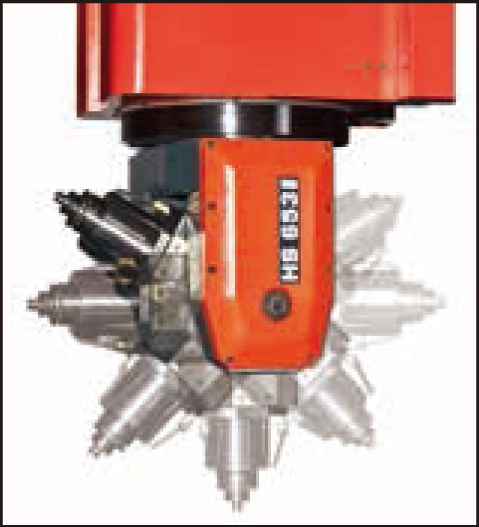

  • Rotary angle +/- 213°
  • Least indexing angle 1°

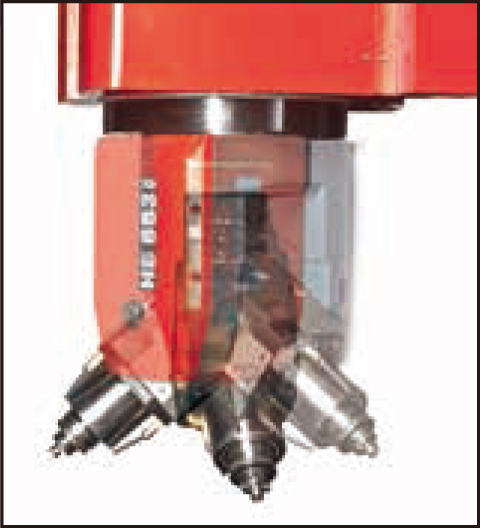

  • Tilting angle +/- 120°
  • Least indexing angle 1°

Applicable Industries

Applicable Materials

  • Wood model
  • Curtain wall (glass wall)
  • Extruded aluminum
  • Long material parts
  • Mould carving
  • Aluminum
  • Acrylic
  • Glass
  • Wood
ModelCNC6500SD5
LxWxH6,000×3,300×3,300mm
T-Slot3,700×1,690mm
  • Multi-Machining for Short Work Pieces: For machining short work pieces, the operator may mount the work pieces on the table to machine simultaneously.
  • Extra Long Work Piece Machining: This machine is excellent for machining extra-long work pieces with only one setup. Suitable machining includes milling, drilling and tapping. With such machining nodes, you can save considerable time.
  • Different Parts Machining: With this mode of machining, greater efficiency can be obtained.
  • PC-Base CNC Controller: Machines are equipped with Syntec PC-Base CNC controller, featuring easy to learn and easy to operate. Mitsubishi, Fanuc or Siemens controller is optional.
  • Laser interferometer: After each machine has been assembled, our experienced personnel applies a Laser interferometer to inspect and calibrate ball screw pitch error and backlash, positioning accuracy, as well as repeatability on the X, Y and Z-axes. Through the laser inspection process, we can guarantee high feed accuracy on three axes as well as overall machining accuracy.
  • Ball Bar Test: To assure the highest structural mechanical assembly accuracy, and to eliminate the reverse spike phenomenon, all Bar tested during the assembly processes. The test will calibrate the machine to the optimum status, thus extend the life time of axial ball screw and slideways.

5 Axes Head

A-axis tilting angle:±120°
C-axis swiveling angle:±245°
A-axis average torque output:500 Nm
C-axis average torque output:600 Nm
Weight:130 kgs
S1 motor:10kw – 16kw
S6 motor:12kw – 18kw
Maximum speed:24,000 R.P.M.

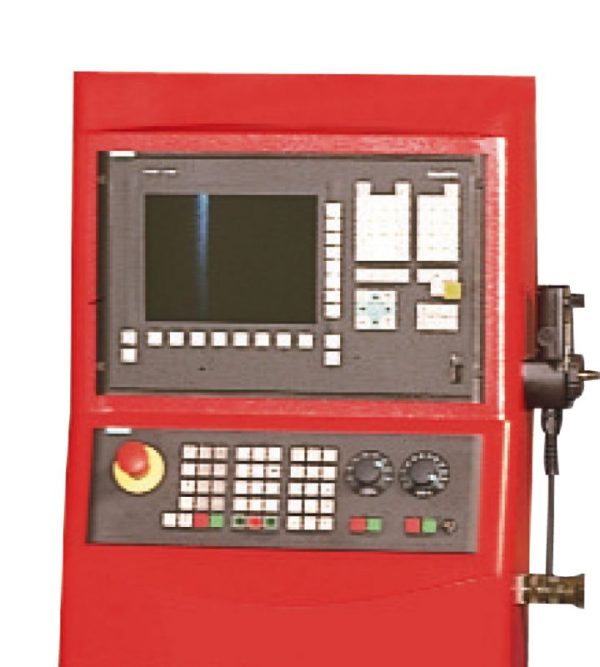

Siemens 840D

Single block processing time: 4 ms.
Date memory: 2GB
HMI:SINUMERK operation.
Includes dynamic element and cycle-support of SINUMERK program GUIE.
Tool and Zero Point Management:
With tool life monitoring and graphic display. Also, including tools management for various types of tools.
Program management: Equipped with SINUMERIK technical cycle and G code, and program GUIDE for program setting including dynamic element and quick browsing of graphics.
Simulation: Employs top view and other view and other views of drawings for simulating machining processes.
Single Block Search: for moving program to any section with or without calculation and execute program from this position to continue machining.
Technical Cycle :A standard turning and milling package include any work piece contour and geometrical calculator(optional).

Product Specification

ModelJIH-CNC 6500 SD5
Stroke
X-Axis Stroke3,700 mm (Opt.6,500 mm)
Y-Axis Stroke1,950mm (Opt.other stroke)
Z-Axis Stroke700 mm (Opt.other stroke)
C-Axis Stroke±213°
A-Axis Stroke±120°
Distance from spindle nose to table surface(Vertical)20 mm
Distance from spindle nose to table surface(Horizontal)245 mm
Table
Table size1,700 x 3,600 mm
Max. Loading Capacity3,000 kgs
Spindle
Spindle Speed24,000 R.P.M.
Motor18kw
TaperHSK F63
Feed Rate
Rapid Traverse(X/Y/Z)X:36m/min, Y:40m/min, Z:40m/min
Cutting Feed RateF:1~5,000 mm/min
3-Axes Servo MotorsX: 7.75 kw x 2pcs, Y: 7.75 kw, Z: 7.75 kw
ATC
Magazine Capacity24 Tools
ATC TypeArm type
Max. Tool Length300 mm
Max. Tool Diameter100 mm
Max. Tool Weight7 kgs
Required Pneumatic Pressure6 kgs/cm²
Machine Dimensions6,000 x 3,300 x 3,300 mm
Machine Weight20,000 kgs
