JIH-CNC 300A (Optional Additional C-Axis) CNC Machining Centre
Specifications
| Make | JIH |
|---|---|
| Model | CNC 300A |
Description

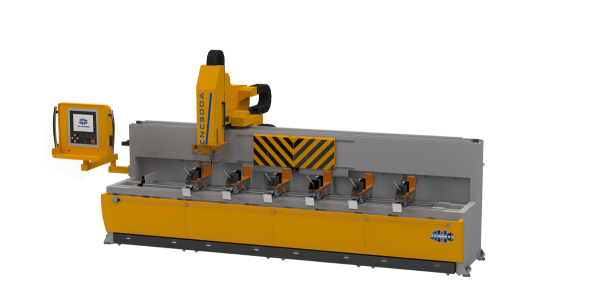

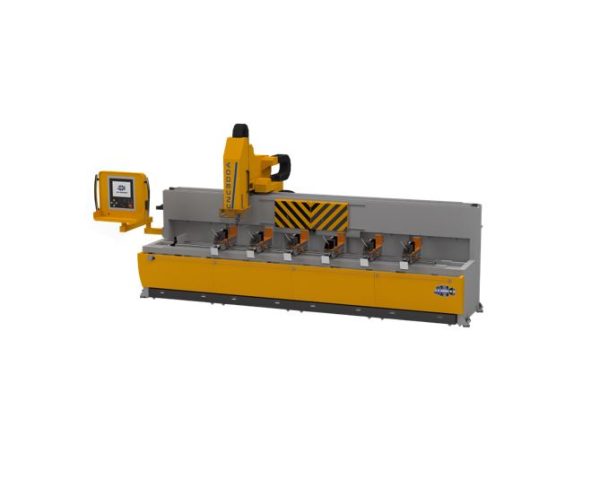

JIH-CNC 300A (OPT.Additional C-Axis)
- X-axis travel options: 3,500/ 4,500/ 5,500/ 6,500 mm
- Workbench type: fixture
- Spindle speed: 18,000
- Automatic tool change: 6 tools
- Moving column structure: high-efficiency, high-precision machining
- All three axes adopt advanced precision line rails
- Y&Z axis ball screw with servo motor for direct drive, no belt backlash problem, high transmission efficiency, high positioning accuracy
- New generation PC-base, Mitsubishi, Fanuc, Siemens controllers can be selected
- Optional: Rotary C-axis
Product Specification
| Model | JIH-CNC 300A (OPT.Additional C-Axis) |
|---|---|
| Stork | |
| X Axis stroke | 4,500 mm |
| Y Axis stroke | 350 mm |
| Z Axis stroke | 250 mm |
| Table | |
| Table type | VISE(1set/per meter) |
| Table size | 250 x 4,500 mm |
| Table height from floor | 1,140 mm |
| Spindle | |
| Spindle speed | 18,000 rpm(Opt.24,000) |
| Spindle motor | 5.5kw(7.5hp) (Additional C-Axis 6.6kw(8.8hp)) |
| Spindle taper cone | NBT30(Opt.ISO30) (Additional C-Axis HSK63F) |
| Feed Rate | |
| Rapid feed rate(X/Y/Z) | X:100,Y:36,Z:36 |
| Servo motors of 3 axes | X:1,Y:0.75,Z:0.75,C:0.4 |
| Cutting feed rate | F:1~5,000 |
| ATC | |
| Magazine capacity | 5Tools+1(4sides 90° Degree head) |
| Tool holder | NBT30(Opt.ISO30) (Additional C-Axis HSK63F) |
| Dimensions | |
| Machine weight | 3,800 kgs |
| Machine dimensions | 4,332 x 2,237 x 2,208 mm |
| Packing Dimensions | 4,700 x 2,300 x 2,240 mm |
| Required pneumatic pressure | 6 kg/cm2 |
