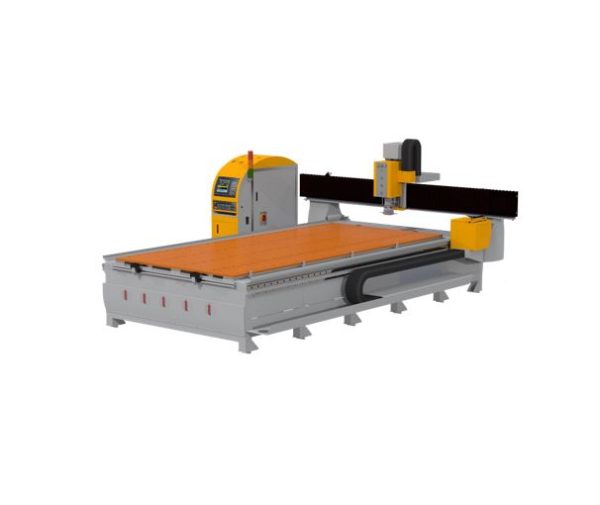

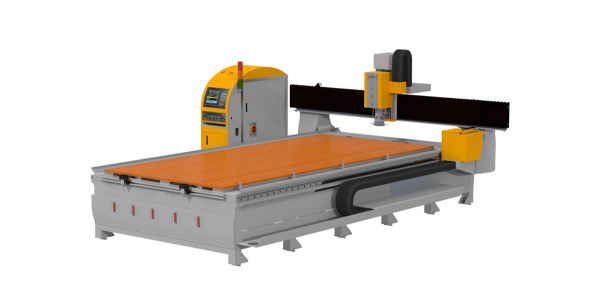

JIH-CNC 48B Type 3 Axis CNC Router

Applicable Industries

  • Casting aluminum door
  • Casting copper door
  • Aluminum with PVC panel
  • Any kind of panel, acrylic or non-ferrous metal etc……
  • Wooden mould carving, solid wood door, plate-type material
  • Bakelite, glass fiber, aluminum plate, solid wood, lettering, carved, to fit customized furniture, home improvement
  • Aluminum template processing

Machine Features

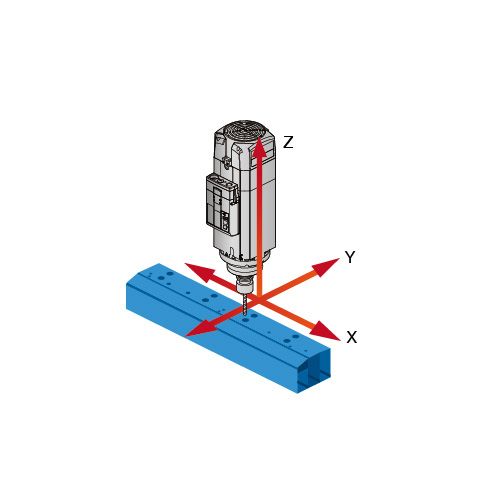

  • Italian spindle with high frequency, power 8KW, low noise and long life.

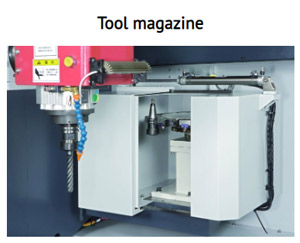

  • High-efficiency carousel type automatic tool change system
  • Tempering treatment,strong body won`t be out of shape, high rigidity (with customized table)
  • Automatic tool length measure system, automatic position system

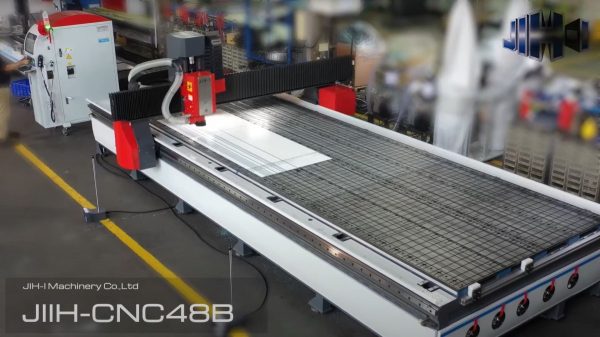

  • X axis motor drive from both side, make it working stable
  • 3 axis automatic lubrication
  • Oil mist cooling

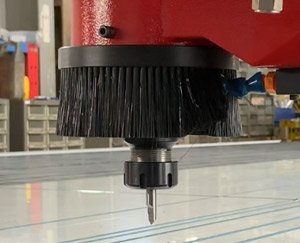

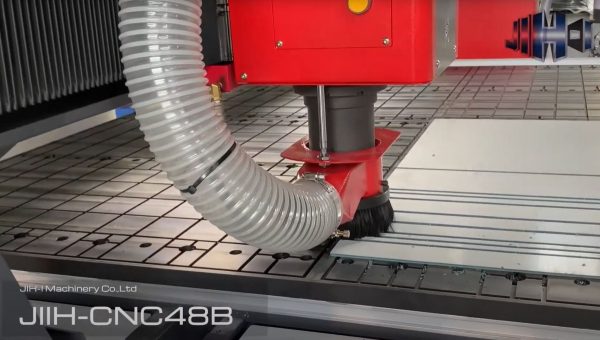

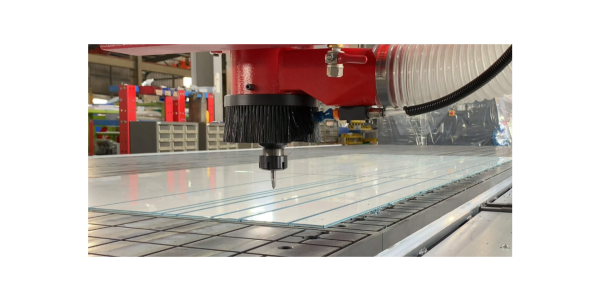

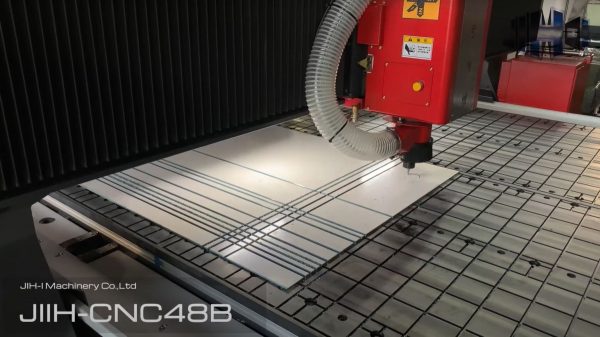

  • Spindle head dust collector

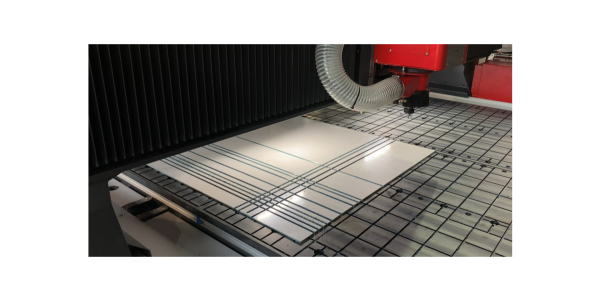

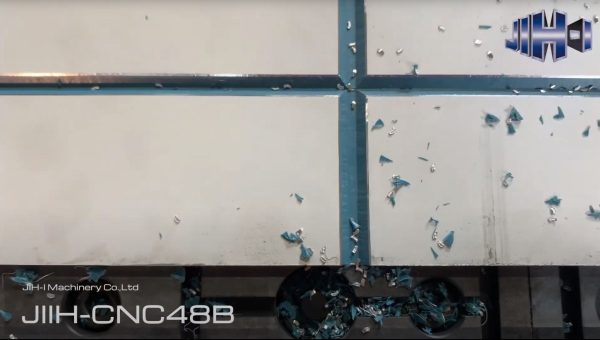

  • Vacuum table
  • Standand:8 tools magazine
Model JIH – CNC 48B
Stroke
X-Axis Stroke2,470 mm
Y-Axis Stroke1,250 mm
Z-Axis Stroke250 mm (opt. 700 mm)
Distance from spindle nose to table surface50~300 mm
Feed Rate
X-Axis Rapid Feed Rate36M / min
Y-Axis Rapid Feed Rate36M / min
Z-axis rapid feed rate24M / min
Cutting Feed RateF:1~5,000 mm/min
Repeatability AccuracyX: ±0.02mm Y: ±0.01mm Z :±0.01mm
Spindle
Motor10HP (7.5kw)
X-Axis Motor1.3 kw × 2
Y-Axis Motor1.3 kw
Z-Axis Motor(brake)1.3 kw
Table Height From Floor820 mm
Max. Range of Processing1,250~2,470 mm
Spindle Speed1,000~24,000 R.P.M.
Tool Magazine Type
Magazine Capacity8 pcs
Tool HolderISO 30
ColletER-32
Dimensions
Vacuum Zone2 zone (vacuum table)40bar
Required Pneumatic Pressure6 kgs/cm²
Machine Dimensions(LxWxH)5,800×2,900×2,100 mm
Machine Weight4,800 kgs
