Specifications

Make

JIH

Model

AUTO 1D

Description

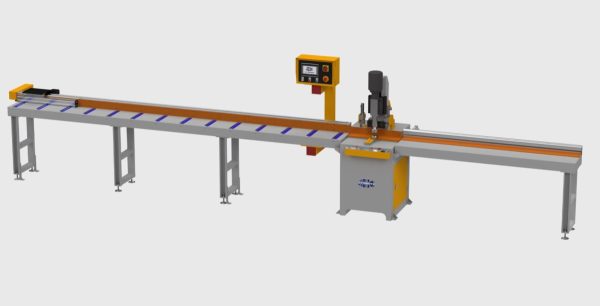

JIH- AUTO 1D – NC Automatic Drilling Machine

Product Description

  1. Automatic Drill Machine (X-Axis Automatic Positioning,Y-Axis Manual Positioning, Z-Axis Pinpoint Automatic Drilling).
  2. Plc Control, Touch Control, Can Manufacture Both Equal And Unequal Distance Drilling.

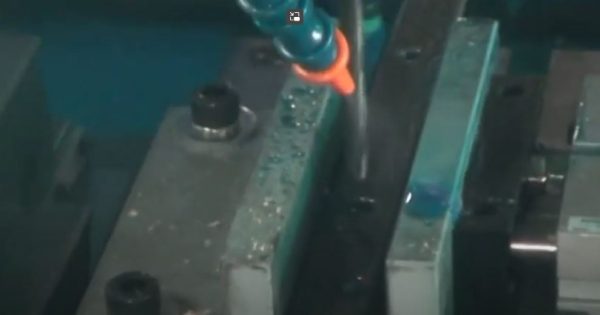

  3. Accurately Controlled Oil Mist System Greatly Improves Lubrication And Cooling Effect.
  4. Clamping System Is Optional.(Pneumatic Or Hydraulic).
  5. Can Make Both Manual Drilling And Automatic Drilling.

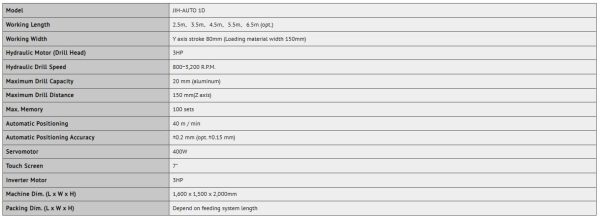

Product Specification

ModelJIH-AUTO 1D
Working Length2.5m、3.5m、4.5m、5.5m、6.5m (opt.)
Working WidthY axis stroke 80mm (Loading material width 150mm)
Hydraulic Motor (Drill Head)3HP
Hydraulic Drill Speed800~3,200 R.P.M.
Maximum Drill Capacity20 mm (aluminum)
Maximum Drill Distance150 mm(Z axis)
Max. Memory100 sets
Automatic Positioning40 m / min
Automatic Positioning Accuracy±0.2 mm (opt. ±0.15 mm)
Servomotor400W
Touch Screen7″
Inverter Motor3HP
Machine Dim. (L x W x H)1,600 x 1,500 x 2,000mm
Packing Dim. (L x W x H)Depend on feeding system length

Optional:

  • CE Standard
  • Outfeed Roller Table
  • Tool
