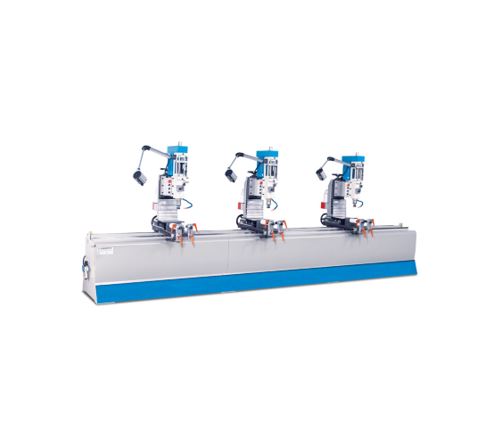

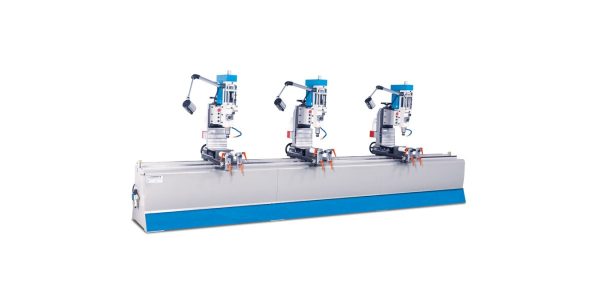

JIH-3D – Three Head Drilling Machine

JIH-3D - Three Head Drilling Machine
JIH-3D - Three Head Drilling Machine

Specifications

Make

JIH

Model

3D

Description

JIH-3D – Three Head Drilling Machine

Features

  1. X- Axis Stroke 4.5m(Optional).
    3 Axis Stroke Adjust by Manual.
    Z -Axis Auto Drilling .
    3 Axis Position by M10 LCD Display
    With Magnetic Tape.
  2. 3 Set drilling head can be movable together or choice individual start. Single or continue start for choice. Each head minimum distance is 300 mm.
  3. Automatic Oil Mist System.
  4. Y-axis max loading material width 250mm.
  5. Two steps start: the first step high speed feed rate (feeding position can be adjusted), the second step lower speed feed rate (feeding position can be adjusted).
  6. Hydraulic feed way.

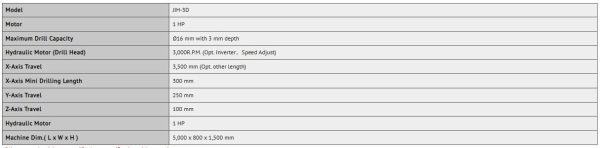

Product Specification

ModelJIH-3D
Motor1 HP
Maximum Drill Capacity∅16 mm with 3 mm depth
Hydraulic Motor (Drill Head)3,000R.P.M. (Opt. Inverter,Speed Adjust)
X-Axis Travel3,500 mm (Opt. other length)
X-Axis Mini Drilling Length300 mm
Y-Axis Travel250 mm
Z-Axis Travel100 mm
Hydraulic Motor1 HP
Machine Dim.( L x W x H )5,000 x 800 x 1,500 mm

Optional:

  • CE Standard
  • Infeed
  • Outfeed Roller Table
  • Tool
