Specifications

Make

JIH

Model

2D

Description

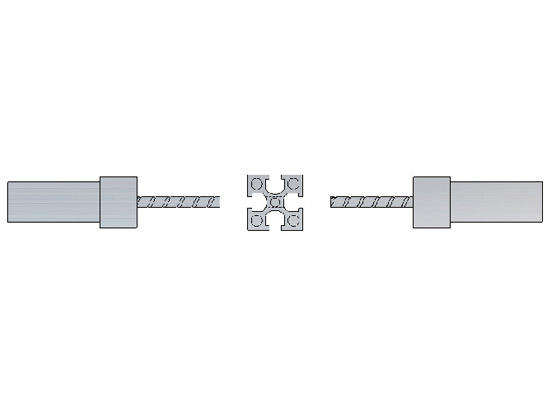

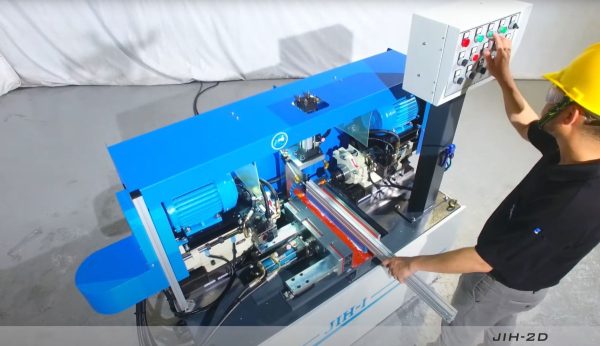

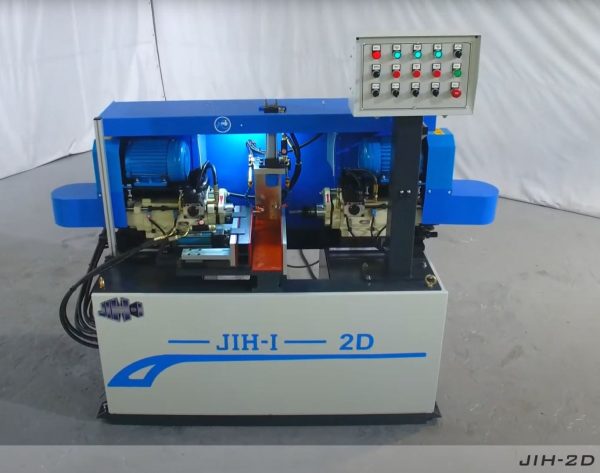

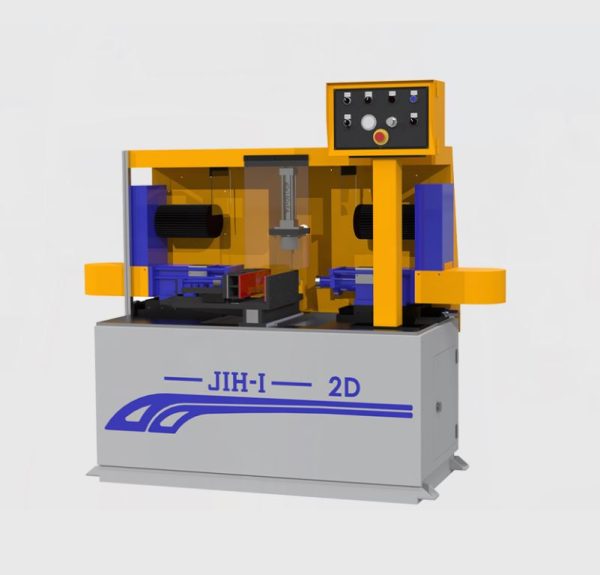

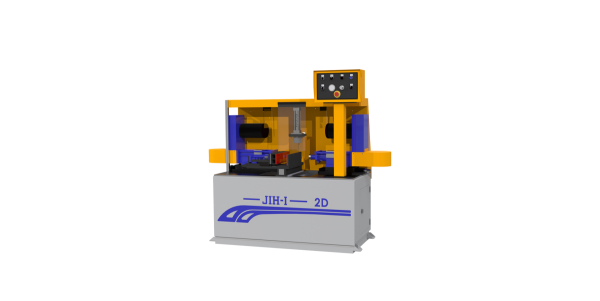

JIH-2D – Double Head Drilling Machine

Feature

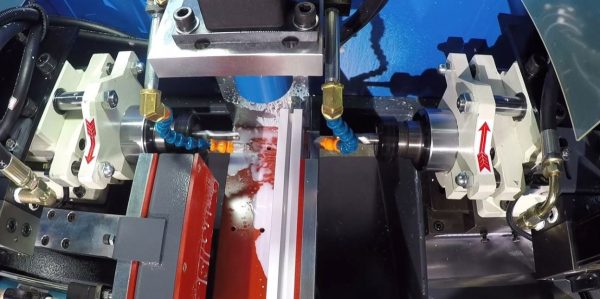

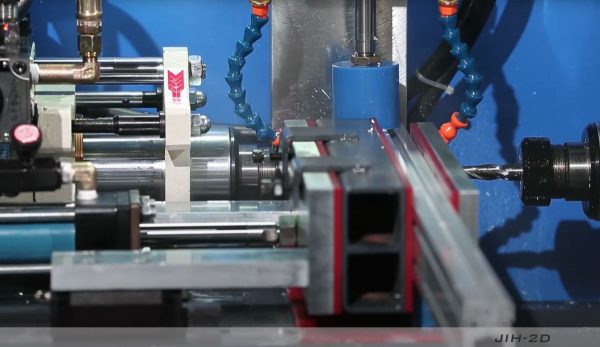

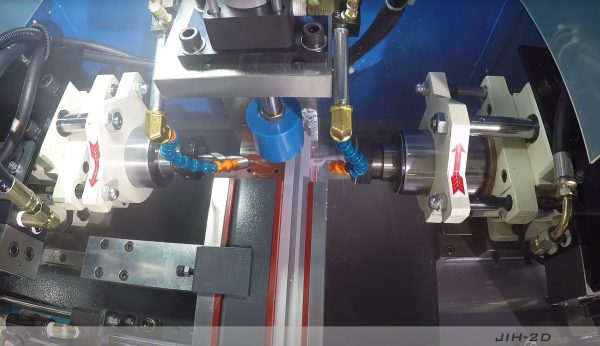

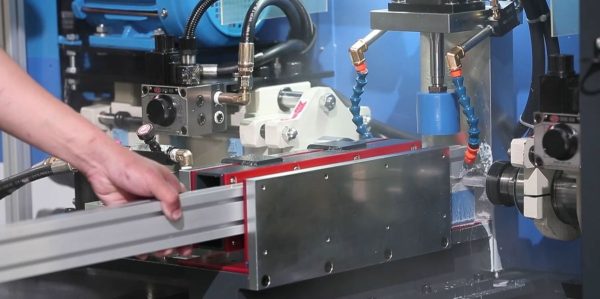

  1. Automatic clamping & Drilling
  2. Automatic oil spraying
  3. Spindle belt employ gear belt
  4. Hydraulic feeding system for drilling

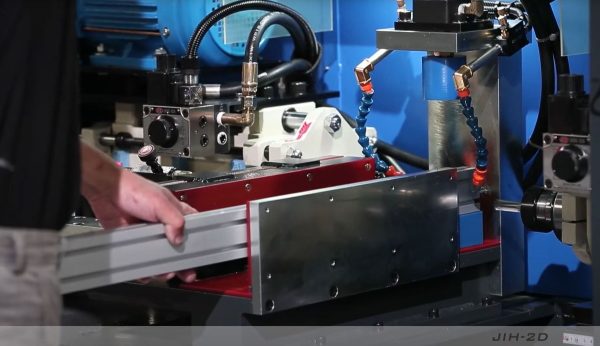

  5. Equip sliding table for convenient adjust drilling depth

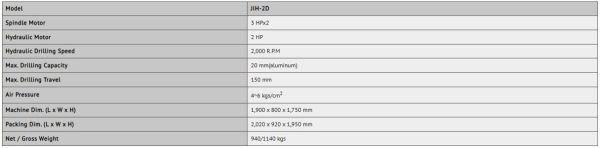

Product Specification

ModelJIH-2D
Spindle Motor3 HPx2
Hydraulic Motor2 HP
Hydraulic Drilling Speed2,000 R.P.M
Max. Drilling Capacity20 mm(aluminum)
Max. Drilling Travel150 mm
Air Pressure4~6 kgs/cm2
Machine Dim. (L x W x H)1,900 x 800 x 1,750 mm
Packing Dim. (L x W x H)2,020 x 920 x 1,950 mm
Net / Gross Weight940/1140 kgs

Optional:

  • CE Standard
  • Blade•Mold
  • Tool
