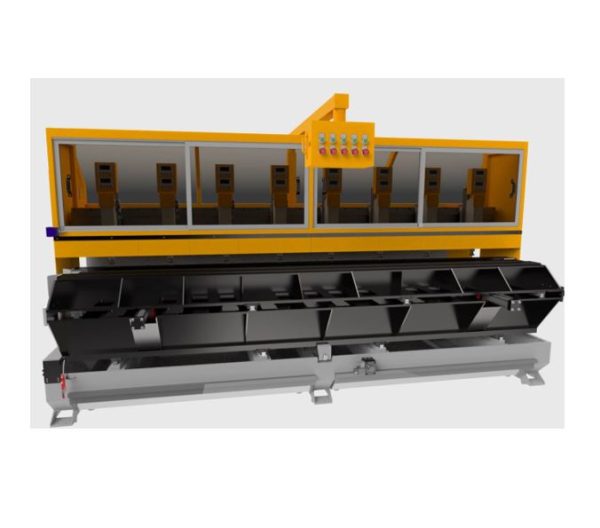

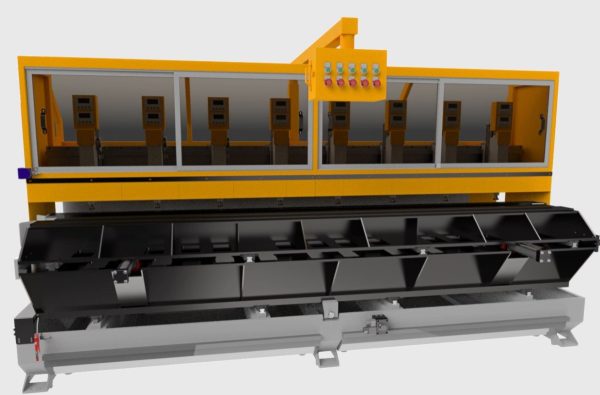

JIH-8D – Milling Machine
Specifications
| Make | JIH |
|---|---|
| Model | 8D |
Description
JIH-8D – Milling Machine
Product Description
- From No.1 to No.8 all drilling head working simultaneously (working total length 3,000mm . Opt. other length)
- Each head minimum distance is 150 mm.
- 8 sets drilling headed position by manual (LCD display).
- X axis, Y axis, Z axis adjust position by manual.
- Motor 2 HP for 8 PCS.
- Motor Spindle 7,000 R.P.M.
- Loading material width 150 mm Y- axis stroke 150 mm.
- Z- axis stroke 160 mm.
- Automatic oil mist system for tool.

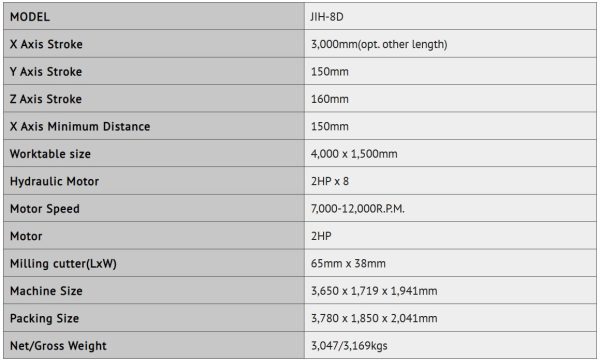

Product Specification
| MODEL | JIH-8D |
|---|---|
| X Axis Stroke | 3,000mm(opt. other length) |
| Y Axis Stroke | 150mm |
| Z Axis Stroke | 160mm |
| X Axis Minimum Distance | 150mm |
| Worktable size | 4,000 x 1,500mm |
| Hydraulic Motor | 2HP x 8 |
| Motor Speed | 7,000-12,000R.P.M. |
| Motor | 2HP |
| Milling cutter(LxW) | 65mm x 38mm |
| Machine Size | 3,650 x 1,719 x 1,941mm |
| Packing Size | 3,780 x 1,850 x 2,041mm |
| Net/Gross Weight | 3,047/3,169kgs |
Optional:
- Infeed,
- Outfeed Roller Table
- Milling Cutter
