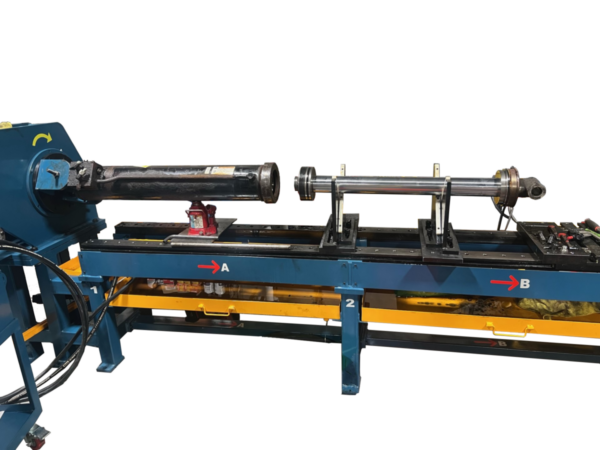

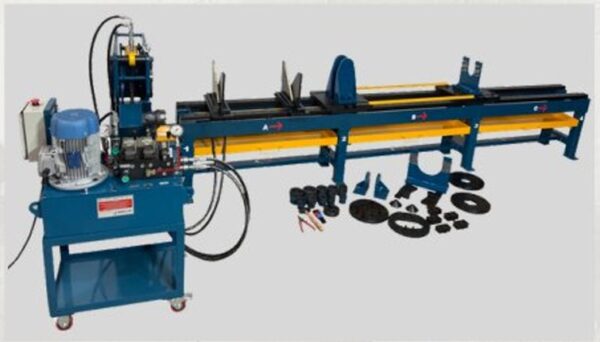

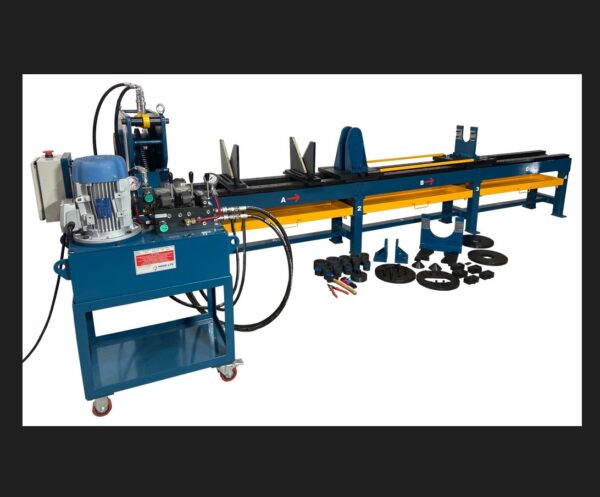

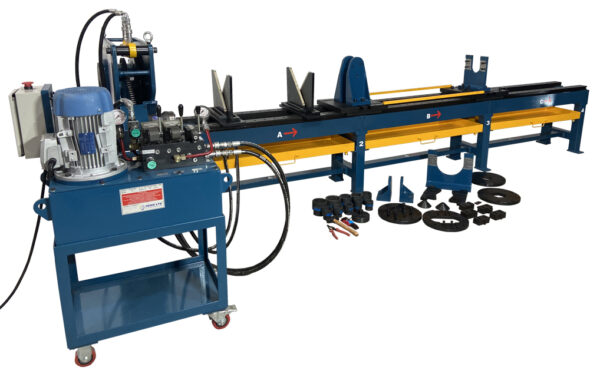

HEMS – Portable Hydraulic Cylinder Repair Kit – PCRB-4000
Specifications
| Make | HEMS |
|---|---|
| Model | PCRB-4000 |
Description
Looking for an efficient and cost-effective solution for hydraulic cylinder repair?
The PCRB-4000 is designed to simplify and enhance the repair process, reducing downtime and extending the lifespan of your heavy equipment.
Key Features
- Compact unit fits into a 75″ x 60″ x 50″ storage box
- Cylinder extraction length up to 1 m
- Extended fork capacity up to 3 m
- Maximum barrel diameter capacity: 200 mm
- Load capacity up to 1 ton
- Hand-operated hydraulic directional control valve with ratchet mechanism
- Supplied with a hydraulic power pack
- Mobile design for easy relocation
Benefits
- Space-saving design for easy storage and transport
- Handles a wide range of cylinder sizes and lengths
- Controlled, reliable hydraulic operation
- Easy to move between work areas or job sites
- Improved efficiency in workshop and field operations

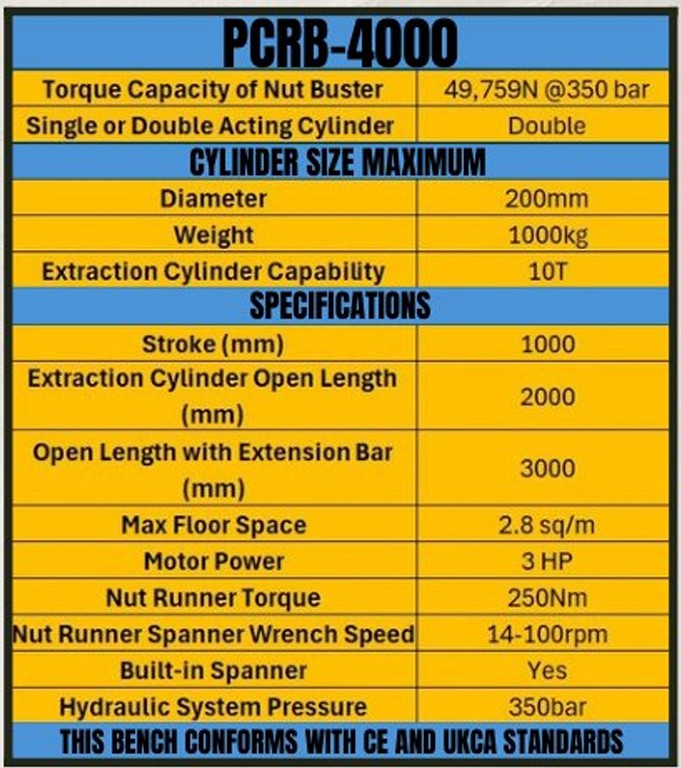

Key Specifications
- Maximum barrel diameter: 200 mm
- Weight: 1000 kg
- Extraction stroke: 1000 mm
- Extraction cylinder open length: 2000 mm
- Open length with extension bar: up to 3000 mm
- Load capacity: up to 1 ton
- Motor power: 3 HP
- Hydraulic system pressure: 350 bar
Why Choose the PCRB-4000?
– Precision repair for hydraulic cylinders with one-man operation
– Increased efficiency and reduced maintenance costs
– Heavy-duty design for durability and reliability
– Ideal for workshops and field service operations

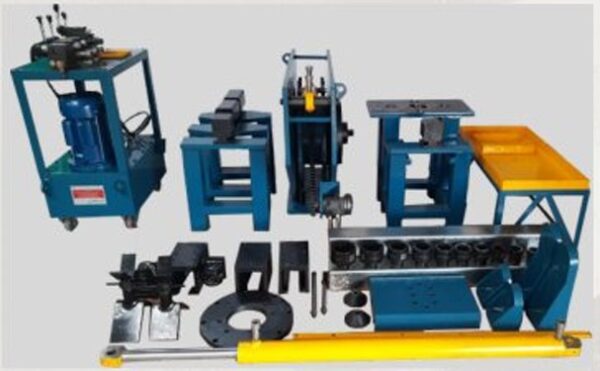

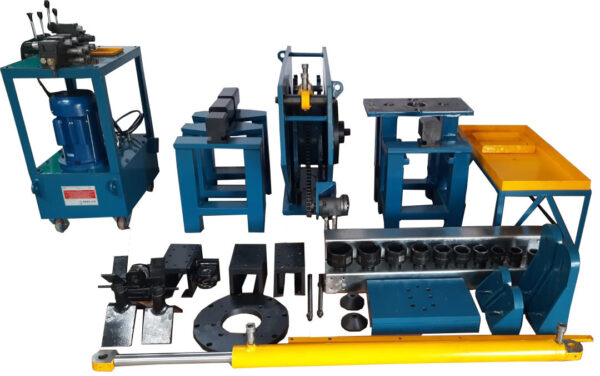

Attachments included:
- Universal Wrench is included to cater for any shape of cylinder head. It can be mounted onto the Nut Buster head or to either spanner plate.
- Clevis Lock plates are supplied with mounting plates and M16 shaft and nuts to hold the cylinder. The cylinder can be secured from the barrel end or the rod eye.
- 1-inch square socket drive is included along with 10 × square drive sockets. Hex socket sizes: 36, 38, 41, 46, 50, 55, 60, 65, 75, or 80 mm.
- 2 × Spanner Plates (90 and 95 mm) allow you to clamp larger nuts.
- 2 sets of ‘V’ Chucks are supplied with the bench to support the barrel and ram.
- Two bars can be fitted to the mounting plates for working on cylinders with less than 1,000 mm stroke.
- Spanner sets to unlock gland nuts are provided in 8, 10, and 12 mm sizes. Also included is a 3-slot spanner for odd cylinder heads. Included are 5-, 6-, and 8-mm-diameter pins for heads with round holes.
- Also included is a 3-slot spanner for odd cylinder heads with 3 or 6 holes in the gland.
- Giant nut spanner sets can be mounted on either of the included spanner mounting plates. These plates are mounted to the sliding bed.
- Clevis Support with cones on the sliding bed is provided to mount a barrel or ram eye. M20 bolt with nuts is part of this unit.
- A spare bed mounting plate is supplied, enabling you to clamp clevis support or spanner plates for smaller cylinders.
- Cylinder Extension Bar helps you to pull apart larger cylinders which have a stroke of more than 1 metre.
