HEMS – Pin Pusher for Small Tracks: HEPP 30T & 50T

Specifications

Description

Overview

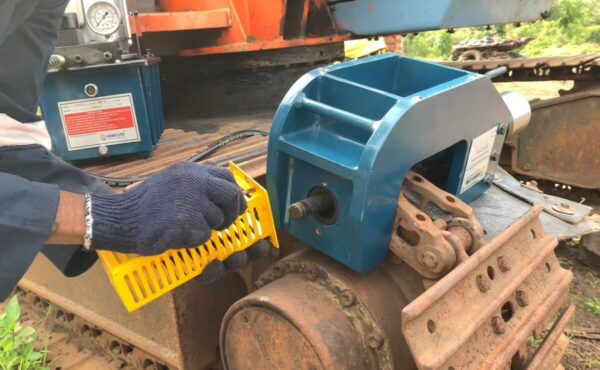

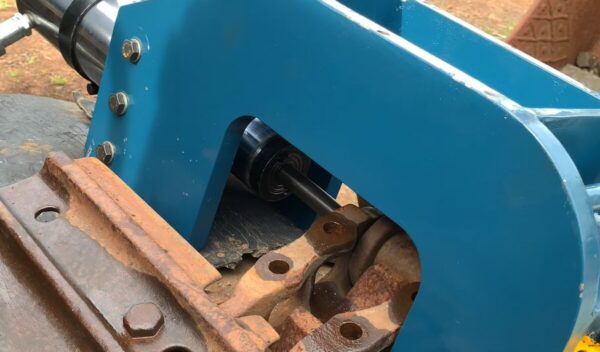

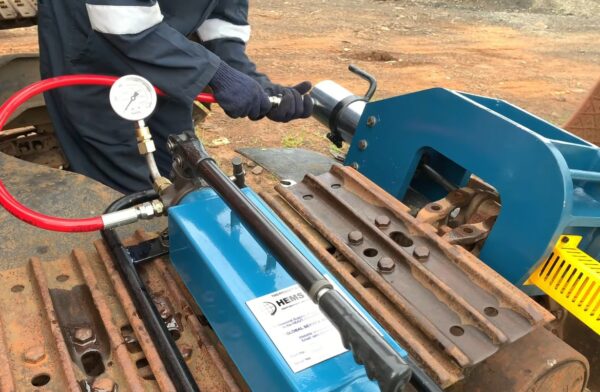

The HEPP 30T & 50T Pin Pushers are part of HEMS’ Master Pin Pusher series, engineered to facilitate the disassembly and reassembly of chain sections, driving wheels, pulleys, rollers, gears, bearings, and shafts. These portable track presses are ideal for both field and workshop environments, offering a safe and effective solution for track maintenance.

Key Features

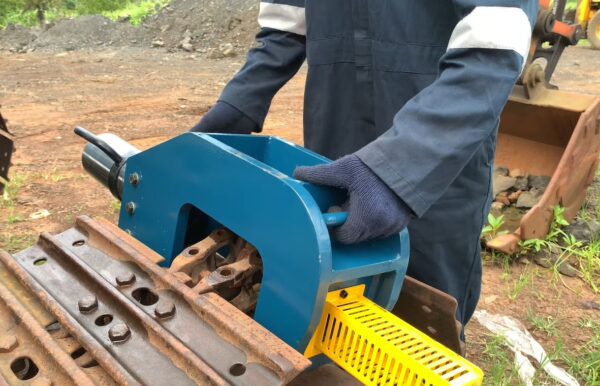

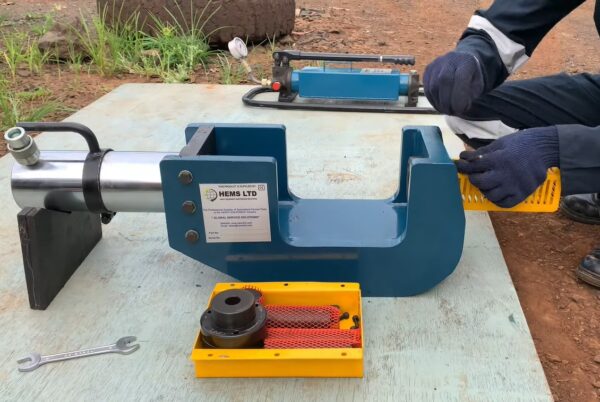

• Compact and lightweight design for easy portability and one-man operation.
• Includes tooling sets to accommodate pin diameters from 19.3mm to 36.2mm.
• Reduces labour hours and costs by eliminating traditional, dangerous methods.
• Suitable for a range of OEM applications including CAT, KOMATSU, VOLVO, JOHN DEERE, and HITACHI models.

Technical Specifications

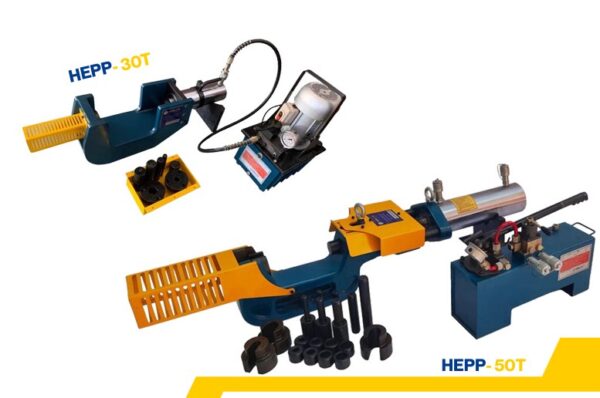

Below are the detailed specifications for the HEPP 30T & 50T models:

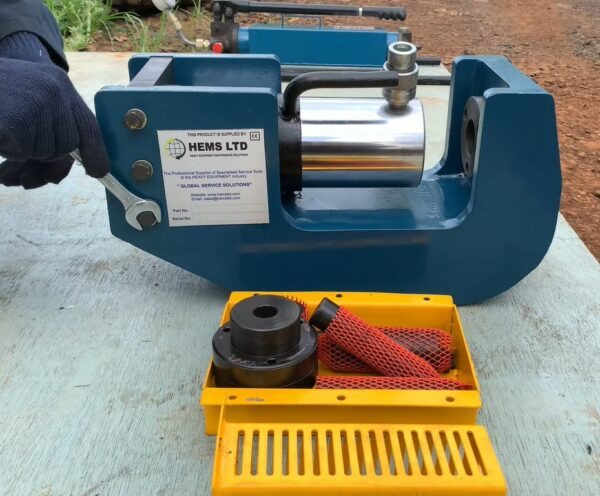

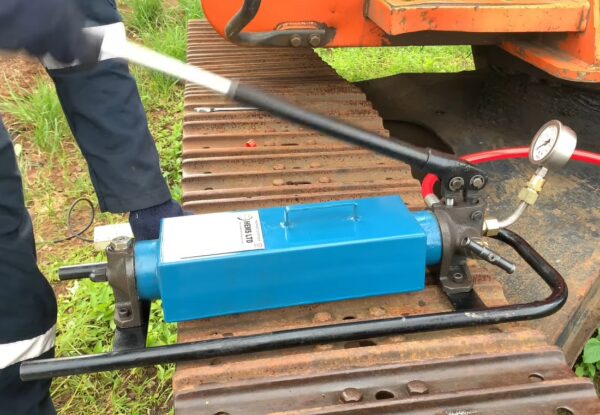

HEPP-30M Operation: Hand Pump

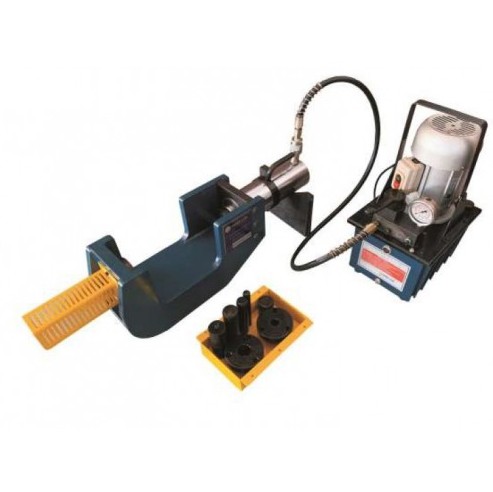

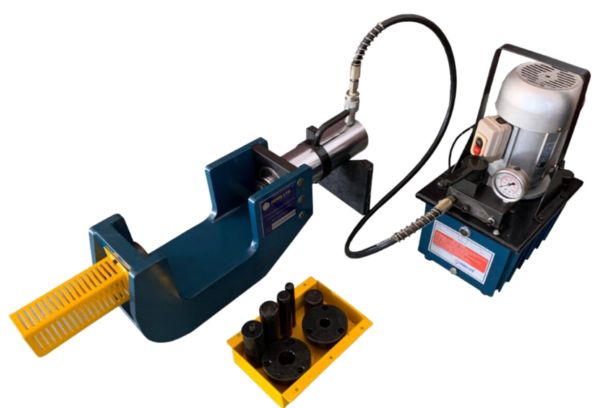

HEPP-30E Operation: Electric Pump

• Capacity: 30 Ton
• Stroke: 250 mm
• Working Pressure: 700 kg/cm²
• Approximate Weight: 28.5 kg
• Universal Tooling Set: Includes 5 tooling sets covering pin diameters from 18 mm to 36.2 mm.
• Pin Capacity:
  • Minimum Diameter: 18 mm
  • Maximum Diameter: 36.2 mm
  • Minimum Length: 19.3 mm
  • Maximum Length: 36.2 mm

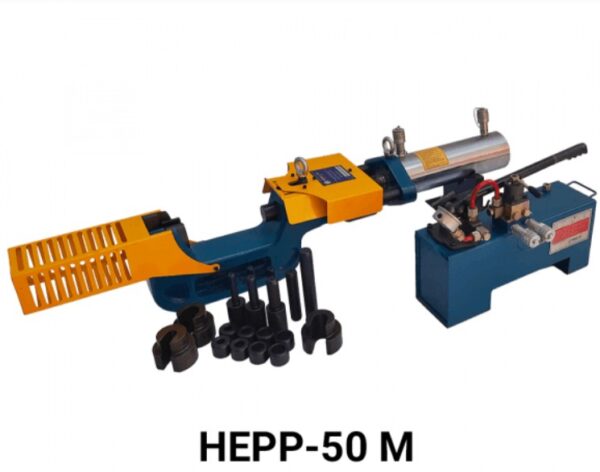

HEPP-50M Operation: Hand Pump

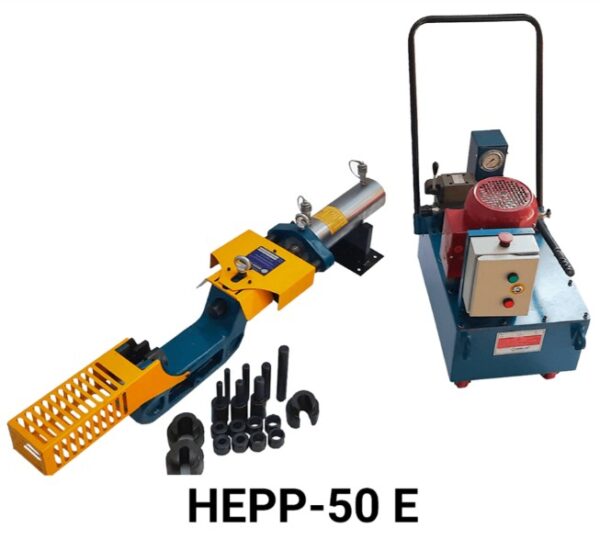

HEPP-50E Operation: Electric Pump with Dual-Control 2-in-1 Pump

• Capacity: 50 Ton
• Stroke: 250 mm
• Working Pressure: 700 kg/cm²
• Approximate Weight: 30 kg
• Universal Tooling Set: Includes 4 tooling sets covering pin diameters from 19.3 mm to 36.2 mm.
• Pin Capacity:
  • Minimum Diameter: 19.3 mm
  • Maximum Diameter: 36.2 mm
  • Minimum Length: 19.3 mm
  • Maximum Length: 36.2 mm

Applications

The HEPP 30T & 50T models are suitable for a variety of OEM applications, including:

• CAT D5/955/E120, D5C/955/TR225/D4D
• KOMATSU D31/PC138, D30/D50/PC100/PC120/PC80
• VOLVO CE E210, EC145
• JOHN DEERE 690, 450G/690/EX120-2/550G
• HITACHI EX120, EX90/EX100/EX120
