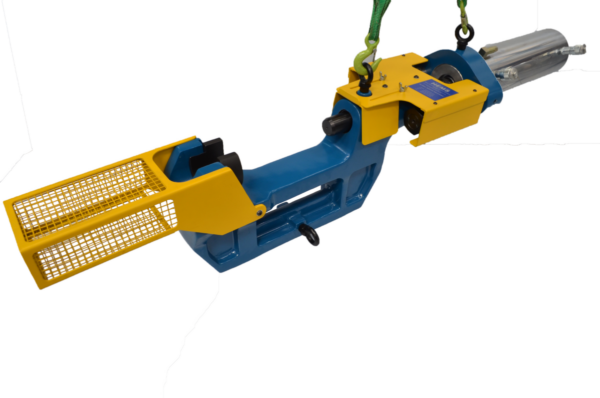

HEMS – Pin Pusher for Medium Tracks: HEPP 100T/E
Specifications
| Model | HEPP 100T/E |
|---|---|
| Make | HEMS |
Description
Portable track presses or ‘Master Pin Pusher’ series HEPP make it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts all in the field or workshop.

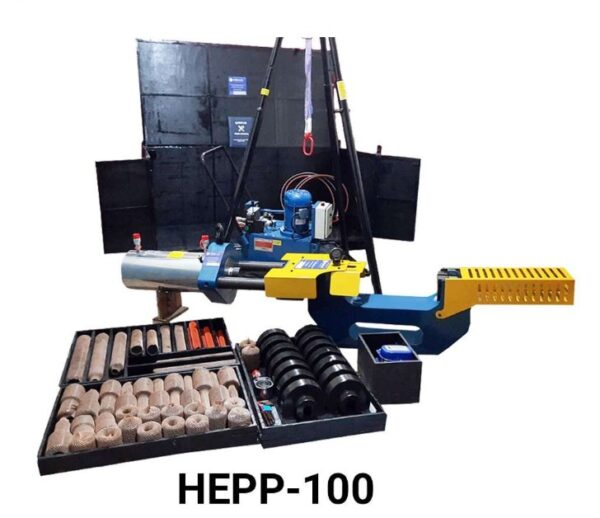

HEPP 100T/E HEMS Portable Track Press with Dual Pump – 2 in 1 – Complete Package (10 sets of tooling and additional attachments included)
In Stock 230v 50hz Single Phase
Includes pin set and adaptor tooling to cover from 19.3 mm up to 60.2 mm in diameter, and many additional items.
A few examples of OEM applications for our 100-ton Track Press:
- CAT ALL MODELS UP TO CAT D10
- VOLVO EC460 / EC700 / EC290 / EC210 / EC330 and more
- JOHN DEERE 450LC / 693D / 330LC / 855 / 1155D / 1280 and more
- KOMATSU D155 / D355 / D60 / D75 / PC700 / PC800 and more
- HITACHI ZX350 / EX1100 / EX1200
- and more
Track Link Pin Pusher, Model: HEPP 100T/E
- Capacity: 100 ton
- Stroke: 350 mm
- Frame Throat: 85 mm
- Frame Daylight: 369 mm
- Total Length of Assembly: 1440 mm
- Weight (‘C’ frame with Cylinder): 205 kg approx.

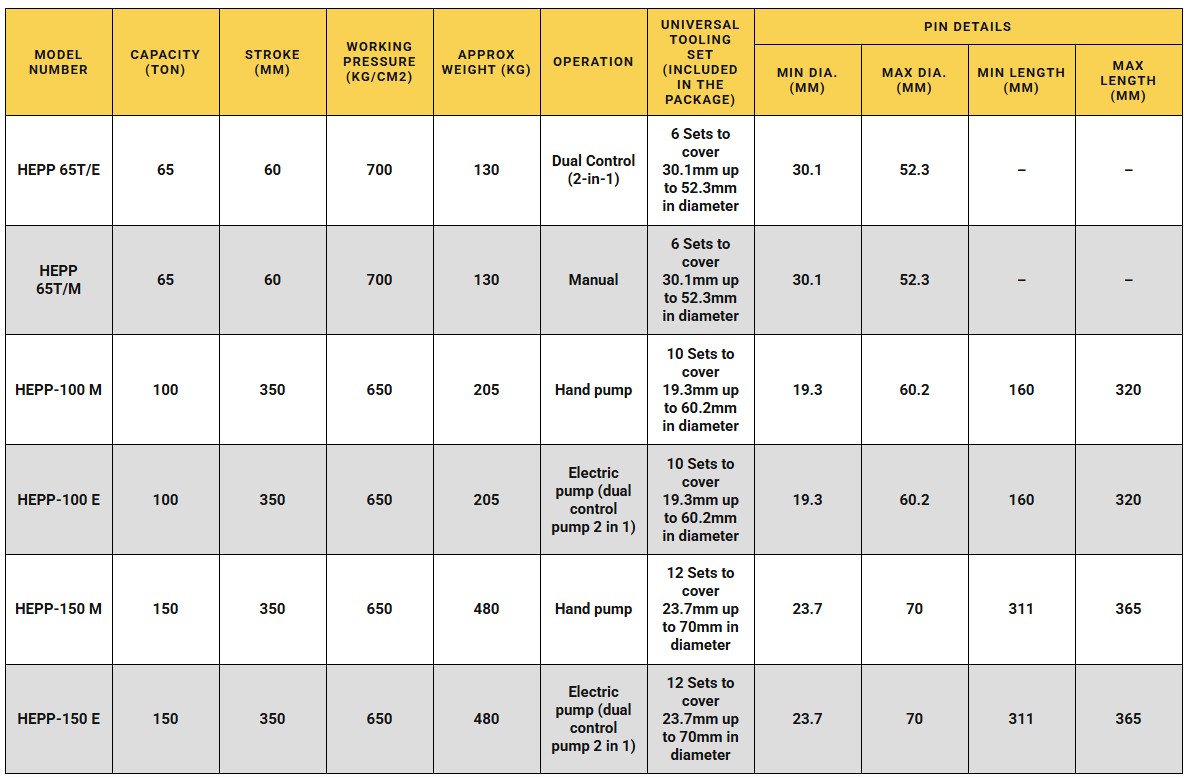

Delahenty Machinery and HEMS offer various-sized portable press options from 50 to 230ton depending on the make/model of the tracks and applications.
Advantages of having a HEMS Master Pin Pusher:
- Safe and effective removal/installation of Track Pins, Master Pins, Bushings and Master Bushings
- Reduction in labour hours
- Cost effective
- Eliminates old, dangerous methods
Application
- Safe and controlled pin and bushing removal and installation
- Reduced labour time and operating costs
- Eliminates unsafe, outdated methods
- Increased efficiency in maintenance and repair operations
Benefits
- Portable HEPP series track presses
- Press and pull capability for track and master pins
- Suitable for workshop and on-site use
- Available capacities from 30–300 tons (model dependent)
- OEM-specific master pin pusher packages available
Key Features
- Chain sections
- Drive wheels
- Pulleys and rollers
- Gears
- Bearings
- Shafts
Repair your heavy equipment and heavy machinery with state-of-the-art hydraulic, electric and automatic equipment.
Repair your heavy-duty equipment using our undercarriage repair, cylinder repair, master pin pusher, lifting jack, engine repair stand, hose coupling and workshop presses.
HEMS Ltd’s specialised service tooling is designed for the correct service and maintenance of all OEM earthmoving machinery.
Whether you have a Volvo CE, Komatsu, CAT, JCB, Hyundai CM, Hitachi or any other machinery, we have the right solution for you.
