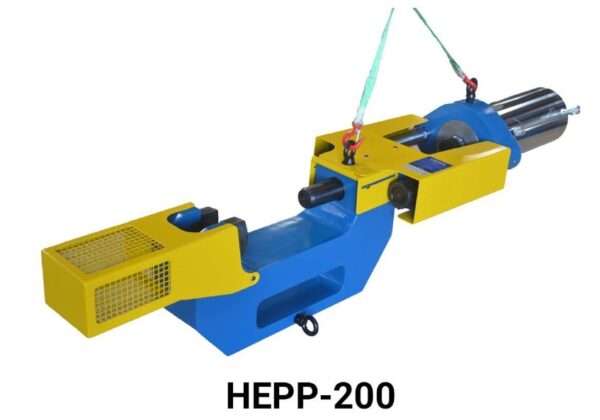

HEMS – Pin Pusher for Large Tracks: HEPP 200T

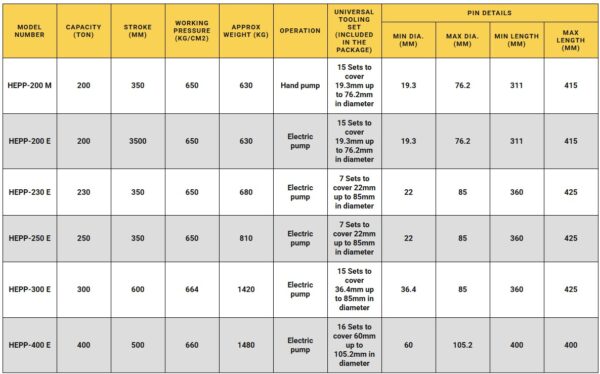

Specifications

Description

HEMS portable track presses or ‘Master Pin Pusher’ series HEPP make it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts all in the field or workshop.

HEMS HEPP 200ton Press is suitable for larger tracked applications. It is also ideal for medium-sized tracks that have particularly weathered pins.

This model includes a pin set and adaptor tooling to cover from 22 mm up to 76.2 mm in diameter and many more additional items.

A few examples of OEM applications for our 200ton Press:

• CAT D10 / D11 and more
• KOMATSU PC800 / D275 and more
• HITACHI EX1800 / EX1900 and more

Application

• Safe and controlled pin and bushing removal and installation
• Reduced labour time and operating costs
• Eliminates unsafe, outdated methods
• Increased efficiency in maintenance and repair operations

Benefits

• Portable HEPP series track presses
• Press and pull capability for track and master pins
• Suitable for workshop and on-site use
• Available capacities from 30–300 tons (model dependent)
• OEM-specific master pin pusher packages available

Key Features

• Chain sections
• Drive wheels
• Pulleys and rollers
• Gears
• Bearings
• Shafts

Advantages of having a HEMS Master Pin Pusher:

• Safe and effective removal/installation of Track Pins, Master Pins, Bushings and Master Bushings
• Reduction in labour hours
• Cost effective
• Eliminates old dangerous methods
