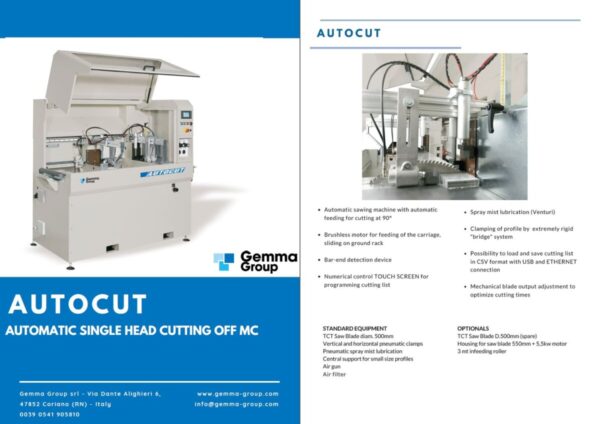

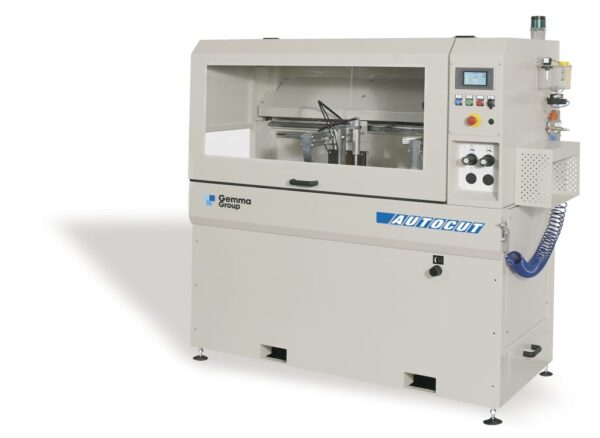

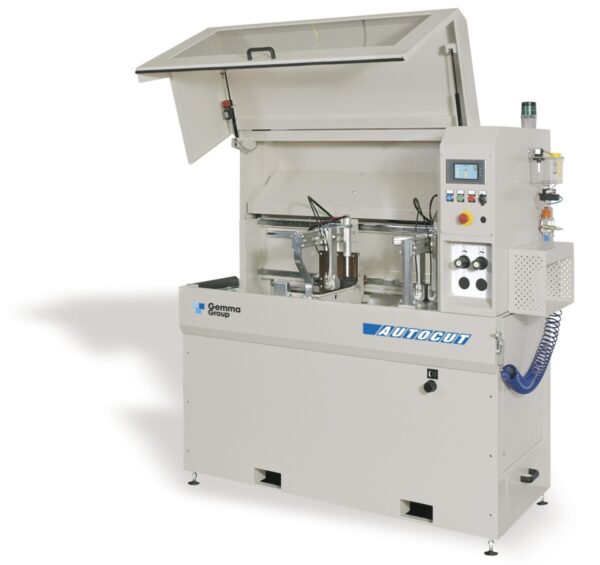

GEMMA – Autocut – Automatic Single Head Cutting
Specifications
| Make | GEMMA |
|---|---|
| Model | Autocut |
Description

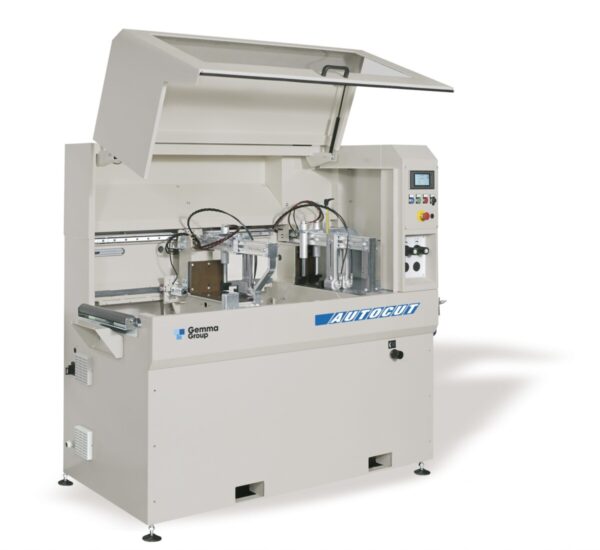

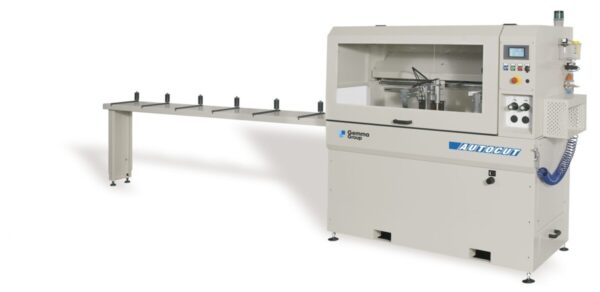

- Automatic single-head cutting-off machine for 90°cuts with automatic in-feeding.
- Electro-welded steel base.

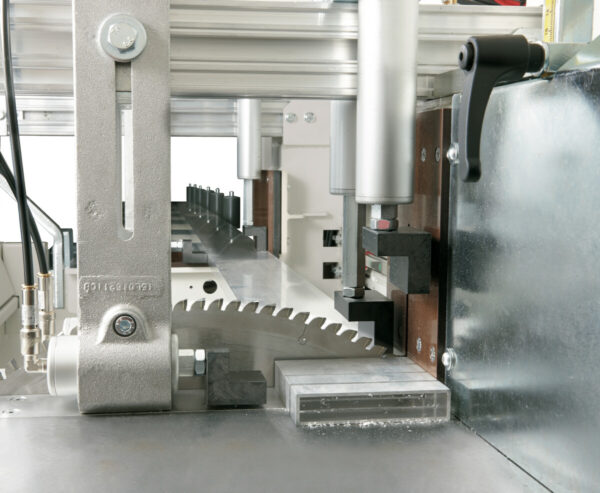

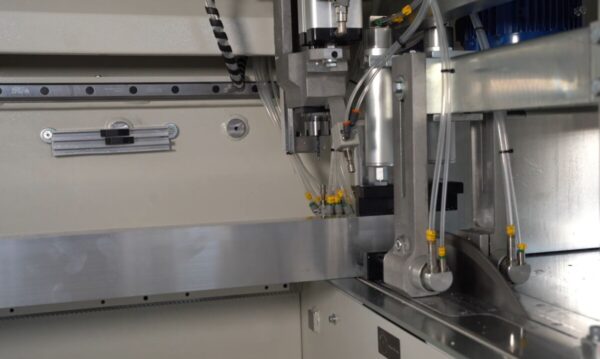

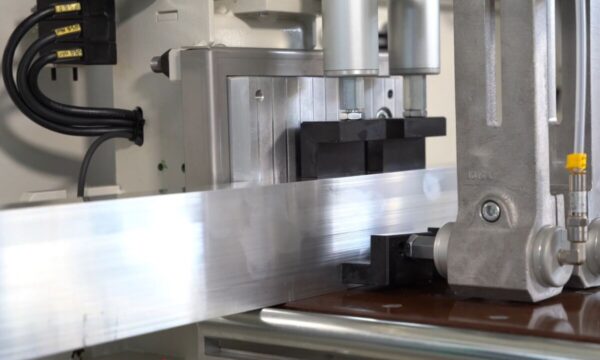

- 4 horizontal pneumatic clamps, 3 vertical pneumatic clamps and central support for small section profiles.

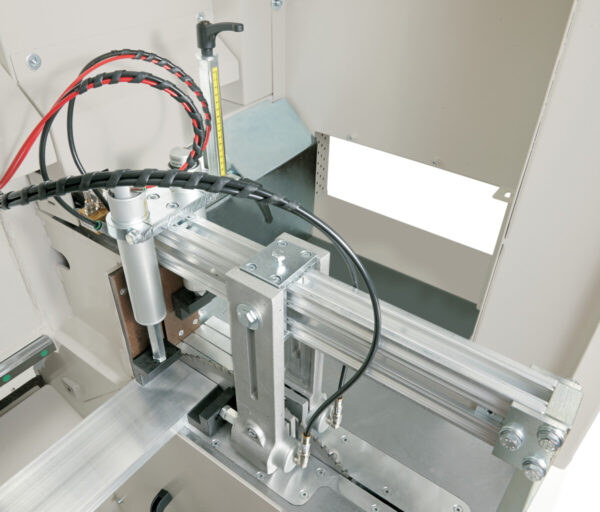

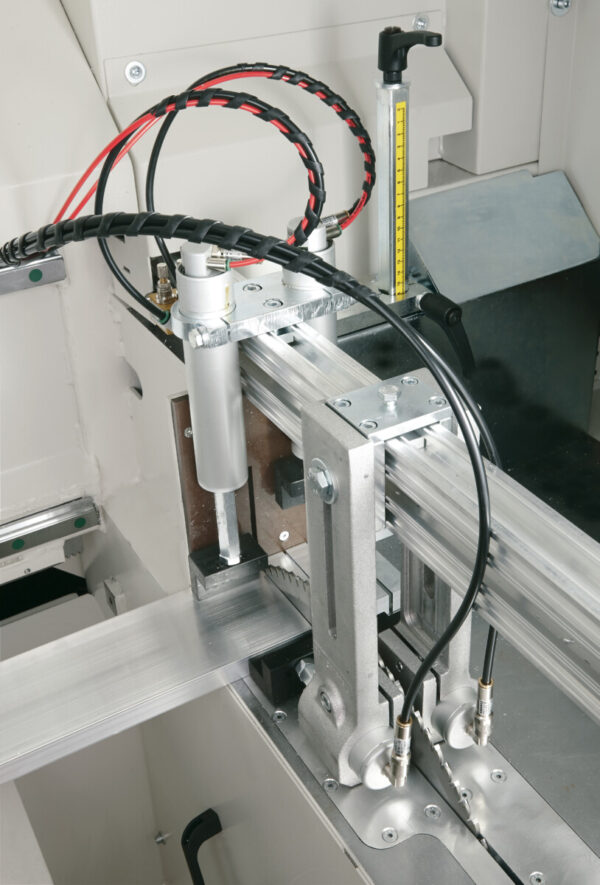

- Profile locking with heavy-duty “bridge” system.
- Cutting unit controlled by a 5.5 kW motor at 2.800 rpm; equipped with wide blade diam. 550 mm.

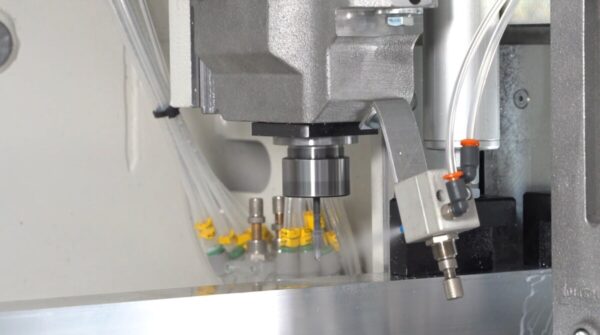

- Venturi lubrication system. Min. cutting length 5 mm. Max. cutting length 660 mm.

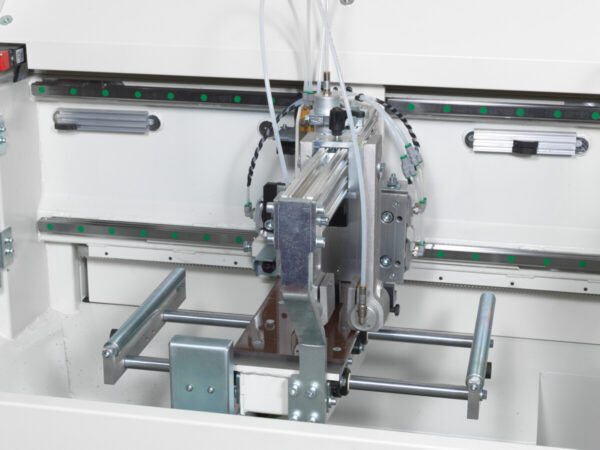

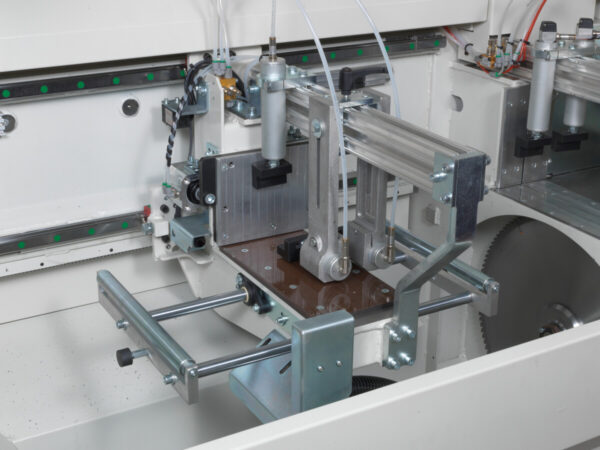

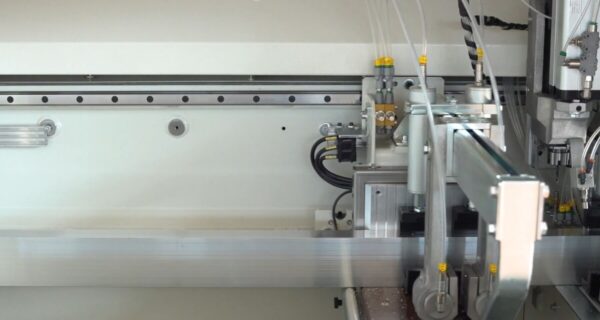

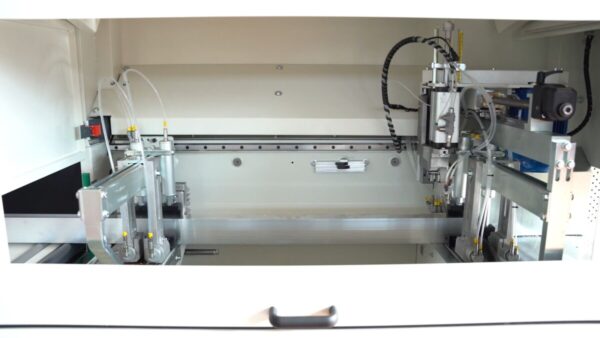

- Bar advancement system with brushless motors running on linear guides with ground rack. End bar length laser detector.

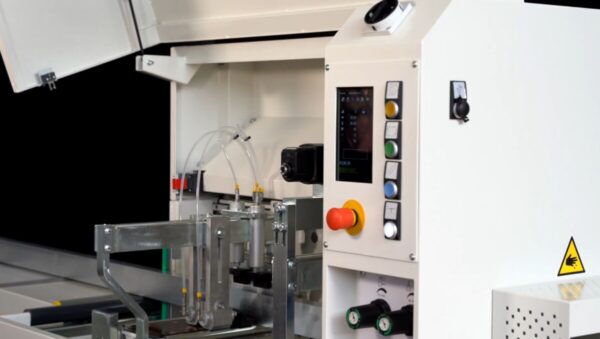

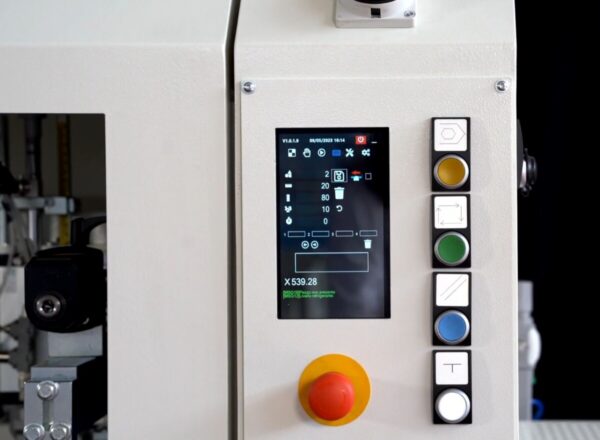

- Operator’s interface on PC-Windows with 7” colour touch-screen.
- The machine is equipped as standard with safety and protection devices in compliance with EU regulations
| saw blade [mm] | 550mm |
|---|---|
| motor [kW] | 5.5 |
| weight [kg] | 680 |
| dimensions [mm] | 1600x800x1650 mm |
| CUTTING RANGE | ||
|---|---|---|
| ° | 90° | |
| Maximum diameter of material | mm | 160×160 |
| mm | 300×120 |
