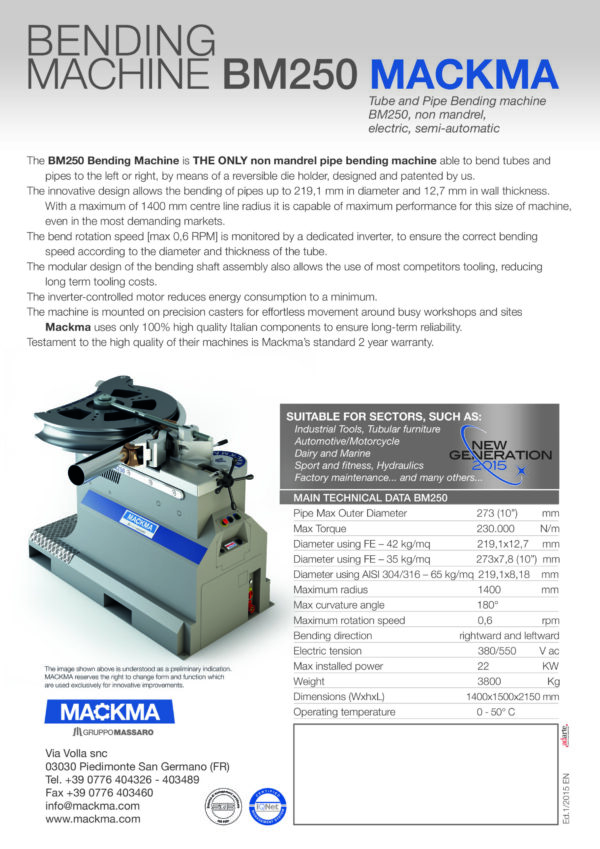

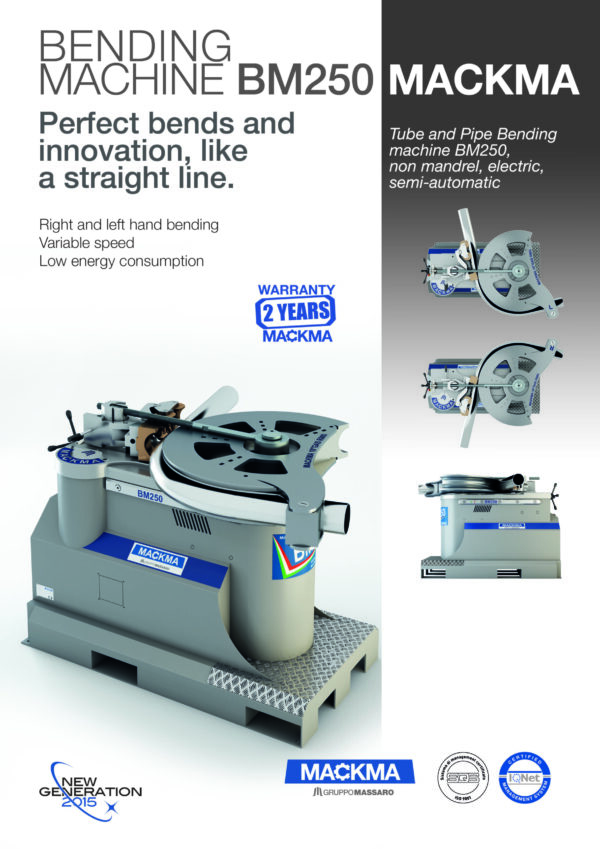

View Brochure

Specifications

Make

MACKMA

Model

BM 250

Description

Suitable for the following sectors:

  • Industrial technical articles
  • Furniture
  • Automotive
  • Motorcycle and boating
  • Sport and wellness items
  • Piping

——-

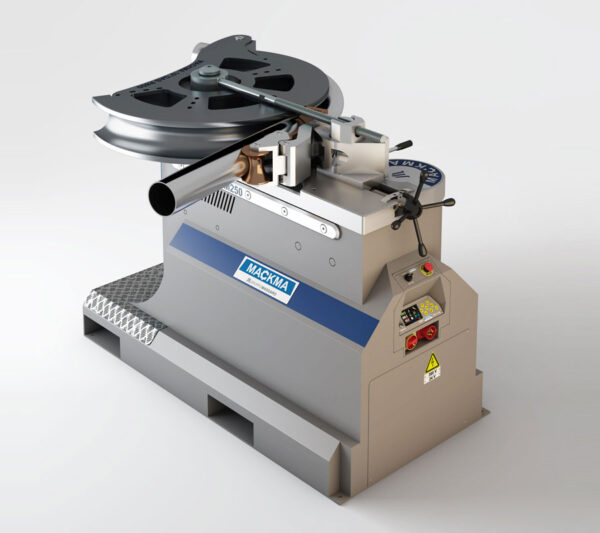

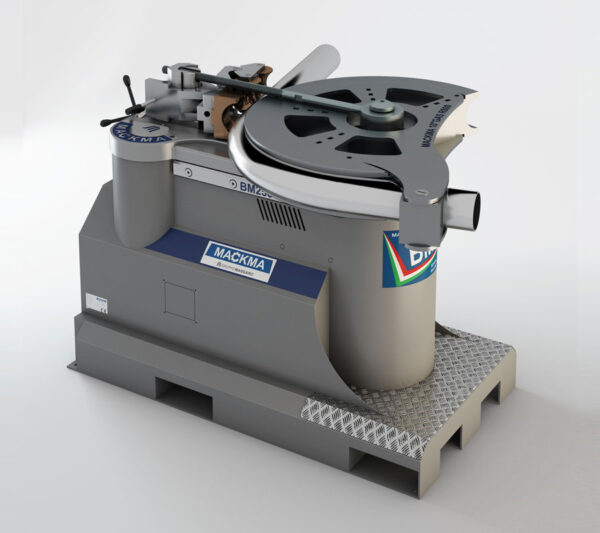

The BM250 Bending Machine is THE ONLY non-mandrel pipe bending machine able to bend tubes and pipes to the left or right, by means of a reversible die holder, designed and patented by us.
The innovative design allows the bending of pipes up to 219,1 mm in diameter and 12,7 mm in wall thickness. With a maximum of 1200 mm centre line radius, it is capable of maximum performance for this size of the machine, even in the most demanding markets. The bend rotation speed [max 0,6 RPM] is monitored by a dedicated inverter, to ensure the correct bending speed according to the diameter and thickness of the tube.
The modular design of the bending shaft assembly also allows the use of most competitors’ tooling, reducing long-term tooling costs.
The inverter-controlled motor reduces energy consumption to a minimum.
The machine is mounted on precision casters for effortless movement around busy workshops and sites Mackma uses only 100% high-quality Italian components to ensure long-term reliability. Testament to the high quality of their machines is Mackma’s standard 2 year warranty.



Pipe Max Outer Diameter 273 mm
Max Torque 270.000 N/m
Capability with FE – 42 kg/mm2 219×12,7 mm
Capability with FE – 35 kg/mm2 273×7,8 mm
Capability with AISI 304/316 – 65 kg/mm2 219×8 mm
Maximum radius 1200 mm
Max bending angle 180°
Bending direction rightward and leftward
Electric tension 380 V
Max installed power 30 KW
Weight 7000 Kg
Dimensions (WxhxL) 3000x1600x1400 mm
Operating temperature 0 –  50°
