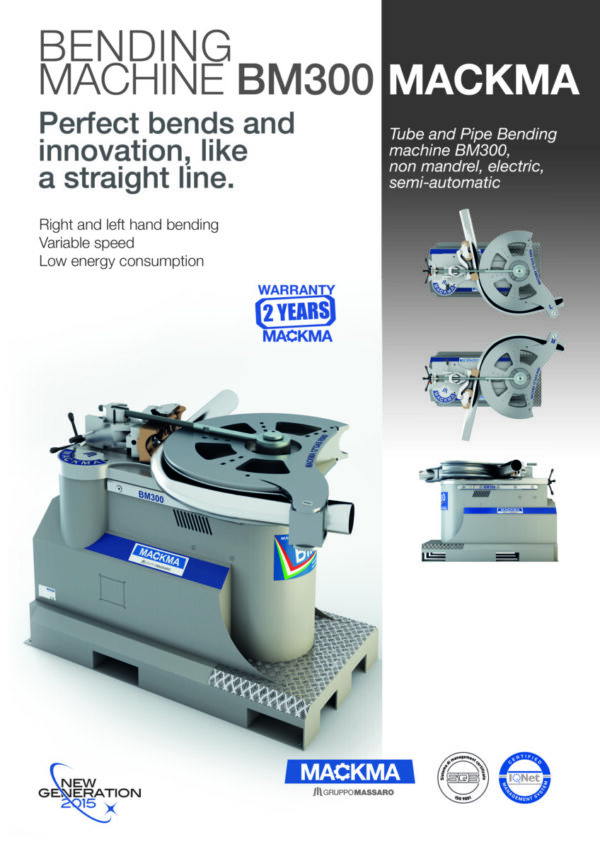

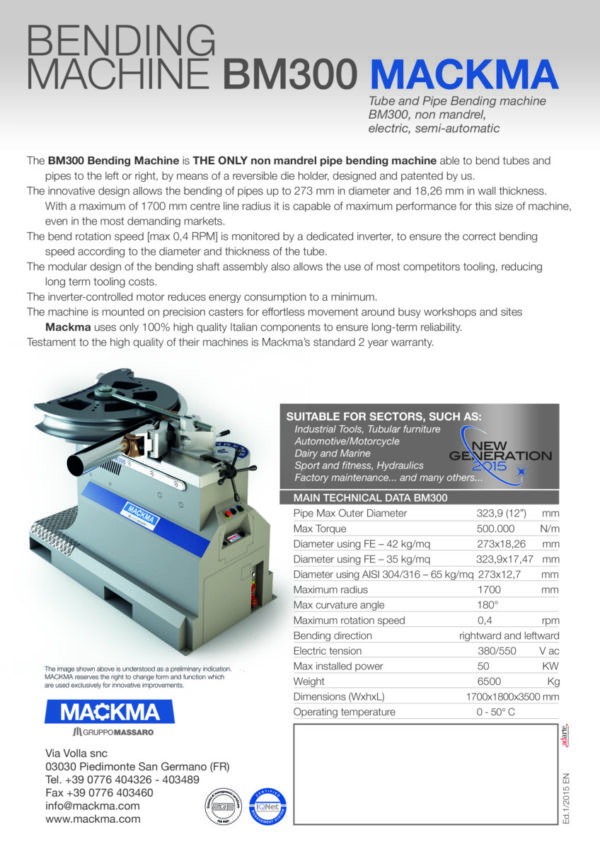

View Brochure

Description

Suitable for the following sectors:

  • Industrial technical articles
  • Furniture
  • Automotive
  • Motorcycle and boating
  • Sport and wellness items
  • Piping

——-

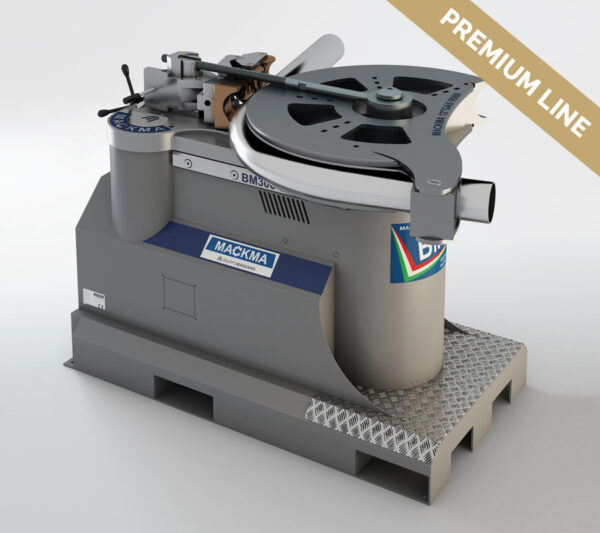

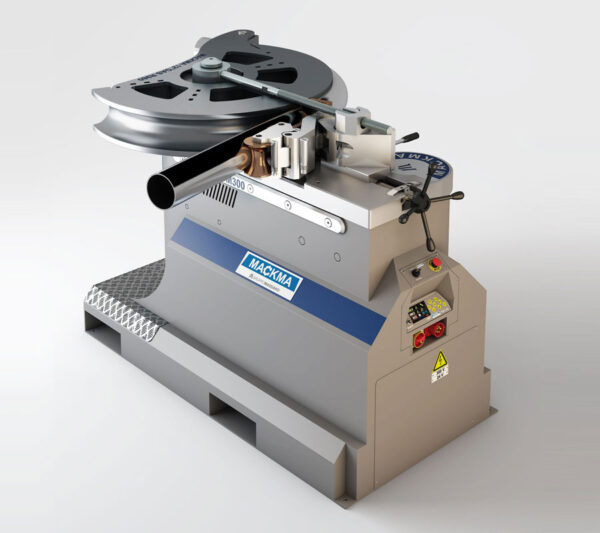

The BM300 Bending Machine is THE ONLY non mandrel pipe bending machine able to bend tubes and pipes to the left or right, by means of a reversible die holder, designed and patented by us.
The innovative design allows the bending of pipes up to 273 mm in diameter and 18 mm in wall thickness. With a maximum of 1700 mm centre line radius it is capable of maximum performance for this size of machine, even in the most demanding markets.
The bend rotation speed [max 0,4 RPM] is monitored by a dedicated inverter, to ensure the correct bending speed according to the diameter and thickness of the tube.
The modular design of the bending shaft assembly also allows the use of most competitors tooling, reducing long term tooling costs.
The inverter-controlled motor reduces energy consumption to a minimum.
The machine is mounted on precision casters for effortless movement around busy workshops and sites Mackma uses only 100% high quality Italian components to ensure long-term reliability. Testament to the high quality of their machines is Mackma’s standard 2 year warranty.

Pipe Max Outer Diameter 324 mm
Max Torque 627.000 N/m
Capability with FE – 42 kg/mm2 273×18 mm
Capability with FE – 35 kg/mm2 323,9×15 mm
Capability with AISI 304/316 – 65 kg/mm2 273×12 mm
Maximum radius 1700 mm
Max bending angle 180°
Bending direction rightward and leftward
Electric tension 380 V
Max installed power 55 KW
Weight 11000 Kg
Dimensions (WxhxL) 3800x1700x1800 mm
Operating temperature 0 –  50°
