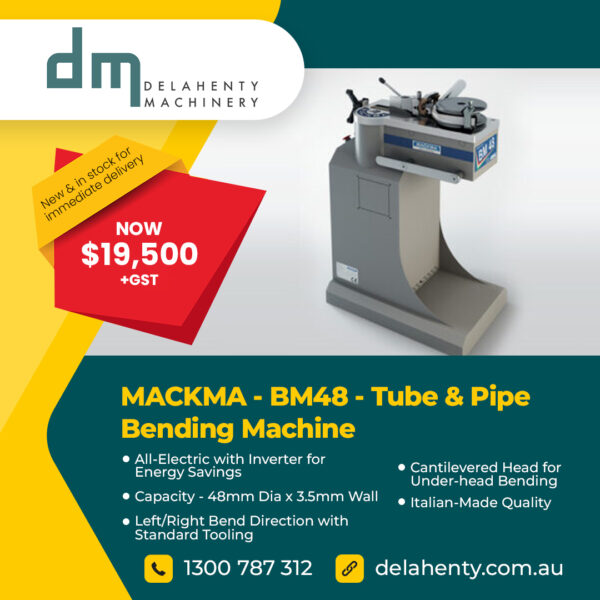

MACKMA – BM48 – Rotary Draw Bending Machine [NOW $19,500+GST]

Specifications

Description

New & in stock for immediate delivery

NOW $19,500+GST

The MACKMA BM48 Rotary Draw Bending Machine offers impressive features and benefits for pipe bending:

1. Innovative Design:
   • Bends pipes with a diameter up to 48 mm and a thickness of 3.5 mm.
   • Achieves a 3xOD minimum radius and a maximum radius of 250 mm.
   • Ensures high repeatability for demanding markets.
2. Dual Bending Direction:
   • Unique non-mandrel design allows both left and right bending.
   • Coupling capability for tapered internal/external pipe deburring tool.

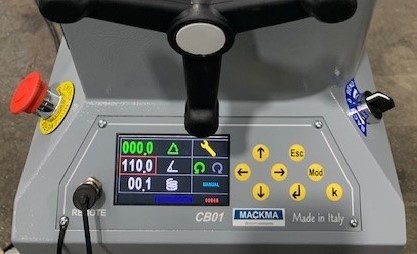

3. Inverter-Controlled Curvature Axis:
   • Rotational speed ranges between 2 and 3 revs/min.
   • Operator-adjustable speed for optimal pipe bending.

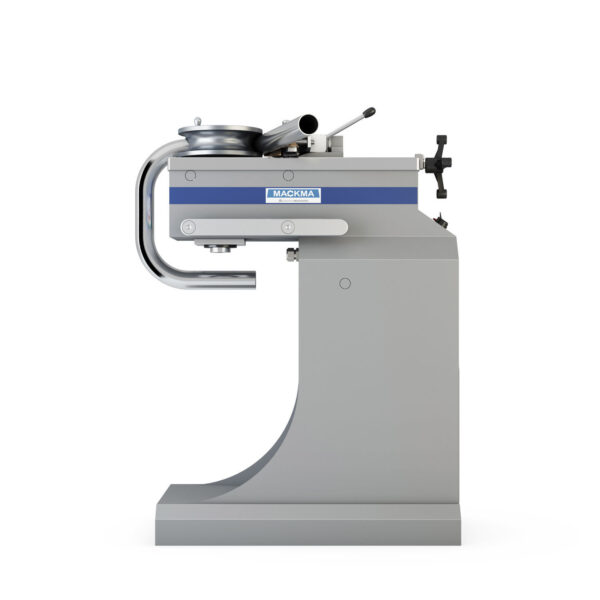

4. Cantilever Head:
   • Creates complex figures where the pipe passes under the head.
   • Versatile for various bending requirements.
5. Interfacing with Competition Tools:
   • Special shaft system allows compatibility with other machinery tools.
   • Flexible integration options.
6. Energy-Efficient Motor:
   • Inverter-controlled motor minimizes power consumption.
7. Italian-Made Quality:
   • High-quality components ensure durability.
   • Backed by a 2+2 year MACKMA warranty.

Technical Specifications:

• Pipe Max Outer Diameter: 50 mm
• Max Torque: 2400 N/m
• Max Curvature Angle: 180°
• Electric Tension: 380 V
• Max Installed Power: 1.1 KW
• Weight: 110 Kg
