MACKMA – BM34 – Non Mandrel Tube & Pipe Bender

Specifications

Description

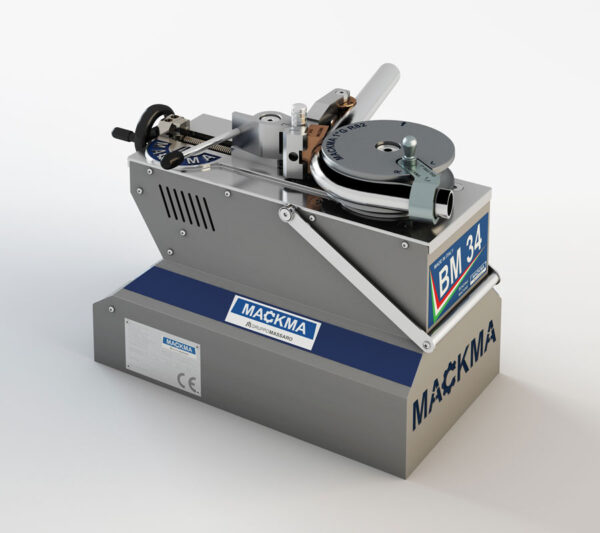

MACKMA – BM34 – Non Mandrel Tube & Pipe Bender

The BM34 Bending Machine is THE ONLY non mandrel pipe bending machine able to bend tubes and pipes to the left or right, by means of a reversible die holder, designed and patented by us.

The innovative design allows the bending of pipes up to 33,4 mm in diameter and 3,38 mm in wall thickness.

With a maximum of 170 mm centre line radius it is capable of maximum performance for this size of machine, even in the most demanding markets.

The bend rotation speed [2 to 3 RPM] is monitored by a dedicated inverter, to ensure the correct bending speed according to the diameter and thickness of the tube.

The inverter-controlled motor reduces energy consumption to a minimum.

The machine is mounted on precision casters for effortless movement around busy workshops and sites Mackma uses only 100% high-quality Italian components to ensure long-term reliability.

Suitable for the following sectors:

• Industrial technical articles
• Furniture
• Automotive
• Motorcycle and boating
• Sport and wellness items
• Piping

Main technical data:

• Pipe Max Outer Diameter 38 mm
• Max Torque 914 N/m
• Capability with FE – 42 daN/mq 33,4×3,38 mm
• Capability with FE – 35 daN/mq 38×2 mm
• Capability with AISI 304/316 – 65 daN/mq 33,4×1,5 mm
• Maximum radius 160 mm
• Max curvature angle 180°
• Bending direction rightward and leftward
• Electric tension 220 V
• Max installed power 0,52 KW
• Weight 33 Kg
• Dimensions (WxHxL)
• 478x310x268 mm
• Operating temperature 0 – 50°
