Specifications

Make

MACKMA

Model

BM60 PROFESIONAL

Description

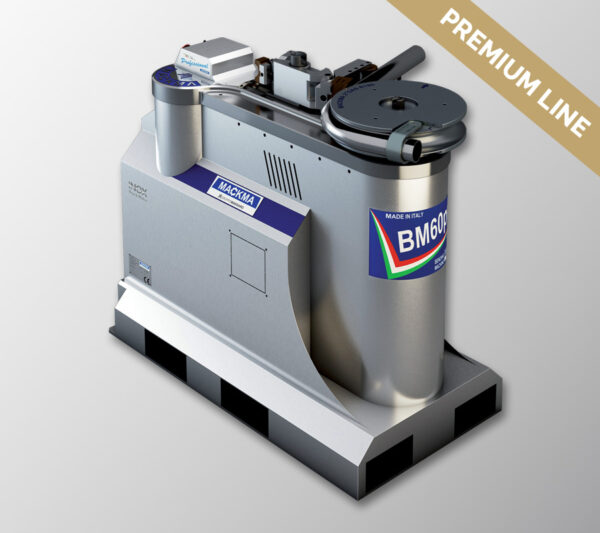

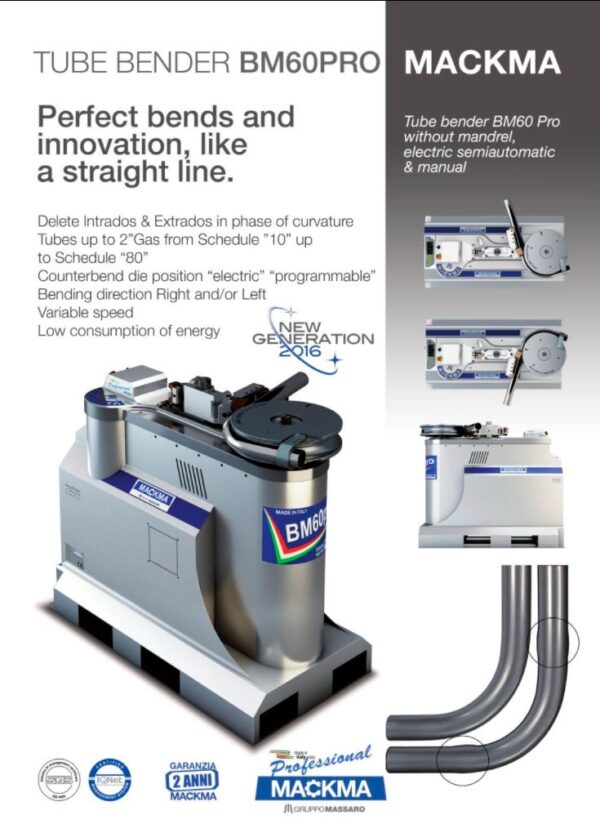

The BM60 PRO (or Professional) is a part of the MACKMA BM Series Non-Mandrel Rotary Benders – this series of Non-Mandrel Rotary Benders are THE ONLY Non-Mandrel Pipe Bending Machine Series capable of bending tubes and pipes to the left or right, by means of a reversible die holder, thanks to their innovative design, which is patented by the Italian manufacturer, MACKMA.

The BM60 PRO was created to meet the needs of customers that are “more demanding” from their production requirements. The entering and exiting of the bending steps is now a possibility and it becomes a reality, thank to MACKMA’s design. With the BM60 PRO, you have the ability of bending up to 2.35″ O.D. Round Tube (60mm O.D.) and 0.150″ / 4 mm in wall thickness.

The BM60 PRO MACKMA Non-Mandrel Rotary Bender can bend parts as low as 3 times the O.D. (Outer Diameter) and a maximum bending CLR (Center Line Radius) of 14.9″ / 380mm. Another feature that makes the BM60 PRO pipe bender unique is the connection that allows coupling the tapered internal/external pipe deburring tool. All of the features bundled into these machines ensures for high-repeatability, efficiency and accuracy for even the most demanding of markets.

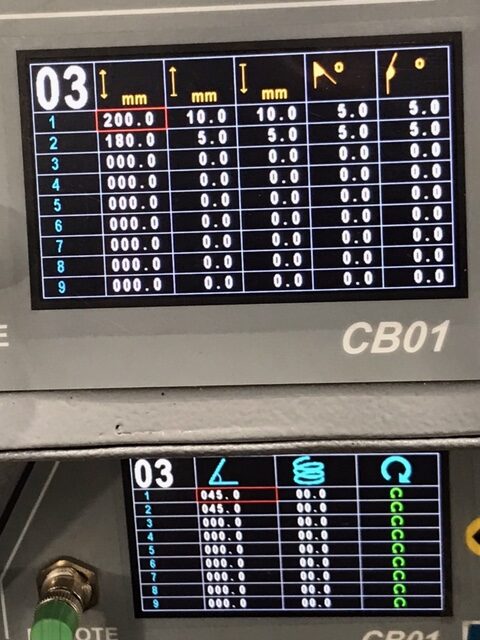

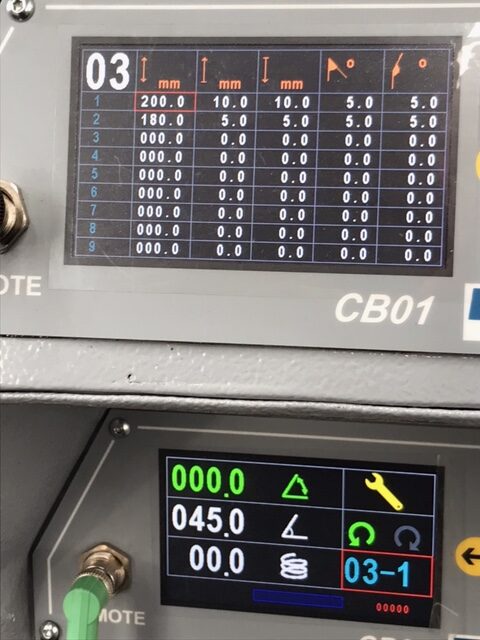

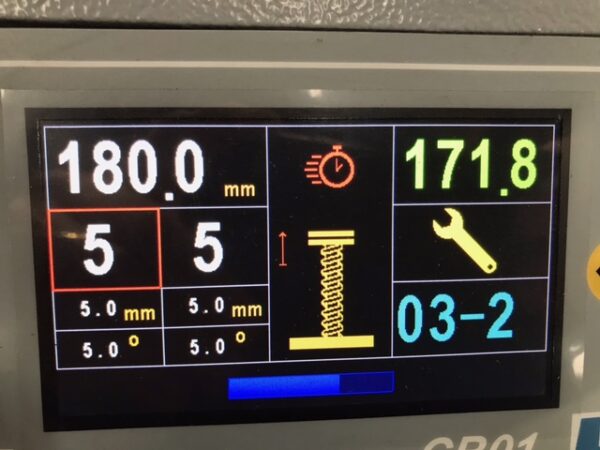

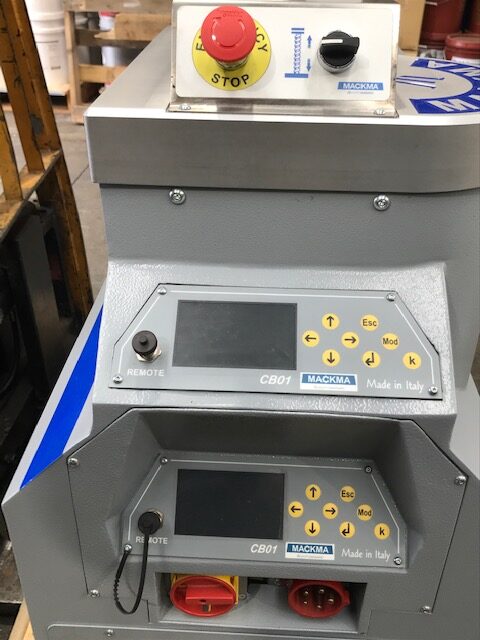

MACKMA BM60 PROFESIONAL, a patented solution for the needs of professional customers. Maximum elimination of internal and external deformations at each step. Easy and intuitive programming for professionals and beginners.

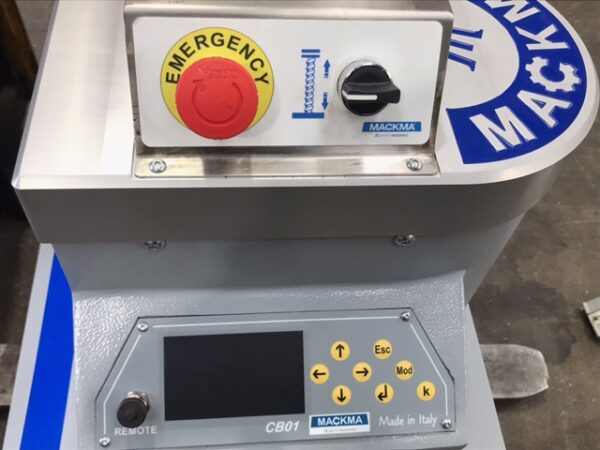

Bending speed (2.0 RPM) is monitored by a single-purpose inverter to ensure the desired speed according to the specified parameters. The installed potentiometer allows the operator to choose a speed that optimally suits a specific process.

A special shaft system allows you to use third-party tools available on the market. The inverter engine reduces power consumption to a minimum.

MACKMA uses only high-quality Italian components to ensure long-term reliability. Due to the high quality of the machines, MACKMA provides a standard warranty of 2 years.

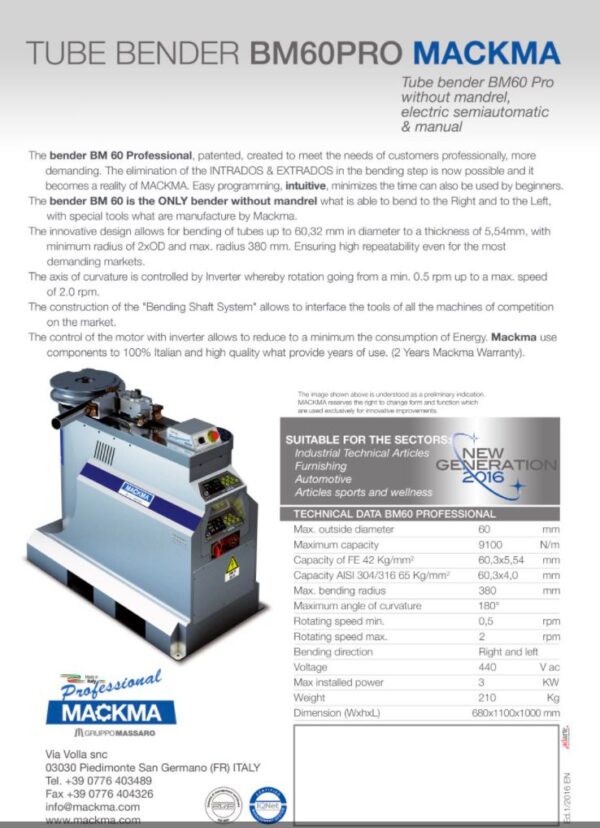

Main Technical Data BM60 PRO:

  • Maximum diameter 60 Mm
  • Maximum torque 9100 N/m
  • Max. FE diameter – 42 daN/mq 60.3×5.54 Mm
  • Max. diameter AISI 304/316 – 65 kg/mq 60.3×4.0 Mm
  • Maximum radio 380 Mm
  • Maximum bending angle 180°
  • Minimum rotation speed 0,5 Rpm
  • Minimum rotation speed 2 Rpm
  • Bending direction Left and right
  • Voltage 440 In ac
  • Maximum performance 3 Kw
  • Weight 210 Kg
  • Dimensions (W x H x L) 680 x 1100 x 1000 mm
  • Operating temperature 0 – 50° C
