View Brochure

Specifications

Make

MACKMA

Model

BM76

Description

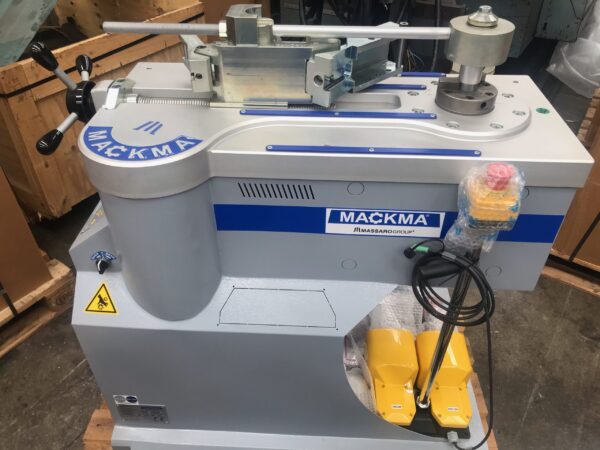

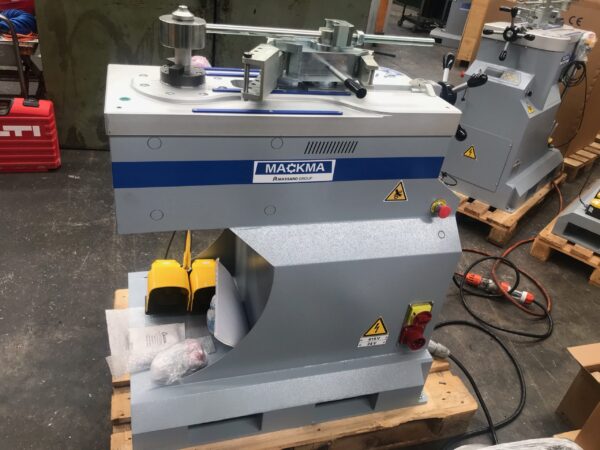

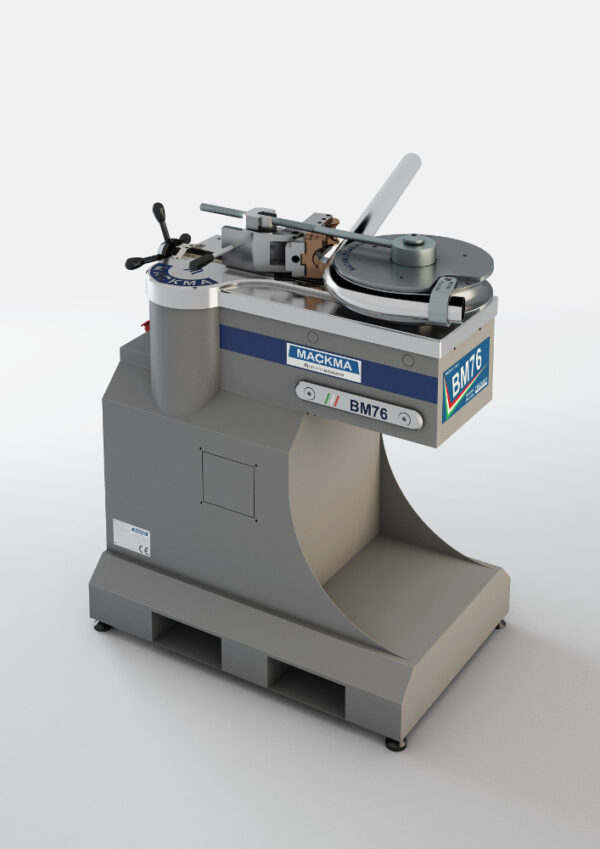

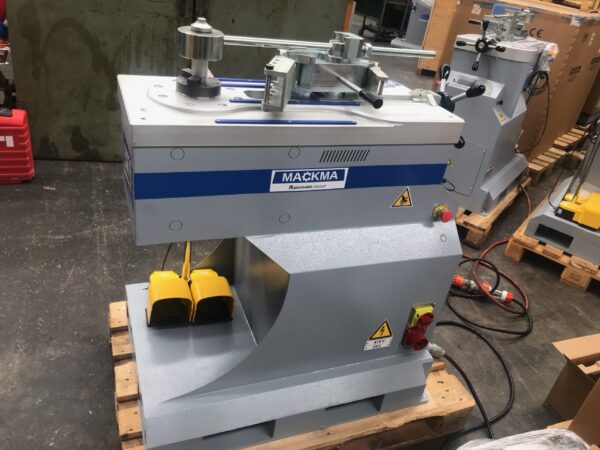

MACKMA – BM76 – Rotary Draw Bending Machine

Non Mandrel Pipe Bending Machines

New & in stock for immediate delivery

NOW $28,678+GST
The MAKMA BM76 pipe bender is the only non-mandrel pipe bender that allows for both left and right bending with particular tools we manufacture.

Its innovative design allows you to bend pipes with a diameter up to 76 mm for a 3 mm thickness with a 3xOD minimum radius and a 370 mm maximum radius. All this ensures high repeatability for even the most demanding markets.

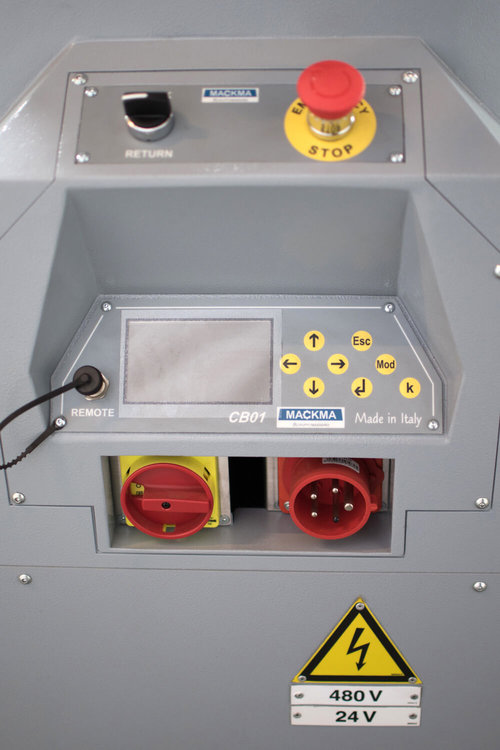

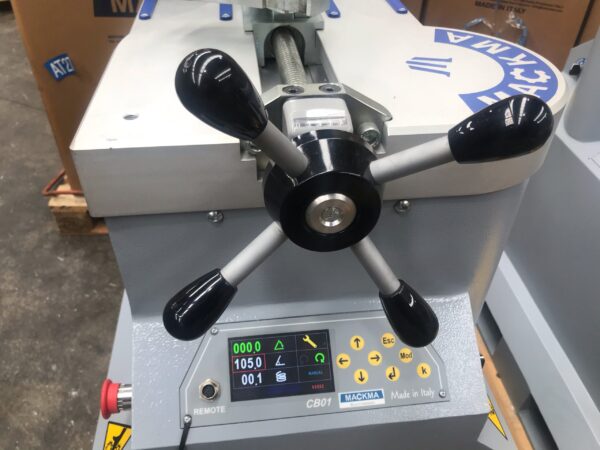

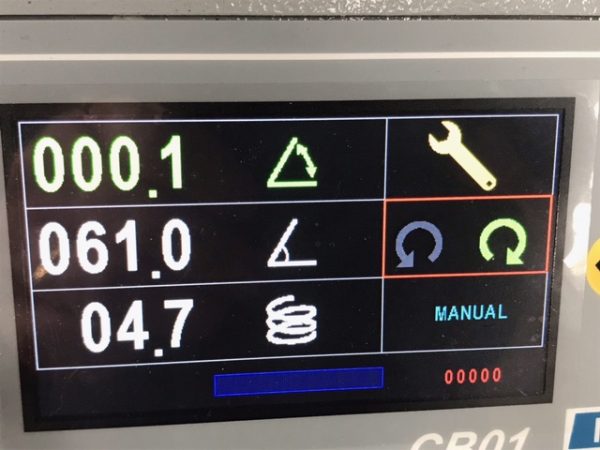

The curvature axis is inverter controlled; therefore, the rotational speed ranges between 1.0 revs/min and 2.0 revs/min. This is also possible thanks to the potentiometer installed, which allows the operator to choose the rotational speed that best suits the pipe to be bended.

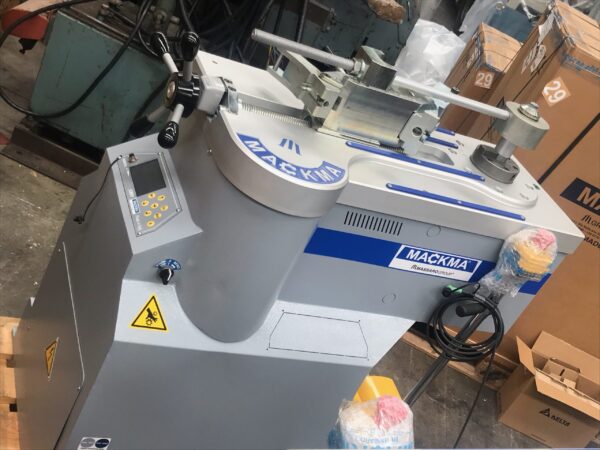

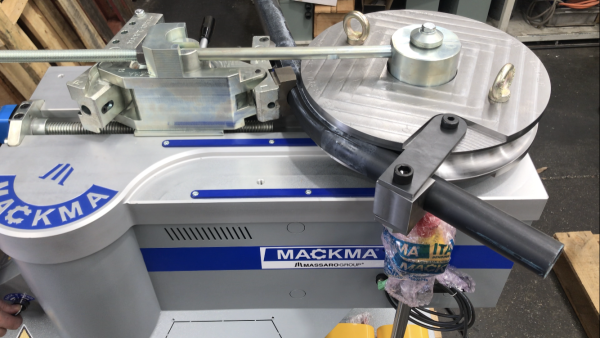

The cantilever head allows the creation of complex figures, which require the pipe to pass under the head.

The special shaft system allows the machine to be interfaced with the tools of competition machinery currently available on the market. The inverter controlled motor minimises power consumption.

  • All-Electric with Inverter for Energy Savings
  • Capacity – 76mm Dia x 4mm Wall
  • Left/Right Bend Direction with Standard Tooling
  • Cantilevered Head for Under-head Bending (Model BM42 to BM76)
  • Minimal Distance between Bends

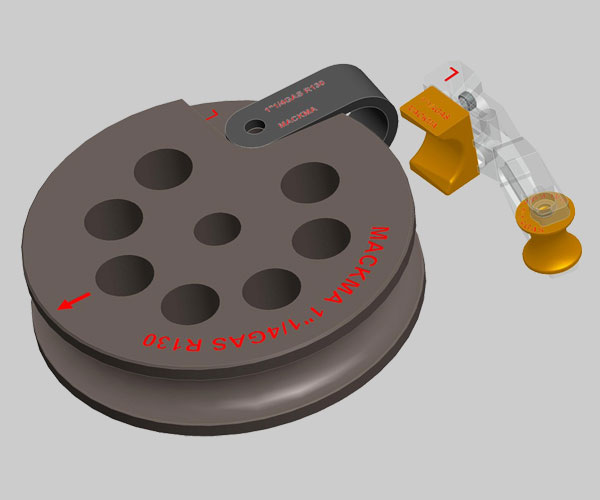

  • Adaptation to accept other manufacturer’s bend dies

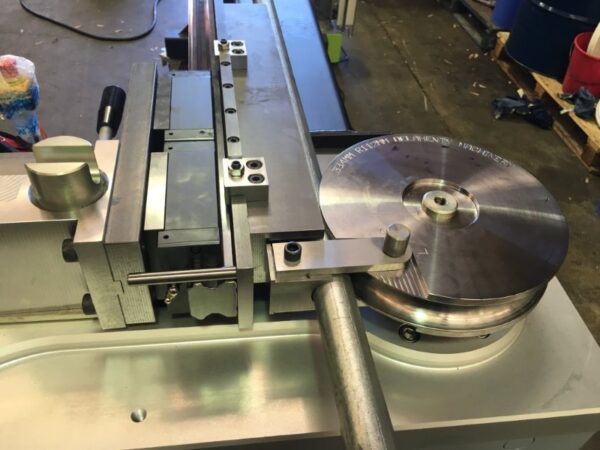

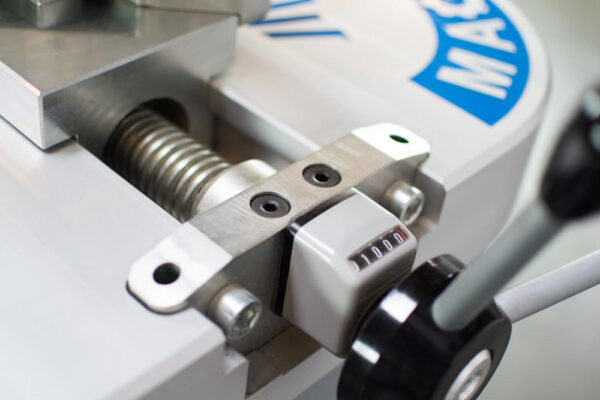

  • Quick release return clamp design minimising tube marking
  • Follower slide options available

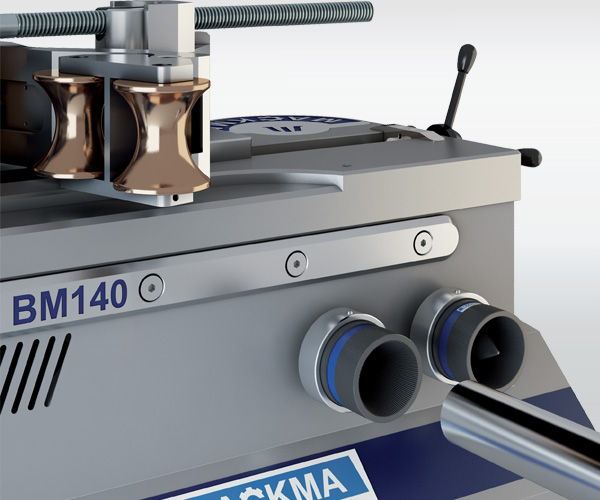

  • Connection that allows coupling the tapered internal/external pipe deburring tool.
