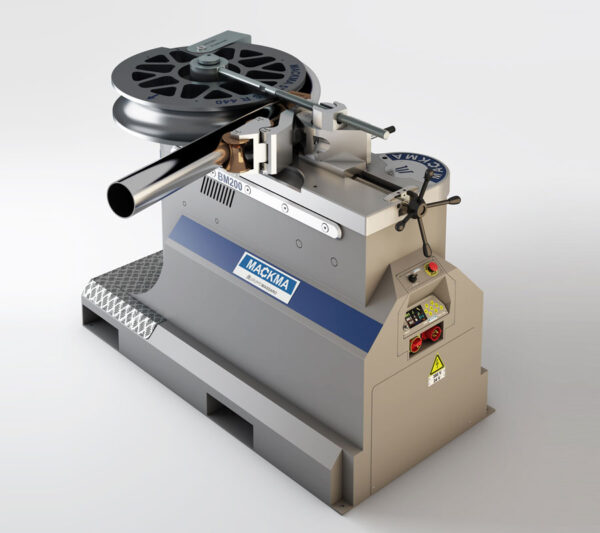

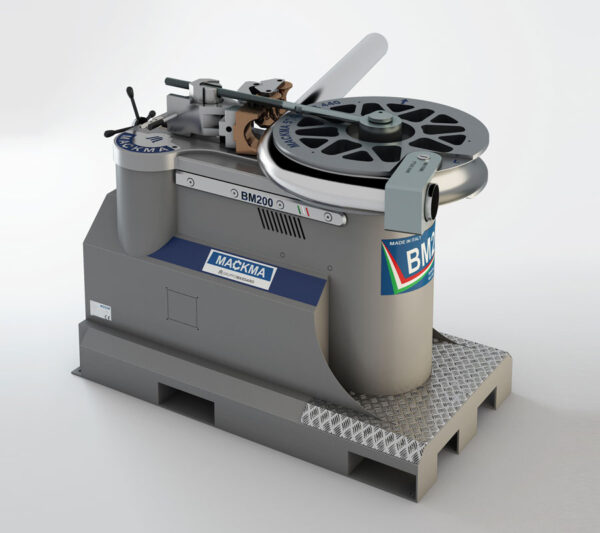

MACKMA – BM200 – Non Mandrel Tube & Pipe Bender

MACKMA - BM200 - Non Mandrel Tube & Pipe BenderMACKMA - BM200 - Non Mandrel Tube & Pipe Bender
MACKMA - BM200 - Non Mandrel Tube & Pipe BenderMACKMA - BM200 - Non Mandrel Tube & Pipe Bender

Specifications

Make

MACKMA

Model

BM 200

Description

Suitable for the following sectors:

  • Industrial technical articles
  • Furniture
  • Automotive
  • Motorcycle and boating
  • Sport and wellness items
  • Piping

Main technical data:

Pipe Max Outer Diameter 219 mm
Max Torque 118.000 N/m
Capability with FE – 42 kg/mq 168,3×10 mm
Capability with FE – 35 kg/mq 219×6,3 mm
Capability with AISI 304/316 – 65 kg/mq 168,3×7 mm
Maximum radius 950 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 380 V ac
Max installed power 18,5 KW
Weight 5100 Kg
Dimensions (WxHxL)
2550x1550x1380 mm
Operating temperature 0 – 50°
