Specifications

Make

JIH

Model

P4T

Description

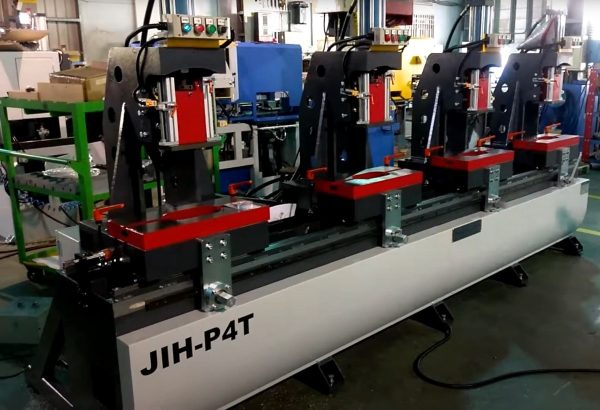

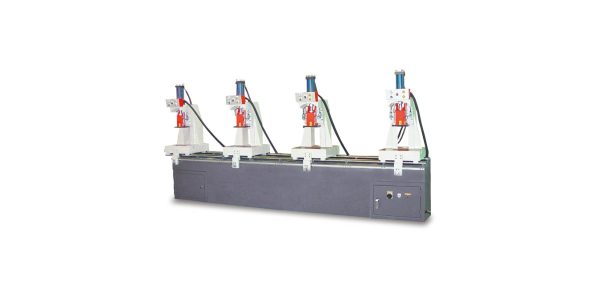

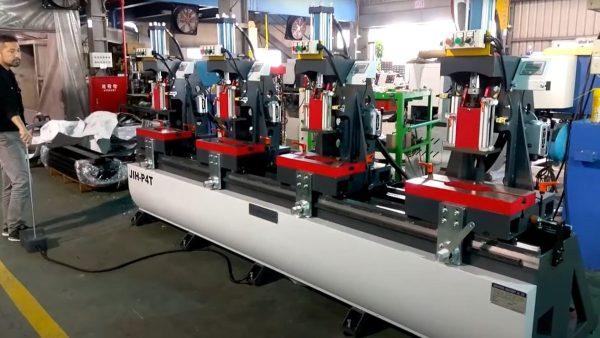

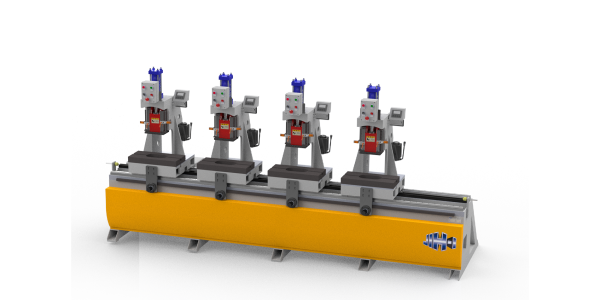

JIH-P4T – Four Head Hydraulic Press

Features

  1. This machine is designed for punching hold and pressing.
  2. It has an easy operate hydraulic system that delivers powerful punching performance at very low noise levels.
  3. It has both manual and automatic operation capabilities. When the foot panel switch is press, the machine will perform punching hold (pressing) automatically.
  4. Suitable for two-layer mold machining ( JIH-250B ).
  5. The upper base is organic whole shaping, which has strong tenacity, maximum impact resistance and long service life
  6. The feature of each punching head of this machine is like JIH-250B
  7. Suitable for the punching of multimolds.  Single head punching or multi-head punching are optional.  Each punching head is movable.
  8. This machine can be refitted into a drilling machine or cutting table.
ModelJIH-P4T
Punching Force10 ton x 4
Motor3HP x 4 (5HP Opt. for increasing production)
Stroke150 mm
Punching Height260 mm
Hydraulic Pressure170kg / cm2 x 4
Table Area250 x 520mm ( 4 pieces )
Table Height From Floor790 mm
Machine Dim.
(L x W x H)
3,700 x 1,000 x 1,820 mm
Packing Dim.
(L x W x H)
3,820 x 1,120 x 2,000 mm
Net / Gross Weight1,300 / 1,700 kgs



Optional Safety Device

  1. Punching ( Pressing ) is controlled by foot panel switch with sensor of safety.
  2. Punching ( Pressing ) is controlled by double push-button switch.

Application Punching

Aluminum frame, aluminum extrusion, leather, brass, plastic, steel.

  1. Quicken punching head speed(high-speed punching head).
  2. The punch head can choose between equipped with a limit switch, equipped with a timer switch or equipped with pressure switch for controlling the stroke
