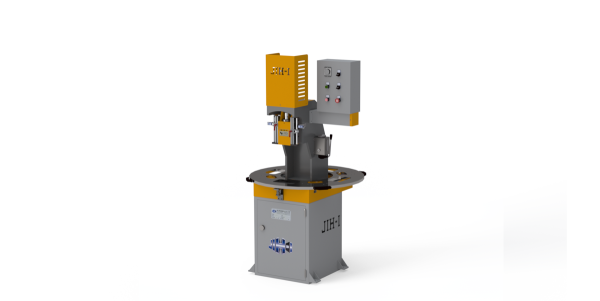

JIH-250R – Rotary Hydraulic Press 1
Specifications
| Make | JIH |
|---|---|
| Model | 250R |
Description
JIH-250R – Rotary Hydraulic Press 1
This machine is designed for punching hold and pressing.
It has an easy operate hydraulic system that delivers powerful punching performance at very low noise levels.
It has both manual and automatic operation capabilities.
When the foot panel switch is press, the machine will perform punching hold (pressing) automatically. Suitable for two-layer mold machining (JIH-250B, JIH-250C).
The upper base is organic whole shaping, which has strong tenacity, maximum impact resistance and long service life (JIH-250B, JIH-250C).

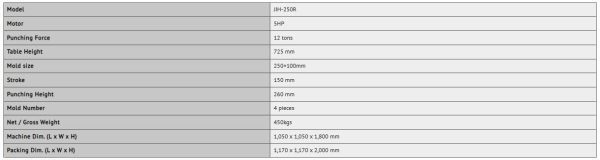

Product Specification
| Model | JIH-250R |
|---|---|
| Motor | 5HP |
| Punching Force | 12 tons |
| Table Height | 725 mm |
| Mold size | 250×100mm |
| Stroke | 150 mm |
| Punching Height | 260 mm |
| Mold Number | 4 pieces |
| Net / Gross Weight | 450kgs |
| Machine Dim. (L x W x H) | 1,050 x 1,050 x 1,800 mm |
| Packing Dim. (L x W x H) | 1,170 x 1,170 x 2,000 mm |
Optional:
- CE Standard
- Mold
