Specifications

Make

JIH

Model

250

Description

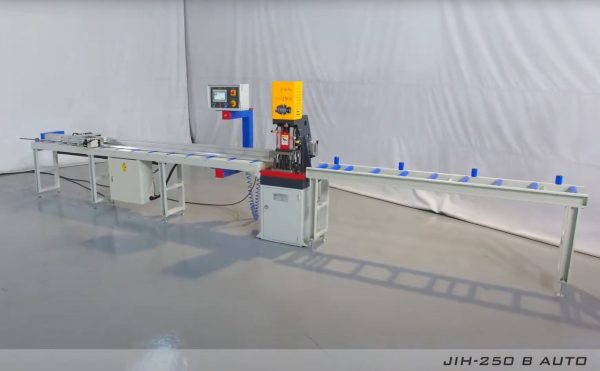

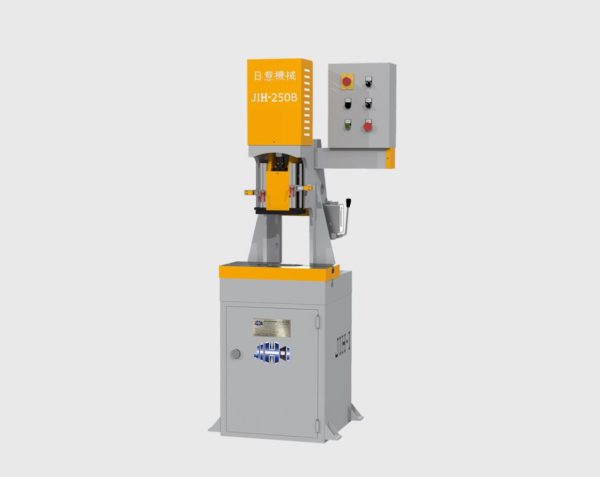

JIH-250 – Hydraulic Press

This machine is designed for punching hold and pressing. It has an easy operate hydraulic system that delivers powerful punching performance at very low noise levels.

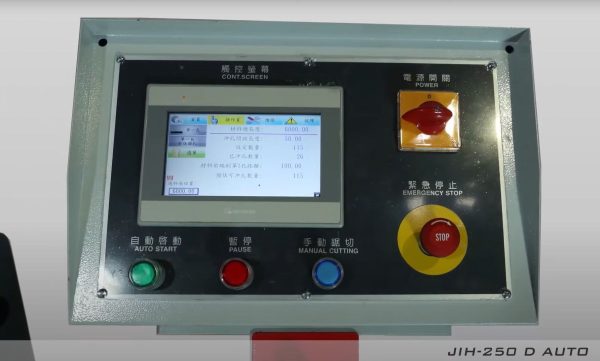

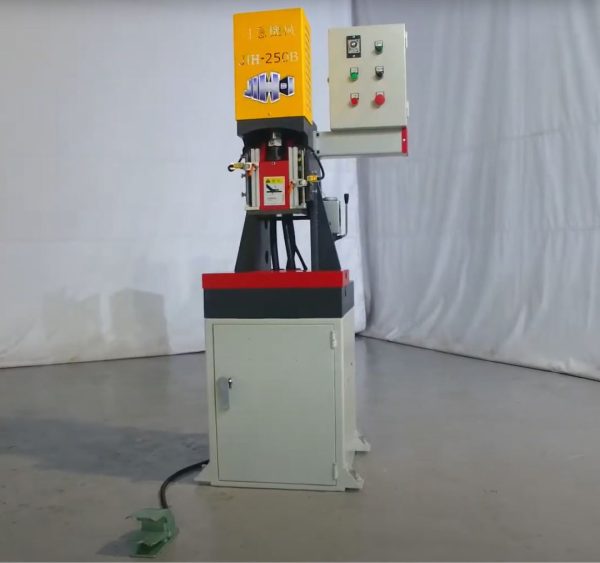

  • It has both manual and automatic operation capabilities. When the foot panel switch is press, the machine will perform punching hold (pressing) automatically.

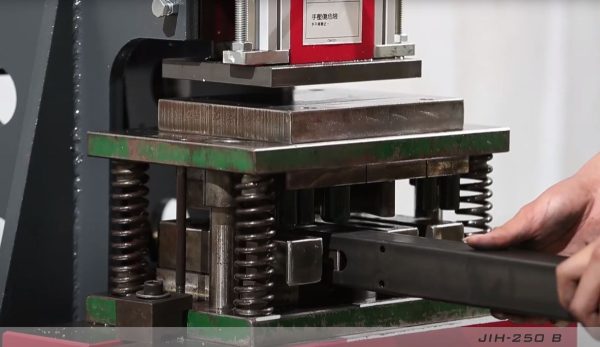

  • Suitable for two-layer mold machining (JIH-250B, JIH-250C).
  • The upper base is organic whole shaping, which has strong tenacity, maximum impact resistance and long service life ( JIH-250B, JIH-250C ).

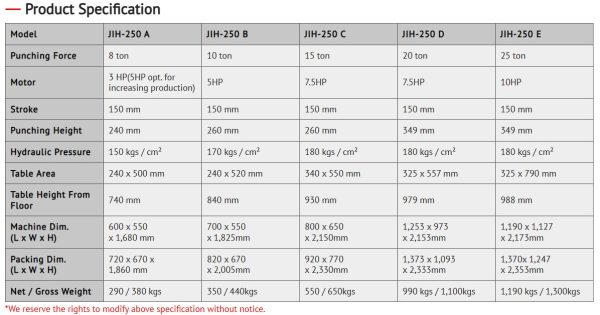

ModelJIH-250 AJIH-250 BJIH-250 CJIH-250 DJIH-250 E
Punching Force8 ton10 ton15 ton20 ton25 ton
Motor3 HP(5HP opt. for increasing production)5HP7.5HP7.5HP10HP
Stroke150 mm150 mm150 mm150 mm150 mm
Punching Height240 mm260 mm260 mm349 mm349 mm
Hydraulic Pressure150 kgs / cm²170 kgs / cm²180 kgs / cm²180 kgs / cm²180 kgs / cm²
Table Area240 x 500 mm240 x 520 mm340 x 550 mm325 x 557 mm325 x 790 mm
Table Height From Floor740 mm840 mm930 mm979 mm988 mm
Machine Dim.
(L x W x H)
600 x 550
x 1,680 mm
700 x 550
x 1,825mm
800 x 650
x 2,150mm
1,253 x 973
x 2,153mm
1,190 x 1,127
x 2,173mm
Packing Dim.
(L x W x H)
720 x 670 x
1,860 mm
820 x 670
x 2,005mm
920 x 770
x 2,330mm
1,373 x 1,093
x 2,333mm
1,370x 1,247
x 2,353mm
Net / Gross Weight290 / 380 kgs350 / 440kgs550 / 650kgs990 kgs / 1,100kgs1,190 kgs / 1,300kgs

 Optional Safety Device

  1. Punching ( Pressing ) is controlled by foot panel switch with sensor of safety.
  2. Punching ( Pressing ) is controlled by double push-button switch.

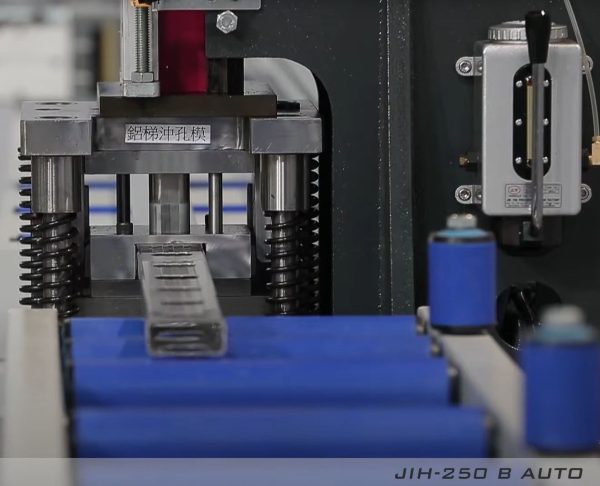

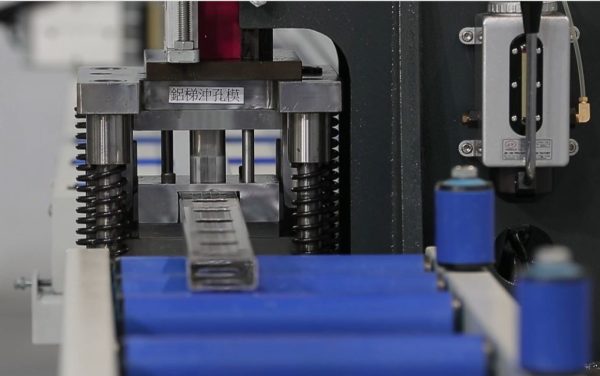

Application Punching

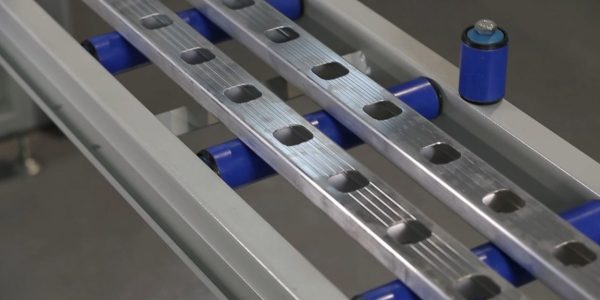

Aluminum frame, aluminum extrusion, leather, brass, plastic, steel.

  1. Quicken punching head speed(high-speed punching head).
  2. The punch head can choose between equipped with a limit switch, equipped with a timer switch or equipped with pressure switch for controlling the stroke.
