Specifications

Make

JIH

Model

NC150

Description

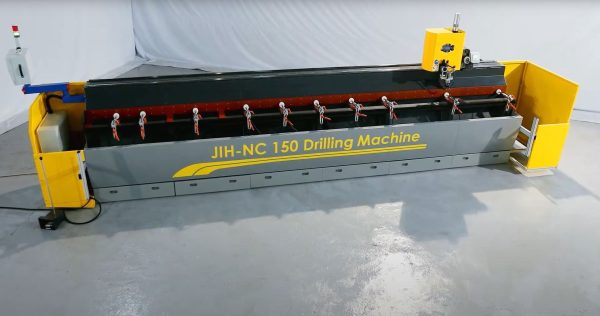

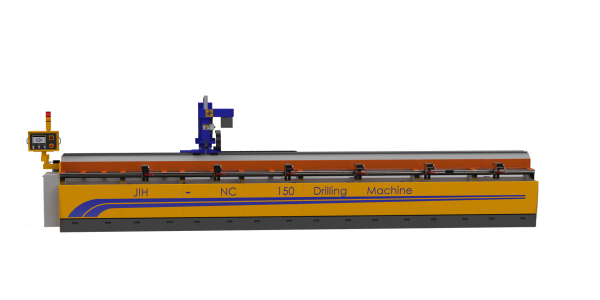

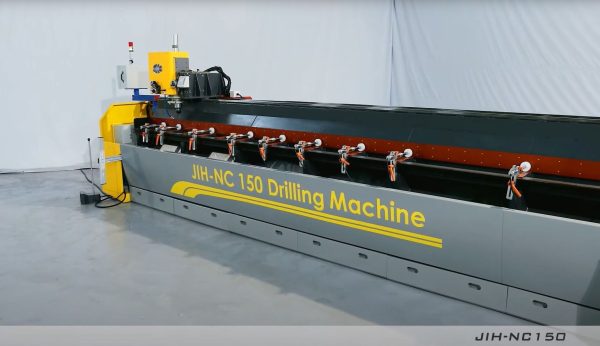

JIH-NC150 – Automatic Drilling Machine

Features

  1. Automatic drilling operation allows for equal or unequal hole distance
  2. PLC control

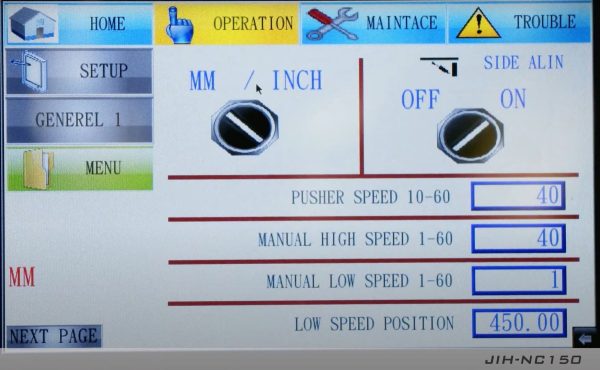

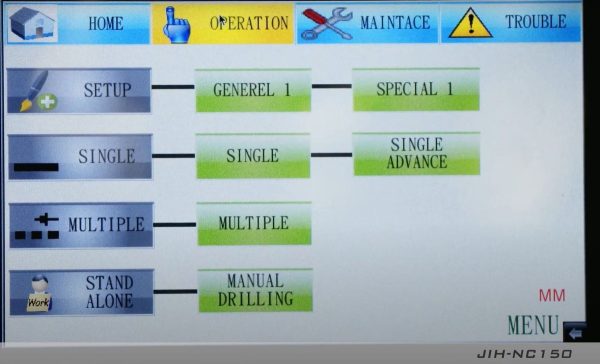

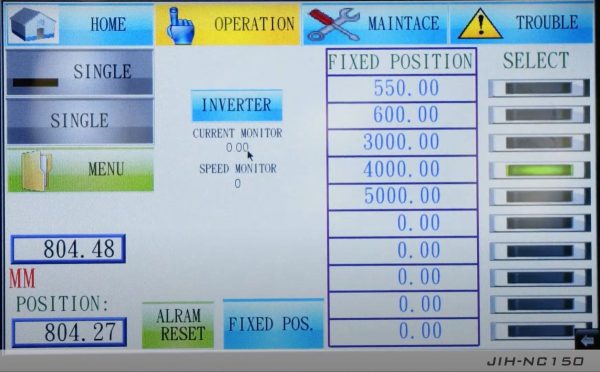

  3. Touch-sensing screen
  4. Allows for a selection of manual or automatic drilling mode
  5. Forced oil mist lubrication
  6. Allows for multiple settings, maximum memory capacity: 100 sets

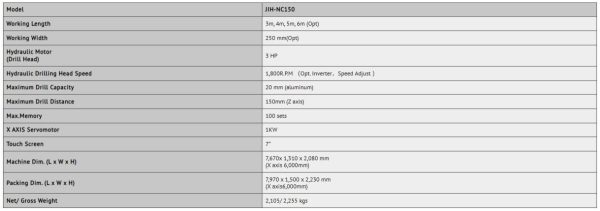

Product Specification

ModelJIH-NC150
Working Length3m, 4m, 5m, 6m (Opt)
Working Width250 mm(Opt)
Hydraulic Motor
(Drill Head)
3 HP
Hydraulic Drilling Head Speed1,800R.P.M (Opt. Inverter,Speed Adjust )
Maximum Drill Capacity20 mm (aluminum)
Maximum Drill Distance150mm (Z axis)
Max.Memory100 sets
X AXIS Servomotor1KW
Touch Screen7”
Machine Dim. (L x W x H)7,670x 1,310 x 2,080 mm
(X axis 6,000mm)
Packing Dim. (L x W x H)7,970 x 1,500 x 2,230 mm
(X axis6,000mm)
Net/ Gross Weight2,105/ 2,255 kgs
