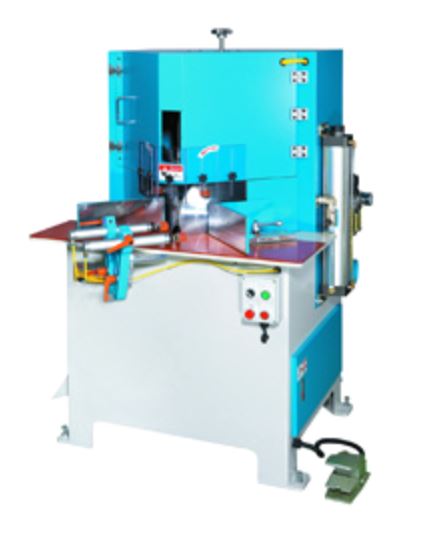

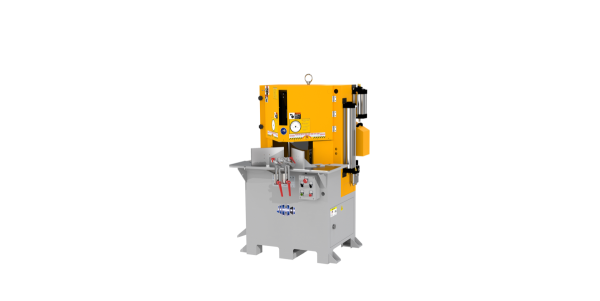

JIH-14C Type – 45° Double-Blade Sawing Machine Series

Feature

  1. Specially designed for cutting high workpieces a miter saw features over pivot type.
  2. Saw blades feed vertically. Maximum height of cutting is 200mm.

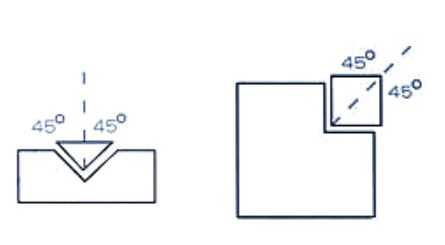

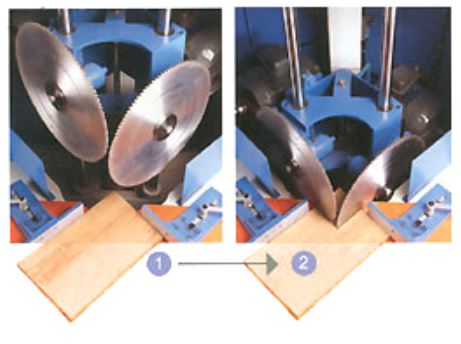

  3. Two staggered saw blades are positioned at 45 vertically to reduce workpiece waste to a minimum.
  4. Especially ideal for notching applications that permit workpiece stack cutting for greatly upgrading efficiency.
  5. Saw blades move vertically on two precision Shafts. assuring consistent cutting.
  6. Compensation for sawblade wear is easy to adjust.
  7. Saw blade height is adjustable for saving time of cutting.
ModelJIH-14C Type
Cutting Angle45°
Cutting Width90 mm depth ( or 130mmx130mm )
Cutting Height180 mm
Saw Blade Sizes14” x 1” x 2 pcs
Spindle Speed3,200 R.P.M.
Motor3 HP x 2
Clamping WayVertical clamp x 2 pcs
Table AreaHorizontal clamps x 2(depend on machine function)
Table Height From Floor850 mm
Infeed/Outfeed Conveyor Length1~7m(opt.)
Net/Gross Weight350 / 435 kgs
Air Pressure4-6kgs / cm2
Machine Dim. (LxWxH)1,000 x 910 x 1,580 mm
Packing Dim. (LxWxH)1,120 x 1,090 x 1,780 mm
