View Brochure

Specifications

Make

JIH

Model

350L – 45°

Description

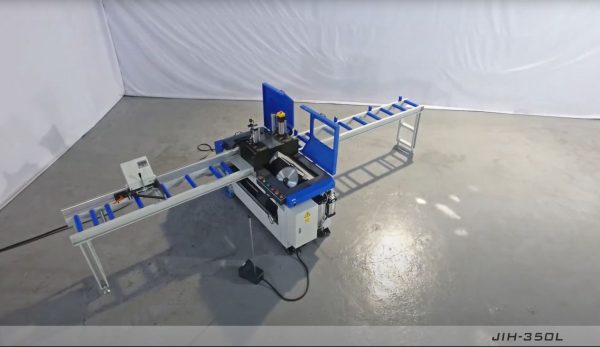

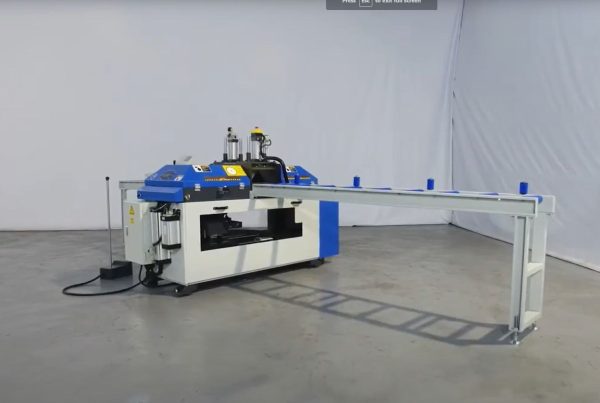

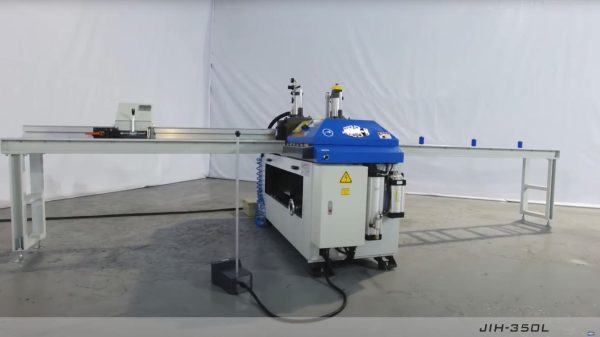

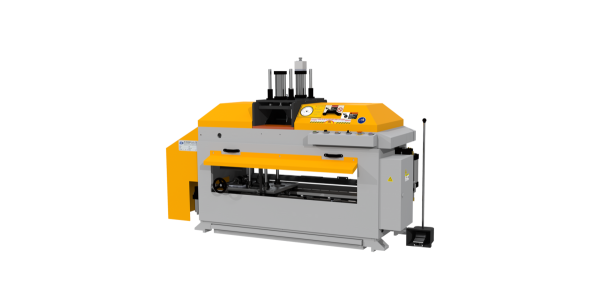

JIH-350L – 45° Double Blade Angular Sawing Machine Series

Feature

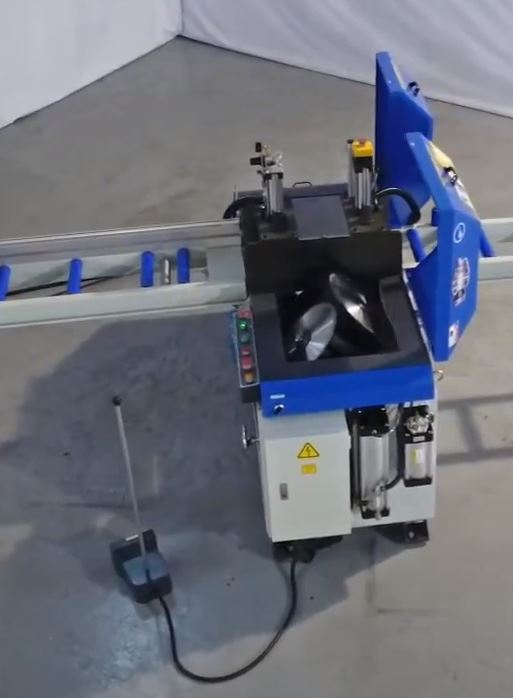

  1. When the foot panel switch is pressed the machine will perform material clamping and cutting automatically
  2. Horizontal cutting and Saw moves on linear guide way, that assures accurate and large cutting.
  3. Cutting feed is driven by an air/hydraulic combination power for smooth feed speed.

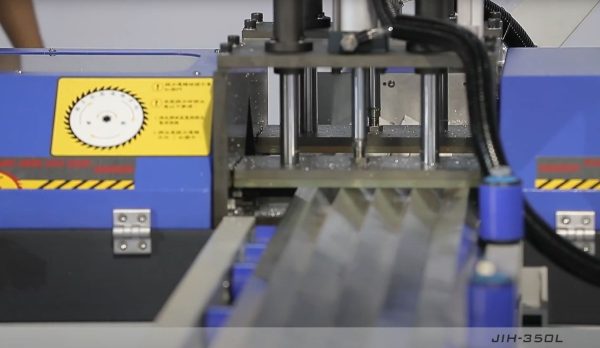

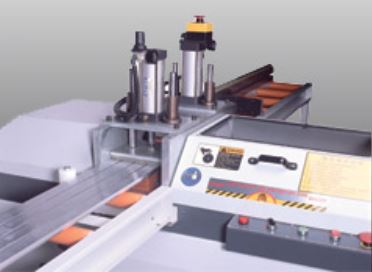

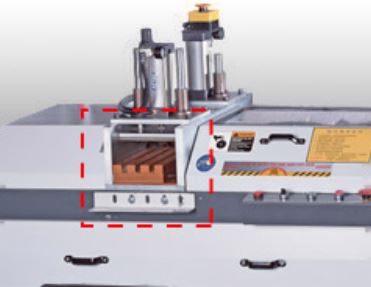

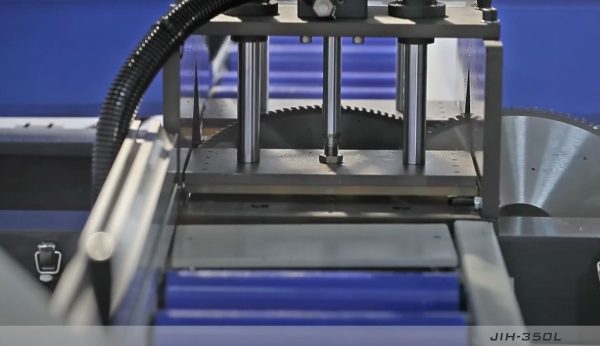

  4. Two vertical work piece clamping design ensures extremely firm for any type of aluminum work piece
  5. Work piece clamping pressure is adjustable to eliminate material deformation problem.

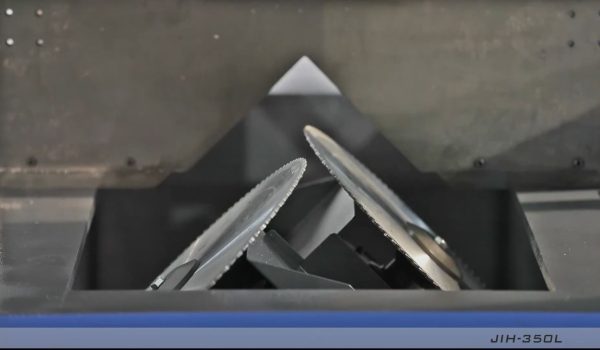

  6. Automatic oil mist cooling for saw blades provides burr-free surface of cut, while extending saw blade life.

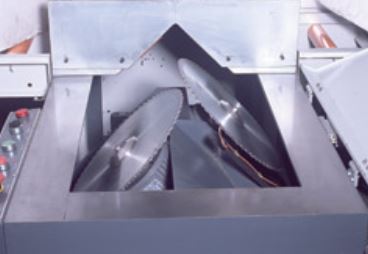

  7. Alternatively saw blades straight feed in horizontal direction allows large cutting width.
  8. Equipped with wear-resistant linear motion guides for accurate angle of cut.
  9. Cutting angle is easy to adjust.
  10. Gap between gauge and saw blade is adjustable no burr after sawing.

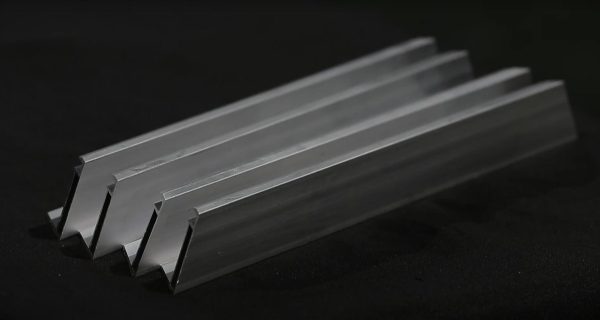

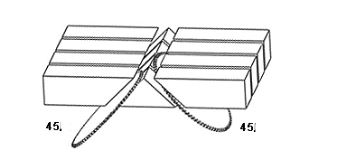

The machine performs a 45 degrees miter cut. Designed for high speed cutting of extrudes strip, door and window frames.

Horizontal cutting and saw move on linear guide way, that assure accurate and large cutting.

Special mold for irregular frame—optional

Standard Equipment

14′ saw blade x 2pcs. replace saw blade tool

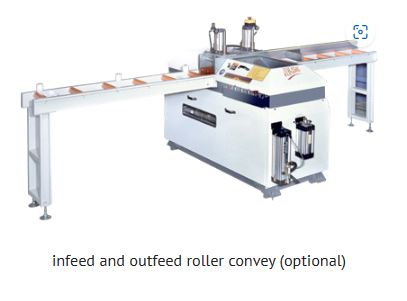

Optional: Infeed, Outfeed Roller Table, With Auto3000 for Automatic Positioning, Automatic Feeding (Pushing), Automatic Cutting, Saw Blade

ModelJIH-350 L Type
Cutting Angle45°
Cutting Width350mm (400 opt.)
Cutting Height70 mm ( opt. 90mm)
Saw Blade Size14” x 1” x 2 pcs
Spindle Speed3,200R.P.M
Motor2HP x 2
Clamping WayVertical clamping x 2pcs
Table Area500x320mm
Table Height From Floor840mm
Infeed/Outfeed Conveyor Length1~7M(for opt.)
Net/Gross Weight650 / 780kgs
Air Pressure4 – 6 kgs / cm2
Machine Dimensions
( LxWxH )
1,930x725x1,300mm
Packing Dimensions
( LxWxH )
2,050x845x1,500mm
