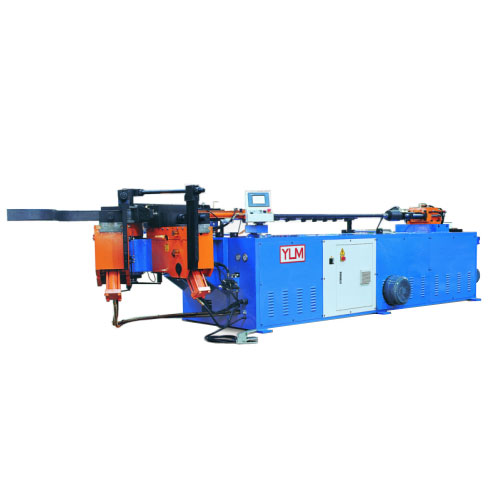

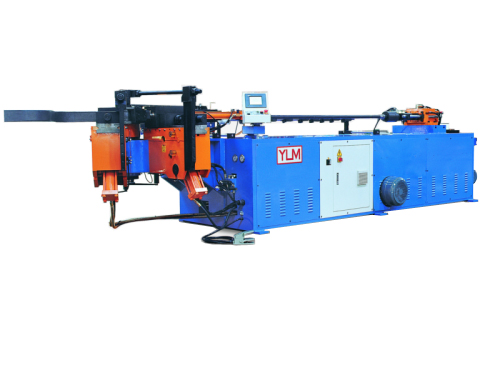

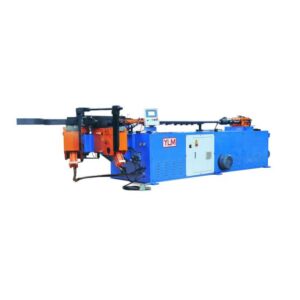

Description

Features:

  • One axis numerical controlled of bending-axis by encoder / hydraulic valves
  • Bending angle controlled by micro encoder, provides ± 0.1 tolerance
  • Mitsubishi PLC ( Programmable Logic Control ) system
  • Provides 200 programs memory, each program with 20 angles (bends)
  • Provides anticipated two steps mandrel retraction
  • Provides pressure die booster
  • Provides pressure die micro adjustment of backward to protect the ball mandrel.
  • Provides pressure die repetition
  • Bending movement time can be programmable to meet different demands.
  • 6” display touch screen to operate the machine easily
  • Emergency stop of two safety plates with bending arm for working safety

Bending Tooling & Accessories:

  • Bending die
  • Clamping die
  • Pressure die / guide die
  • Mandrel (bullet shape)
  • 6 pieces of stoppers for tube length control
  • A working table for tube rotation fixtures (standard size)
  • Wiper die rack
  • Ball mandrel / multiple-direction ball mandrel (optional)
  • Wiper die (optional)
  • Split bending die (optional)

hickness up to 10 m/m.

NC tube bender, NC Hydraulic Tube Bender Machine

  • Based on the tube diameter, wall thickness and bending radius, machine operator may select to bending application with or without mandrel.
  • The bending-die spindle is solid one, will easy have tooling changing, provides the minimum bending radius 1-1.5 DR.
  • We can supply wide range of bending machines capable of bending tube O.D. up to 203 mm (8″ diameter).
    Tube wall thickness up to 10 m/m.
  • Simple to work and user friendly functions allow non-technician and new operator to joint production force rapidly.

CAPACITY CHART

The most comprehensive range of machines and applicable industries

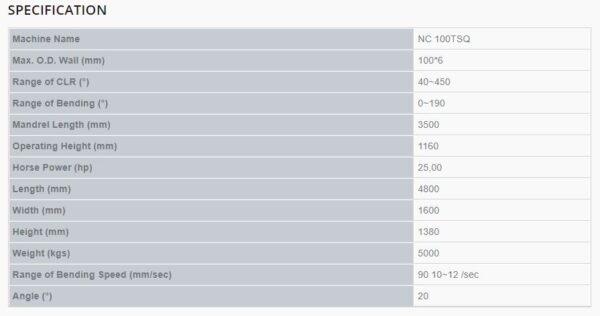

SPECIFICATION

Machine Name NC 100TSQ
Max. O.D. Wall (mm) 100*6
Range of CLR (°) 40~450
Range of Bending (°) 0~190
Mandrel Length (mm) 3500
Operating Height (mm) 1160
Horse Power (hp) 25,00
Length (mm) 4800
Width (mm) 1600
Height (mm) 1380
Weight (kgs) 5000
Range of Bending Speed (mm/sec) 90 10~12 /sec
Angle (°) 20
