YLM – NC-44 – NC Tube Pipe Bender

Features:

• One-axis numerical control of the bending axis by encoder / hydraulic valves
• Bending angle controlled by micro encoder, provides ± 0.1 tolerance
• Mitsubishi PLC ( Programmable Logic Controller) system
• Provides 200 programs memory, each program with 20 angles (bends)
• Provides the anticipated two-step mandrel retraction
• Provides pressure die booster
• Provides pressure die micro-adjustment backward to protect the ball mandrel.
• Provides pressure die repetition
• Bending movement time can be programmed to meet different demands.
• 6” display touch screen to operate the machine easily
• Emergency stop of two safety plates with a bending arm for working safety

Bending tooling & Accessories:

• Bending die
• Clamping die
• Pressure die / guide die
• Mandrel (bullet shape)
• 6 pieces of stoppers for tube length control
• A working table for tube rotation fixtures (standard size)
• Wiper die Rack
• Ball mandrel / multiple-direction ball mandrel (optional)
• Wiper die (optional)
• Split bending die (optional)

The machine adopts a solenoid valve and an integrated circuit to control separately, which can extend the life of the hydraulic parts.
The computer system can automatically detect a malfunctioning point to allow the operator to solve problems.
We can supply a wide range of bending machines capable of bending tube O.D. up to 203 mm (8” diameter). Tube wall thickness up to 10 m/m.

NC tube bender, NC Hydraulic Tube Bender Machine

• The machine with a solenoid valve and an integrated circuit to control individual bending motions separately, which also extends the lifetime of the hydraulic parts.
• Three-step hydraulic oil flow for better coding and precipitation to prevent oil deterioration.
• A large model bending machine is equipped with a manual hydraulic adjusting valve to control the speed of the bending motion.
• Bending motion is controlled by a low-speed positioning device to obtain the accuracy of the bending angles.
• Various angles can be programmed to work multiple bending sequences.
  Eliminating tube material feeding/loading time.
• Both manual and automatic operation are available, and all machines are equipped with an emergency stop device.
• The main shaft is specially heat-treated.
  All parts are tested and assembled with strict quality control to meet the specifications of ISO 9001 and the CE standard.

CAPACITY CHART

The most comprehensive range of machines and applicable industries

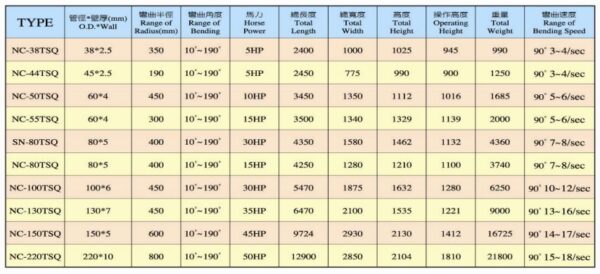

SPECIFICATION
