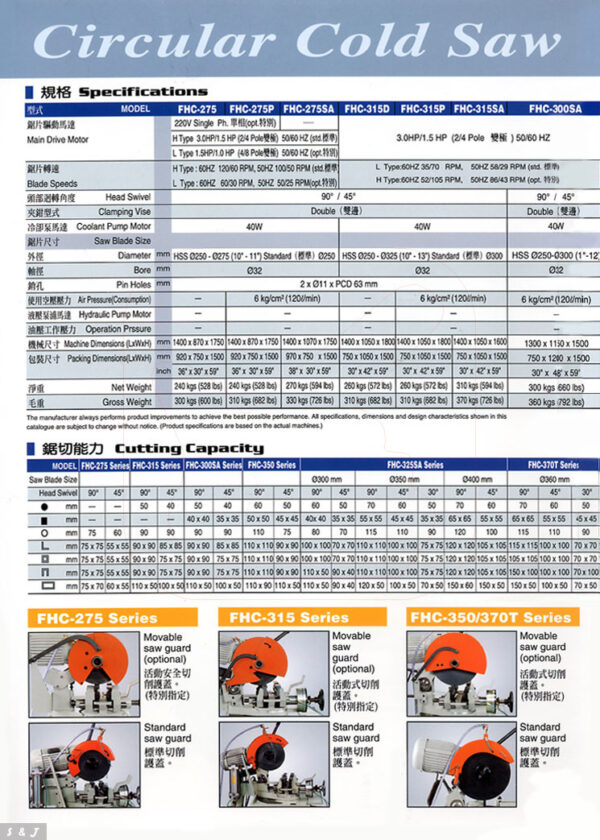

Specifications

Make

Fong Ho

Description

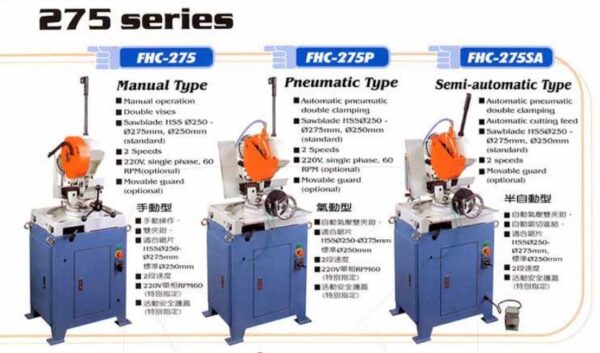

3 models available in the FHC-275 Series
– MODEL FHC-275D (manual type)
– MODEL FHC-275P (pneumatic type)
– MODEL FHC-275SA (semi-automatic type)

Standard Equipment:
Motor, switch, complete cooling system, adjustable stop, service tools.

Optional Equipment:
Saw blade, cutting fluid.

——

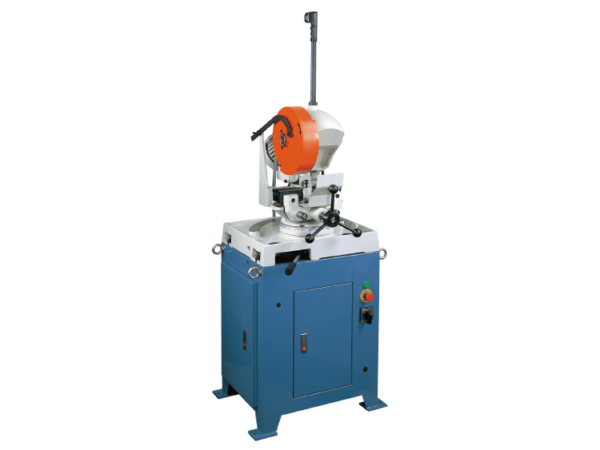

MODEL FHC-275D (manual type)
-Manual operation.
-Double vises.
-Sawblade HSS Ø250~ Ø275mm,Ø250mm.(standard)
-2 Speeds.
-220V, single phase, 60 RPM. (optional)

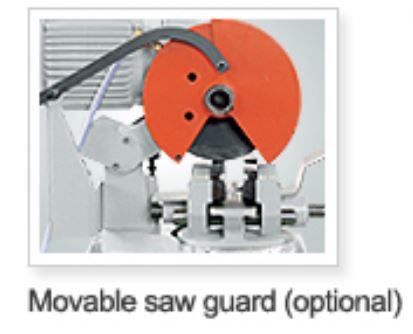

-Movable guard. (standard)
Main Drive Motor 220V Single Ph. (opt.)
H Type 3.0HP/1.5HP(2/4 Pole) 50/60 HZ (std.)
L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM (std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM (opt.)
Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS Ø250 – Ø275(10″-11″) Standard Ø250
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) —
Hydraulic Pump Motor —
Operation Pressure —
Machine Dimensions (LxWxH) (mm) 1400x870x1750
Packing Dimensions (LxWxH) (mm) 750x880x1450
Packing Dimensions (inch) 30″x35″x58″
Net Weight 240 kgs(528 lbs)
Gross Weight 300 kgs(600 lbs)

—–

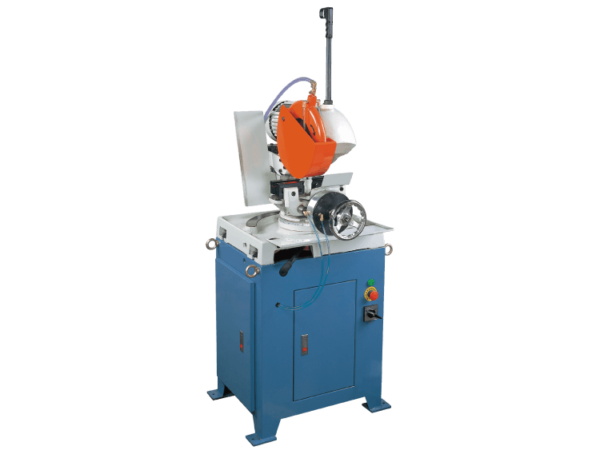

MODEL FHC-275P (pneumatic type)
-Automatic pneumatic double clamping.
-Sawblade HSS Ø250 ~ Ø275mm, Ø250mm. (standard)
-2 Speeds.
-220V, single phase, 60 RPM. (optional)
-Movable guard. (standard)
Main Drive Motor 220V Single Ph.(opt.)
H Type 3.0/1.5 HP(2/4 Pole) 50/60 HZ (std.)
L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM(std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM(opt.)
Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS Ø250 – Ø275(10″-11″) Standard Ø250
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) 6 kg/cm² (120 ? /min)
Hydraulic Pump Motor —
Operation Pressure —
Machine Dimensions (LxWxH) (mm) 1400x870x1750
Packing Dimensions (LxWxH) (mm) 750x880x1450
Packing Dimensions (LxWxH) (inch) 30″x35″x58″
Net Weight 240 kgs(528 lbs)
Gross Weight 310 kgs(682 lbs)

—–

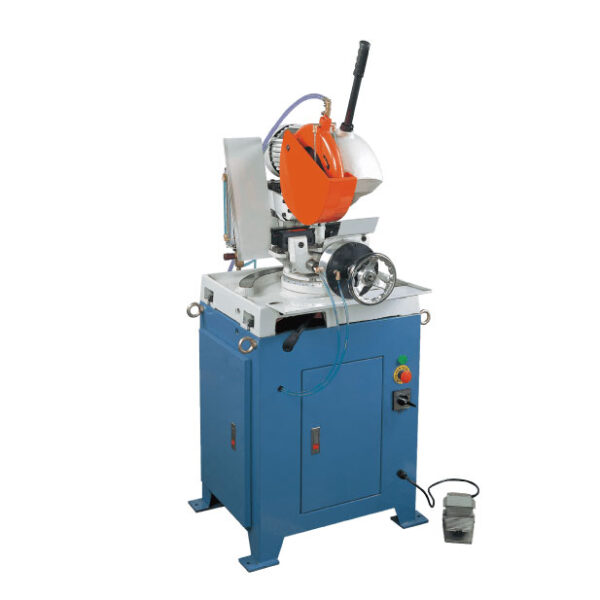

MODEL FHC-275SA (semi-automatic type)
-Automatic pneumatic double clamping.
-Manual cutting feed.
-Sawblade HSS Ø250 ~ Ø275mm, Ø250mm. (standard)
-2 Speeds.
-Movable guard. (standard)
Main Drive Motor —
H Type 3.0/1.5 HP(2/4 Pole) 50/60 HZ (std.)
L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ (opt.)
Blade Speeds H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM(std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM(opt.)
Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS Ø250 – Ø275(10″-11″) Standard Ø250
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63
Air Pressure (Consumption) 6 kg/cm² (120 ? /min)
Hydraulic Pump Motor —
Operation Pressure —
Machine Dimensions (LxWxH) (mm) 1400x870x1750
Packing Dimensions (LxWxH) (mm) 750x880x1450
Packing Dimensions (LxWxH) (inch) 30″x35″x58″
Net Weight 270 kgs(594 lbs)
Gross Weight 330 kgs(726 lbs)

* The manufacturer always performs product improvements to achieve the best possible performance. All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. (Product specifications are based on the actual machines.)
