View Brochure

Description

Technical features:
– Using specific tools, it is possible to make punching, blanking and deep drawing operations
– Easy to transport
– Perfect for prototyping
– No need to use big press machines
– Horizontal presses can be used onsite
– Materials to be worked: iron, aluminum, stainless steel, copper, copper-nickel alloy, titanium, incomel
– Application fields: Metalwork, Shipyard, Fire extinguishing systems, Furniture

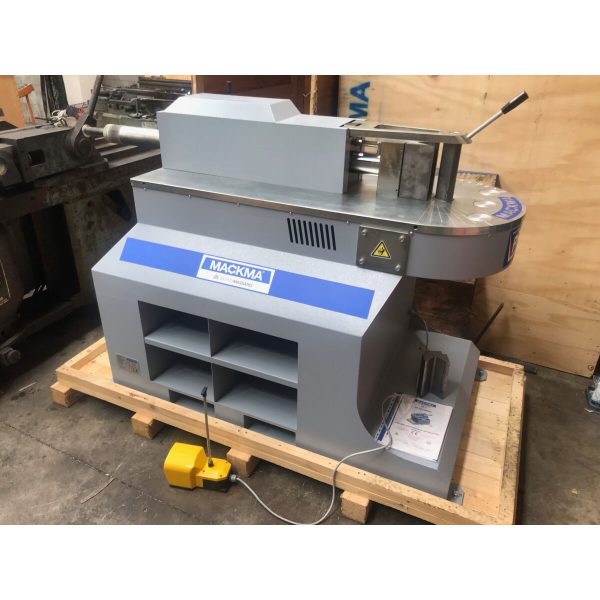

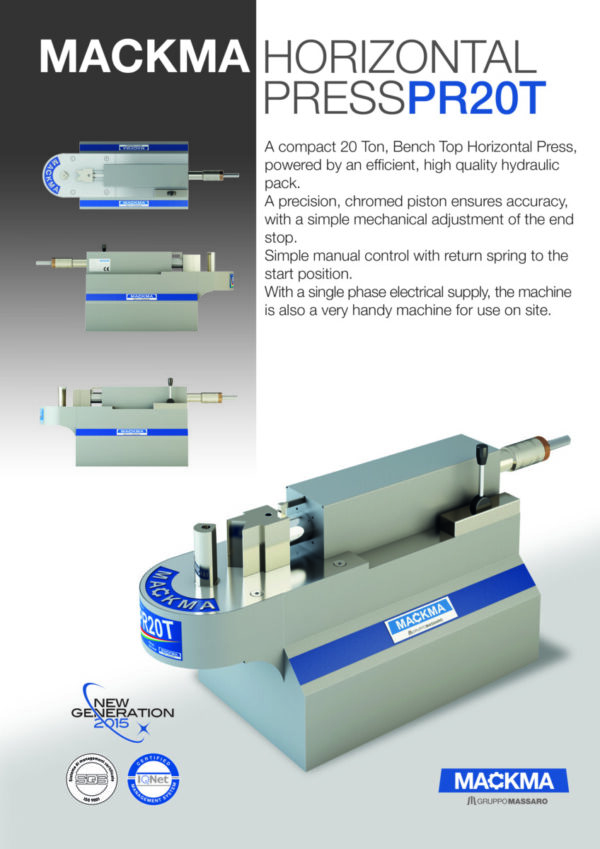

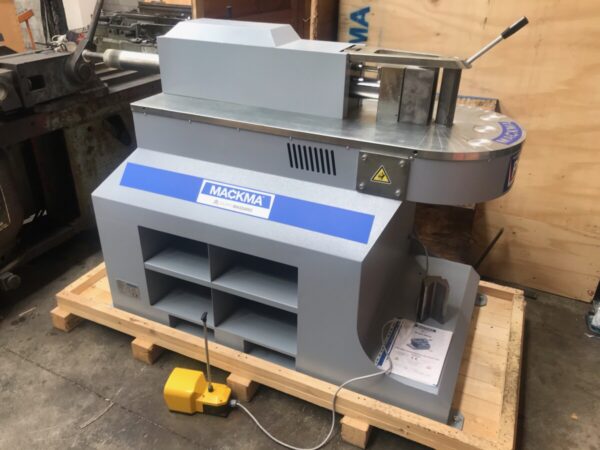

A compact 20 Ton, Bench Top Horizontal Press, powered by an efficient, high quality hydraulic pack. A precision, chromed piston ensures accuracy, with a simple mechanical adjustment of the end stop.
Simple manual control with return spring to the start position. With a single phase electrical supply, the machine is also a very handy machine for use on site.

Dimensions 2000x1400x880 mm
Weight 300 Kg
Bend Strength 20 Ton
Working height 100 mm
Bending Power 100×20 (con V:110)
Voltage 220 V ac
Motor Power 2,5 Kw
