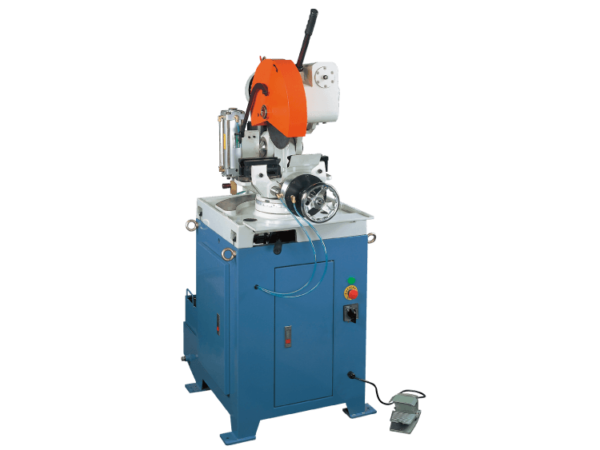

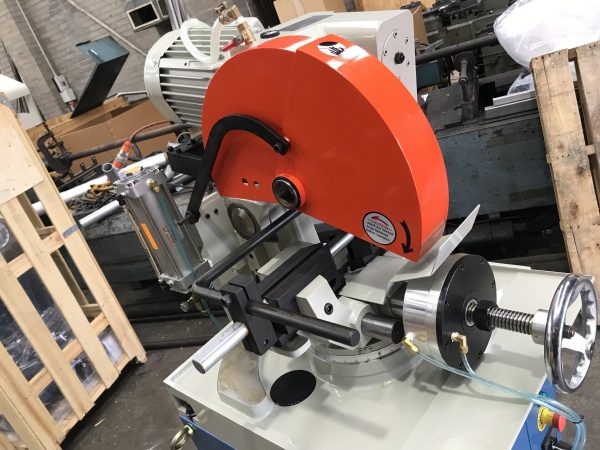

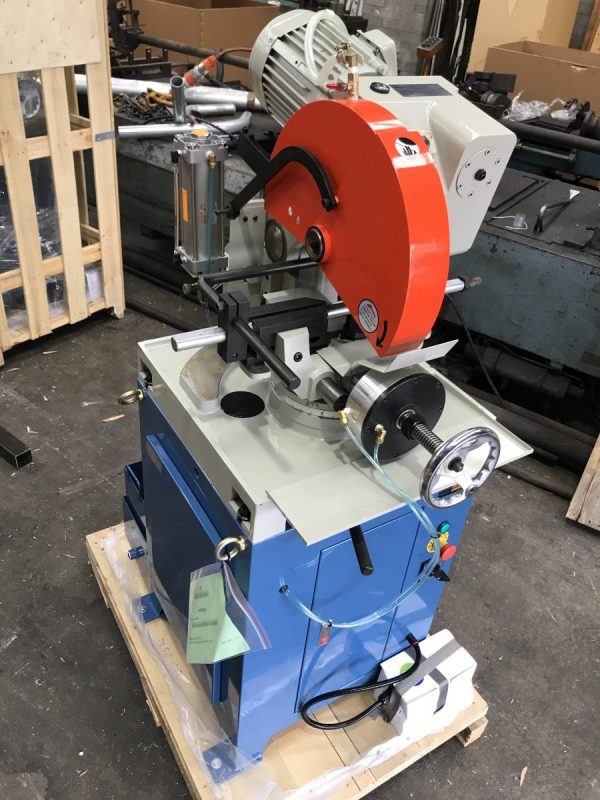

FONG HO – FHC 350SA – Circular Cold Saw

FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw
FONG HO - FHC 350SA - Circular Cold Saw

Specifications

Make

FONG HO

Model

FHC-350SA

Description

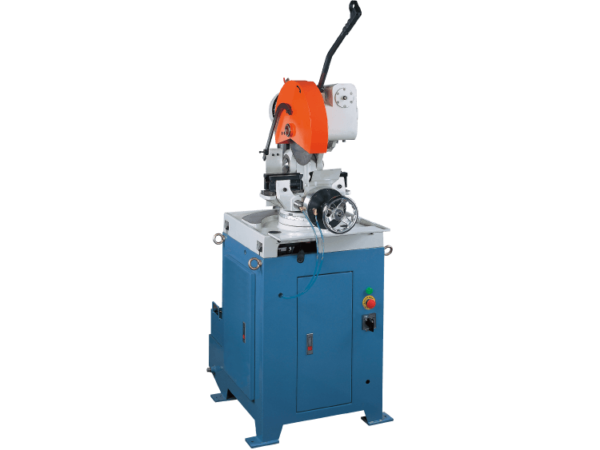

FONG HO – FHC 350SA – Circular Cold Saw (Semi Auto)

Delahenty Machinery offers 3 models in the FHC-350 Series

  • MODEL FHC-350D (manual type)
  • MODEL FHC-350P (pneumatic type)
  • MODEL FHC-350SA (semi-automatic type)  – [new, in-stock & ready for delivery]

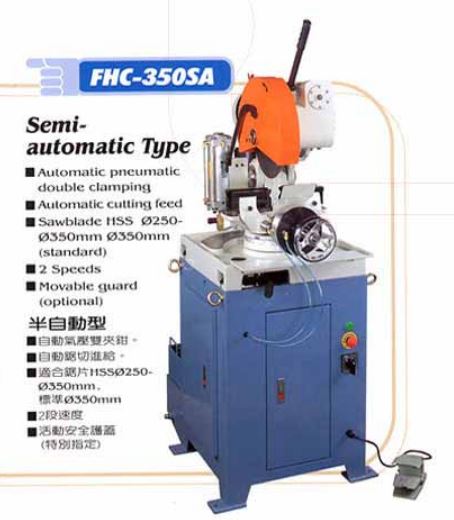

MODEL FHC-350SA (semi-automatic type)

  • Automatic pneumatic double clamping
  • Automatic cutting feed
  • Sawblade HSS Ø250 ~ Ø350mm, Ø350mm. (standard)
  • 22 Speeds

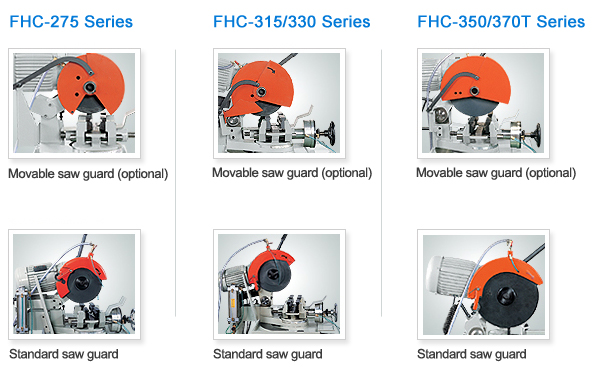

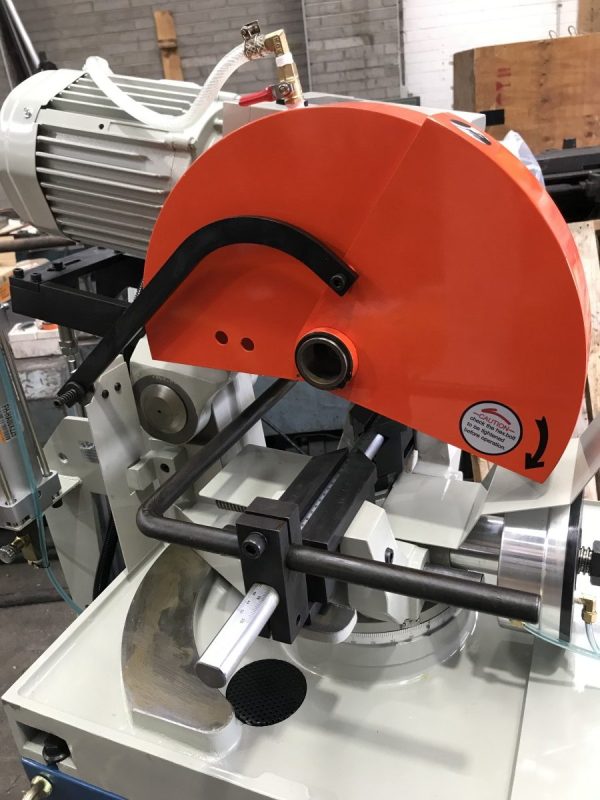

  • Movable guard. (standard)
MODELFHC-350SA

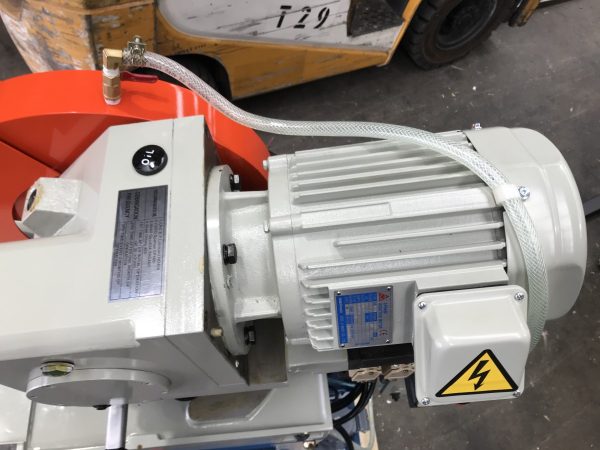

Main Drive Motor3HP/2HP (4/8 Pole) 50/60 HZ or
4HP/3HP (2/4 Pole) 50/60 HZ
Blade SpeedsL Type:50HZ 44/22 RPM, 60HZ 52/26 RPM(opt)
M Type:50HZ 58/29 RPM, 60HZ 70/35 RPM(std.)
H Type:50HZ 86/43 RPM, 60HZ 105/52 RPM(opt.)
Head Swivel90°/45°
Clamping ViseDouble
Coolant Pump Motor40W
Saw Blade SizeDiameter (mm)HSS Ø250-Ø350(10″-14″) Standard Ø350
Bore (mm)Ø32
Pin Holes (mm)2xØ11xPCD 63

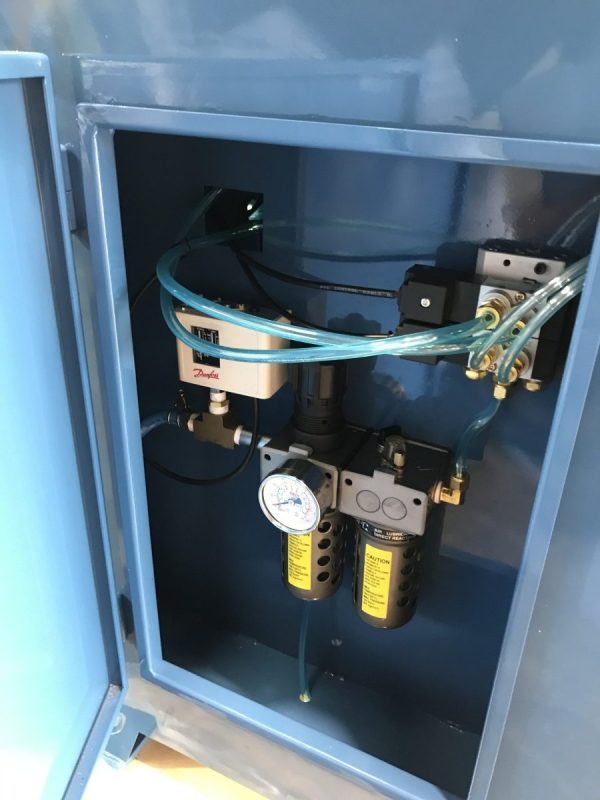

Air Pressure (Consumption)6 kg/cm²  (120 ℓ/min)
Hydraulic Pump Motor
Operation Pressure
Machine Dimensions (LxWxH) (mm)1400x1050x1900
Packing Dimensions (LxWxH) (mm)750x1060x1510
Packing Dimensions (LxWxH) (inch)30″x42″x60″
Net Weight340 kgs (748 lbs)
Gross Weight400 kgs (880 lbs)

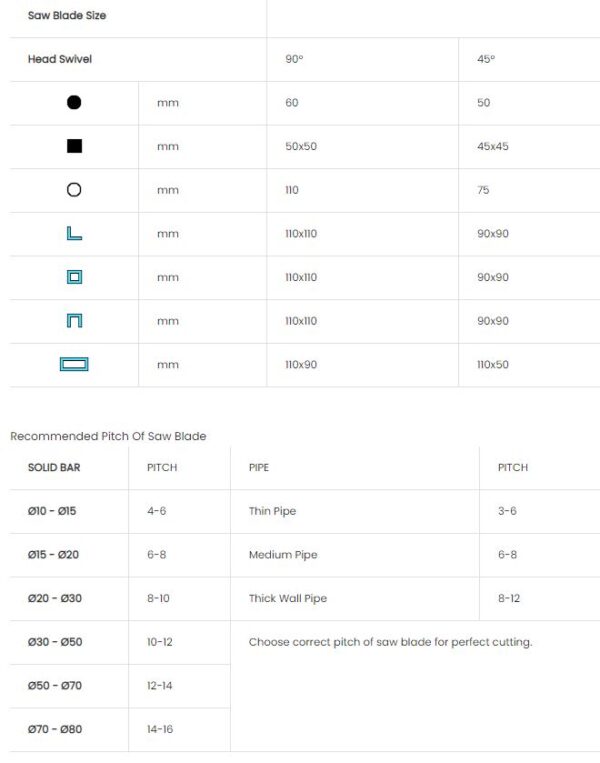

MODELFHC-350 Series
Saw Blade Size
Head Swivel90°45°
mm6050
mm50×5045×45
mm11075
mm110×11090×90
mm110×11090×90
mm110×11090×90
mm110×90110×50

Recommended Pitch Of Saw Blade

SOLID BARPITCHPIPEPITCH
Ø10 – Ø154-6Thin Pipe3-6
Ø15 – Ø206-8Medium Pipe6-8
Ø20 – Ø308-10Thick Wall Pipe8-12
Ø30 – Ø5010-12Choose correct pitch of saw blade for perfect cutting.
Ø50 – Ø7012-14
Ø70 – Ø8014-16



* The manufacturer always performs product improvements to achieve the best possible performance. All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. (Product specifications are based on the actual machines.)
