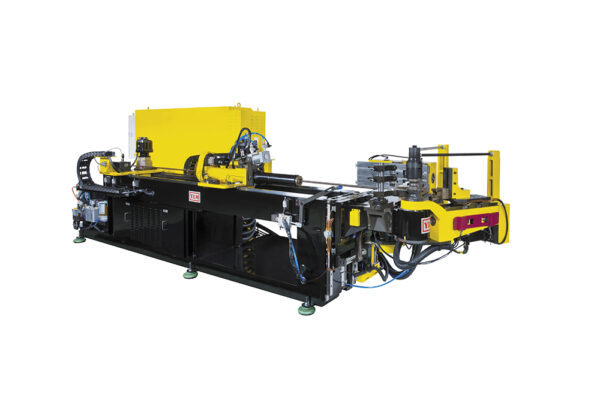

YLM – CNC Electric Tube Bender – CNC50MS-AE

YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE
YLM - CNC Electric Tube Bender - CNC50MS-AE

View Brochure

Specifications

Make

YLM

Description

The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.

Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine.

Specifications:

Model CNC50MS-AE

  • Specification 50
  • Max. Tube O.D. Bending Capacity (mm) ? 50
  • Max. Tube Wall Thickness (mm) 2.5
  • Material MILD STEEL
  • CLR 180
  • Max. Bending Radius Difference (mm) 80
  • Max. Bending Angle (°) 190
  • Mandrel Working Distance (mm) 2500

Manufacture Speed

  • Tube Feeding Speed (mm/sec) 839
  • Tube Rotation Speed (°/sec) 390
  • Tube Bending Speed (°/sec) 120

Repeatability

  • Tube Feeding Precision (mm) ± 0.1
  • Tube Rotation Precision (°) ± 0.1
  • Tube Bending Precision (°) ± 0.1
  • Overall Weight (kg) 5200
  • Operating Height (mm) 1145
  • Machine Length (mm) 5269
  • Machine Width (mm) 1676
  • Machine Height (mm) 1914

Also available in single stack options.
