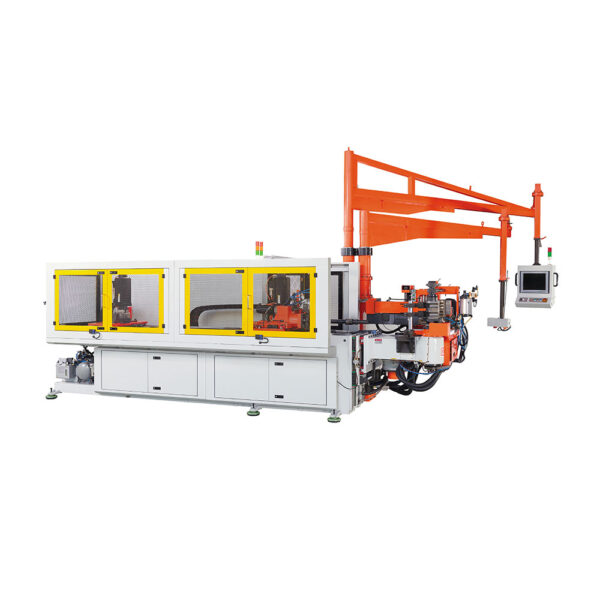

YLM – CNC Electric Tube Bender – CNC70MS-AE

YLM - CNC Electric Tube Bender - CNC70MS-AEYLM - CNC Electric Tube Bender - CNC70MS-AE
YLM - CNC Electric Tube Bender - CNC70MS-AEYLM - CNC Electric Tube Bender - CNC70MS-AE

Specifications

Make

YLM

Model

CNC70MS-AE

Description

The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.

Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine

SPECIFICATION : Model CNC70MS-AE

Max. Tube O.D. Bending Capacity (mm) φ 70

Max. Tube Wall Thickness (mm) 3

Material MILD STEEL

CLR 180

Max. Bending Radius Difference (mm) 90

Max. Bending Angle (°) 190

Mandrel Working Distance (mm) 2500



Manufacture Speed

Tube Feeding Speed (mm/sec) 1143

Tube Rotation Speed (°/sec) 1371

Tube Bending Speed (°/sec) 156.8



Repeatability

Tube Feeding Precision (mm) ± 0.1

Tube Rotation Precision (°) ± 0.1

Tube Bending Precision (°) ± 0.1



Overall Weight (kg) 5397

Operating Height (mm) 1170

Machine Length (mm) 5570

Machine Width (mm) 1637

Machine Height (mm) 1914
