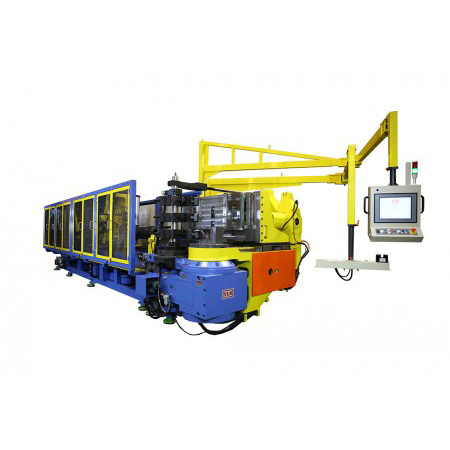

YLM – CNC Electric Tube Bender – CNC151MS-AE

YLM - CNC Electric Tube Bender - CNC151MS-AEYLM - CNC Electric Tube Bender - CNC151MS-AE
YLM - CNC Electric Tube Bender - CNC151MS-AEYLM - CNC Electric Tube Bender - CNC151MS-AE

Specifications

Make

YLM

Description

The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.

Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine

SPECIFICATION
Model CNC151-MSAE
Max. Tube O.D. Bending Capacity (mm) 150
Max. Tube Wall Thickness (mm) 5.0
CLR (mm) 370
Bending Radius Difference (mm) 150
Max. Bending Angle (°) 190
Max. Mandrel Working Distance (mm) 4000

Processing Speed
Tube Feeding Speed (mm/sec) 837
Tube Rotation Speed (mm/sec) 506
Tube Bending Speed (mm/sec) 52

Repeatability
Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (mm) ± 0.1
Tube Bending Precision (mm) ± 0.1
Overall Weight (Kgs) 17735
Machine Length (mm) 8467
Machine Width (mm) 2706
Machine Height (mm) 2198
Operation Height (mm) 1238
