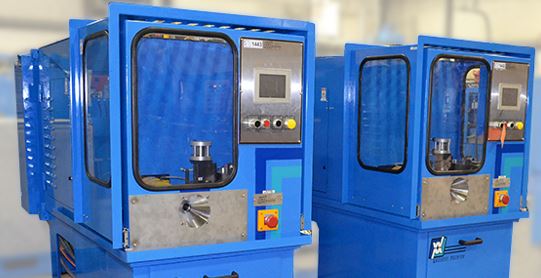

WAUSEON – 21CS-EL Electric Decoating Machine

21CS-EL Electric Decoating Machine for up to 0.375” (9.52mm) diameter tube

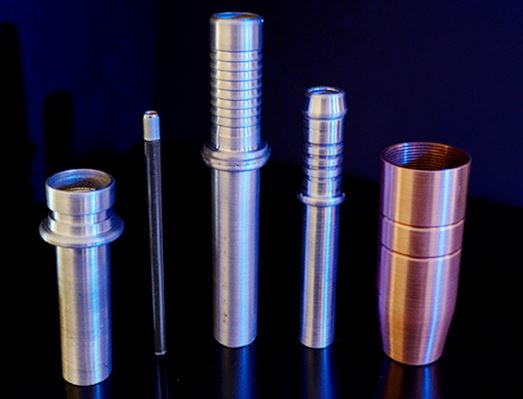

This decoating machine provides a clean, “stringer” free tube end. In addition, the coating removal head can be configured to provide a de-burring feature that eliminates the need for secondary operations after tube cut off.

Standard Features:

  • All Electric and pneumatic, Variable Speed, Independent Control of
  • Tool Close and Position, Complete Touch Panel Operation, One Pass
  • Removal of Coating, Multi-language graphical user interface (GUI),
  • Precision tube stop locator

Options:

  • Auto load/unload system, Light Curtains, Coolant system, Opti-touch cycle start (shown in photo), Footswitch cycle start, Custom specified paint color, Special voltages available

SPECIFICATIONS

  • Tool Close Force: 1 ton
  • Tool Close Cylinder: Pneumatic
  • Tube Clamp Force: 2 tons
  • Tube Clamp Cylinder: Pneumatic
  • Tool Positioning Cylinder: Servo Electric, 650 pounds of force
  • Max. Clamp Opening: 1.50”
  • Maximum Decoat Length
    – if deburr 1.375”
    – if no deburr 1.75”
  • Cycle Rate: 4 to 10 seconds80 psi, 4 cfm
  • Air Requirements: 115 VAC, 1 Phase, 60 hz FLA 18
  • Electrical Requirements:
  • Weight: 2000 lbs
  • Color: Standard Blue
